SELECT A DIAGRAM

01 - Convection Oven Parts


02 - Oven Interior Parts


03 - Oven Cavity Parts


04 - Base Plate Parts


05 - Latch Board Parts


06 - Control Panel Parts

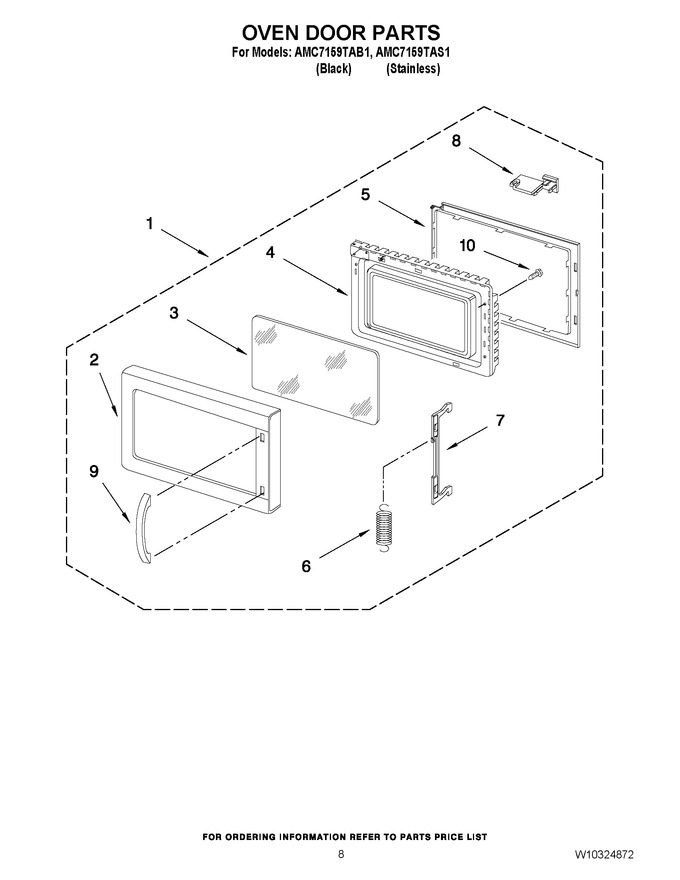

07 - Oven Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10153223		Door Assembly (black)		Appelez-nous	-
1	W10153237		Door Assembly (stainless)		Appelez-nous	-
2	W10153239		Panel, Door (stainless)		Appelez-nous	-
2	W10153195		Panel, Door (black)		Appelez-nous	-
3	W10153224		Glass		Appelez-nous	-
4	8183543		Frame, Door		Appelez-nous	-
5	8183544		Choke Cover		Appelez-nous	-
6	8183882		Spring		Appelez-nous	-
7	8171850		Latch		Appelez-nous	-
8	8171798		Cap		Appelez-nous	-
9	W10153225		Handle (black)		Appelez-nous	-
9	W10153238		Handle (stainless)		Appelez-nous	-
10	W10153236		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
