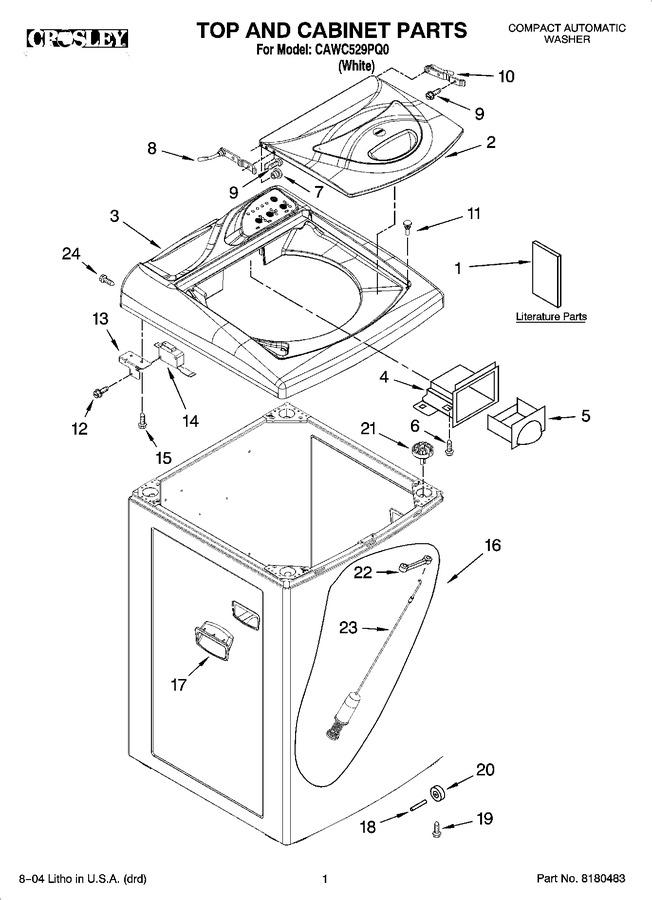

01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Transmission, Motor And Pump Parts


05 - Water System Parts, Miscellaneous Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	326038711		Wiring Diagram & Tech Sheet Assy		Appelez-nous	-
1	326035917		Use & Care Guide		Appelez-nous	-
2	326042228		Lid		Appelez-nous	-
3	326040946		Top		Appelez-nous	-
4	326033918		Housing, Dispenser				$ 71.07
5	326040949		Drawer, Dispenser				$ 12.10
6	WP3400094		Screw (2)   (Replaces: 8182293)				$ 7.14
7	326034817		Bearing, Hinge		Appelez-nous	-
8	326038394		Hinge, Lid (lh)				$ 134.19
9	326035414		Screw, Lid Hinge (4)				$ 8.32
10	326037103		Hinge, Lid (rh)				$ 56.63
11	326034790		Bumper		Appelez-nous	-
12	489392		Screw   (Replaces: 8182294)				$ 12.02
13	326036494		Bracket, Lid Switch		Appelez-nous	-
14	326033879		Switch, Lid				$ 76.37
15	326041720		Screw (2)		Appelez-nous	-
16	326040943		Cabinet (includes 17)		Appelez-nous	-
17	326033911		Handle, Cabinet		Appelez-nous	-
18	326033978		Shaft, Wheel (4)		Appelez-nous	-
19	8182295		Screw (4)		Appelez-nous	-
20	326033979		Wheel (4)		Appelez-nous	-
21	W10764578		Ball, Suspension   (Replaces: 326021005)				$ 203.37
22	326000047		Strap, Snubber				$ 6.22
23	W10764578		Rod, Suspension (4)   (Replaces: 326025313)				$ 203.37
24	WP3400094		Screw, Top To Cabinet (2)   (Replaces: 326016638)				$ 7.14
