SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts

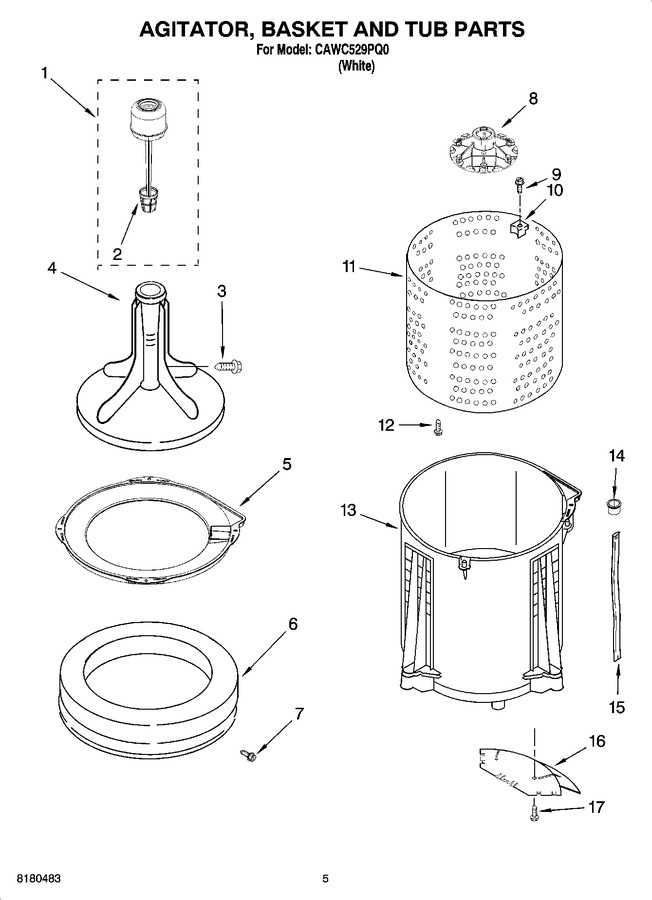

03 - Agitator, Basket And Tub Parts


04 - Transmission, Motor And Pump Parts


05 - Water System Parts, Miscellaneous Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	326018423		Fabric Softener Dispenser Assembly				$ 50.16
2	8182228		Filter, Lint				$ 41.39
3	8182296		Screw, Agitator				$ 7.64
4	WP8182227		Agitator   (Replaces: 8182227)				$ 161.48
5	326000116		Tub Ring		Appelez-nous	-
6	8182229		Balance Ring				$ 69.53
7	WP489491		Screw (4)   (Replaces: 8182298)				$ 6.26
8	8182302		Hub, Drive		Appelez-nous	-
9	8182301		Screw		Appelez-nous	-
10	8182303		Saddle Block				$ 45.16
11	8182230		Basket		Appelez-nous	-
12	8182300		Screw (6)		Appelez-nous	-
13	326033908		Tub				$ 208.57
14	326036378		Sleeve, Tub Overflow		Appelez-nous	-
15	326036377		Bag, Tub Overflow				$ 47.43
16	326033906		Shield, Tub/motor		Appelez-nous	-
17	8182292		Screw (3)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
