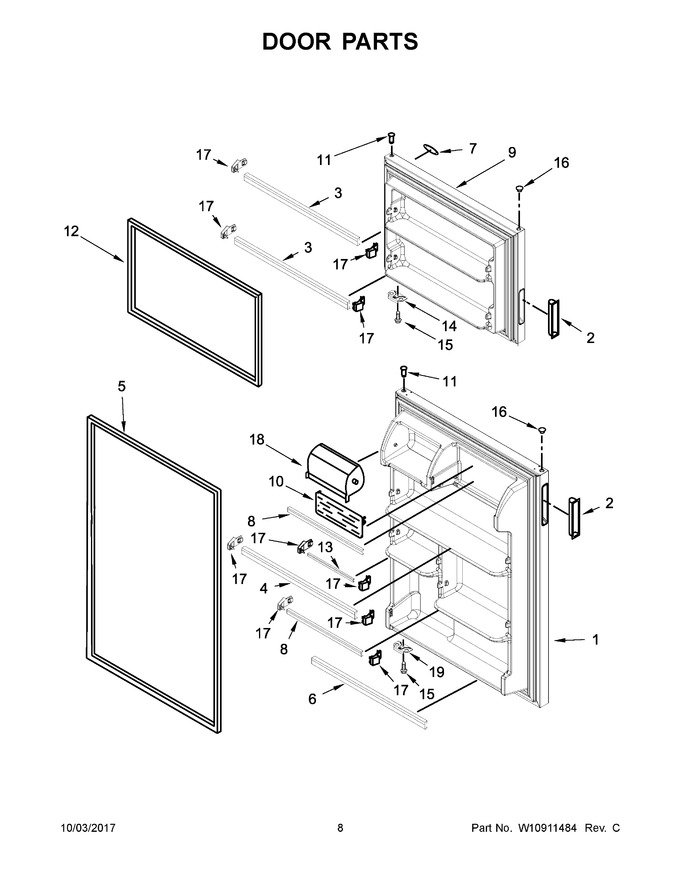

01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10680726 | Refrigerator Door (includes Door Gasket & Door Handle) (white) (Replaces: W10680726) |
|
$ 625.50 | |||||
| 2 | W10352523 | Handle, Cup (white) |
|
$ 21.60 | |||||
| 3 | W11126055 | Trim, Door (Replaces: W10719702) |
|
Immediately | $ 109.15 | ||||
| 4 | W11170805 | Trim, Door (Replaces: W10678772) |
|
$ 109.15 | |||||
| 5 | W10838574 | Door Gasket, Magnetic (white) (Replaces: W10638676) |
|
Immediately | $ 79.44 | ||||
| 6 | W11097831 | Trim, Door (Replaces: W10719703) |
|
$ 10.54 | |||||
| 7 | W10849465 | Badge (white) |
|
Immediately | $ 70.98 | ||||
| 8 | W11129820 | Trim, Door (Replaces: W10719700) |
|
Immediately | $ 109.15 | ||||
| 9 | LW10680729 | Freezer Door (includes Door Gasket & Door Handle) (white) (Replaces: W10680729) |
|
$ 592.57 | |||||
| 10 | WP2188234 | Door, Flip Up (Replaces: 2188234) |
|
Immediately | $ 51.70 | ||||
| 11 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 6.98 | |||||
| 12 | W10861499 | Door Gasket, Magnetic (white) (Replaces: W10638675) |
|
Immediately | $ 88.56 | ||||
| 13 | W11106290 | Trim, Shelf Door (Replaces: W10719701) |
|
Immediately | $ 109.15 | ||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 15 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 6.98 | ||||
| 16 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
$ 7.02 | |||||
| 17 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 11.36 | ||||
| 18 | WP2218113 | Door, Compartment (Replaces: 2218113) |
|
Immediately | $ 45.30 | ||||
| 19 | W11402852 | Bracket, Door Stop (Replaces: W10638692) |
|
$ 58.98 | |||||
| 12A | W11229610 | Door Gasket, Magnetic (black) (Replaces: W10667843) |
|
Immediately | $ 257.73 | ||||
| 16A | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 20.75 | |||||
| 16B | WP2254517 | Hole Plug (grey) (Replaces: 2254517) |
|
Immediately | $ 20.86 | ||||
| 1A | LW10680725 | Refrigerator Door (includes Door Gasket & Door Handle) (black) (Replaces: W10680725) |
|
$ 618.77 | |||||
| 1B | LW10798950 | Refrigerator Door (includes Door Gasket & Door Handle) (stainless) (Replaces: W10798950) |
|
$ 720.06 | |||||
| 2A | W10174743 | Handle, Cup (black) |
|
$ 13.65 | |||||
| 2B | W10631993 | Handle, Cup (grey) |
|
- | |||||
| 5A | W11240749 | Door Gasket, Magnetic (black) (Replaces: W10678768) |
|
Immediately | $ 257.73 | ||||
| 7A | W11788675 | Badge (black) (Replaces: W10846751) |
|
$ 26.66 | |||||
| 7B | W11240541 | Badge (stainless) (Replaces: W10846752) |
|
Immediately | $ 66.82 | ||||
| 9A | LW10680728 | Freezer Door (includes Door Gasket & Door Handle) (black) (Replaces: W10680728) |
|
$ 593.15 | |||||
| 9B | LW10798951 | Freezer Door (includes Door Gasket & Door Handle) (stainless) (Replaces: W10798951) |
|
$ 704.75 |
