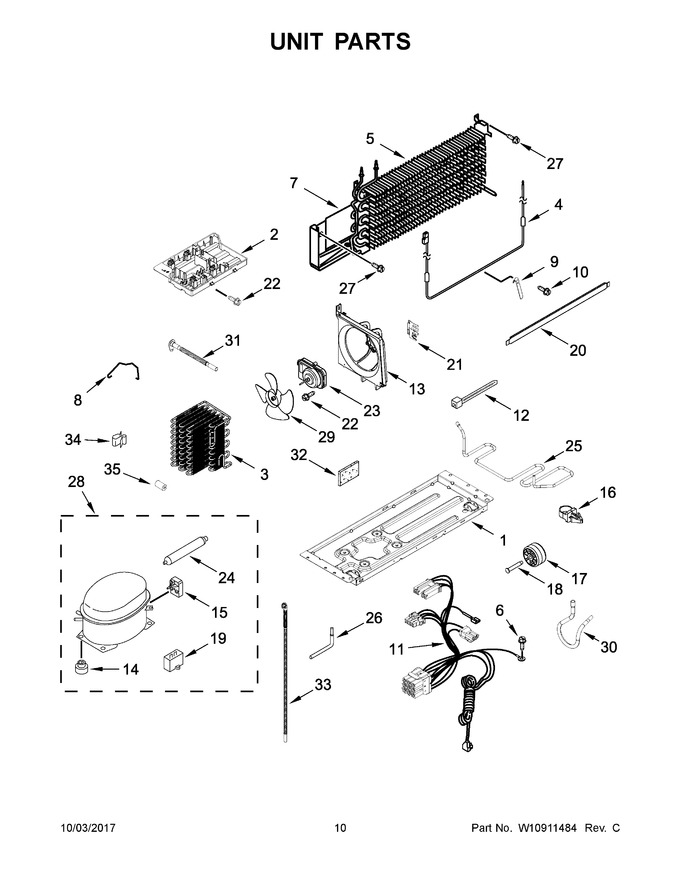

06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10624648 | Support Plate, Compressor (Replaces: W10638694) |
|
$ 87.42 | |||||
| 2 | W10633582 | Tray, Evaporator |
|
$ 80.46 | |||||
| 3 | W11803146 | Condenser (Replaces: W10633575) |
|
Immediately | $ 189.92 | ||||
| 4 | WPW10316428 | Heater, Defrost (Replaces: W10316428) |
|
Immediately | $ 221.07 | ||||
| 5 | W10836706 | Assembly, Evaporator (Replaces: W10570565) |
|
Immediately | $ 258.64 | ||||
| 6 | WP489128 | Screw (Replaces: 488500) |
|
$ 9.79 | |||||
| 7 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 86.86 | |||||
| 8 | W11092534 | Strap, Bale (Replaces: W10216075) |
|
$ 10.19 | |||||
| 9 | W11807361 | Heat Probe (Replaces: 2258429) |
|
$ 17.24 | |||||
| 10 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 11 | W11611445 | Harness, Unit (Replaces: W10637655) |
|
Immediately | $ 70.45 | ||||
| 12 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.11 | |||||
| 13 | W11736795 | Bracket, Fan (Replaces: W10633579) |
|
Immediately | $ 61.27 | ||||
| 14 | W11661108 | Grommet (Replaces: 2183042) |
|
$ 13.04 | |||||
| 15 | W11092533 | Device, Start (Replaces: W10798748) |
|
Immediately | $ 90.03 | ||||
| 16 | 2219077 | Clip, Harness |
|
$ 55.06 | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 28.85 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 16.39 | ||||
| 19 | WPW10662129 | Capacitor (Replaces: W10590083) |
|
Immediately | $ 52.97 | ||||
| 20 | W10300902 | Cover, Heater |
|
$ 25.34 | |||||
| 21 | W10314197 | Bracket, Evaporator |
|
$ 20.09 | |||||
| 22 | W10829281 | Screw (Replaces: W10622701) |
|
$ 11.39 | |||||
| 23 | W11127829 | Motor, Condenser Fan (Replaces: W10909387) |
|
Immediately | $ 166.55 | ||||
| 24 | W10843121 | Drier (Replaces: W10669573) |
|
Immediately | $ 47.31 | ||||
| 25 | W10810952 | Tube, Discharge |
|
$ 100.22 | |||||
| 26 | W11661102 | Tube, Process (Replaces: W10908782) |
|
$ 26.11 | |||||
| 27 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 28 | W11209866 | Compressor (Replaces: W10810988) |
|
Immediately | $ 334.97 | ||||
| 29 | W11193484 | Blade, Fan (Replaces: W10817071) |
|
Immediately | $ 86.99 | ||||
| 30 | W11407403 | Tube, Suction (Replaces: W10810959) |
|
$ 54.75 | |||||
| 31 | W10646247 | Extension, Drain Tube |
|
$ 22.57 | |||||
| 32 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 12.66 | ||||
| 33 | W10633573 | Tube, Drain |
|
Immediately | $ 30.16 | ||||
| 34 | W10812039 | Clip, Wire (Replaces: 2326941) |
|
$ 9.53 | |||||
| 35 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 6.93 | |||||
| NI | 978026 | Valve, Access (5/16") |
|
Immediately | $ 115.28 | ||||
| NI | SF5538 | Valve, Access (3/8") (Replaces: 978027) |
|
$ 19.48 | |||||
| NI | 978029 | Valve, Access (5/8") |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4") |
|
$ 117.64 | |||||
| NI | 876764 | Valve, Access (3/16") |
|
Immediately | $ 82.22 | ||||
| NI | WP978025 | Valve, Access (1/4") (Replaces: 978025) |
|
Immediately | $ 94.73 | ||||
| NI | N/P | Refrigerant Charge 4.2 Oz (r-134a) |
|
- |
