SELECT A DIAGRAM

01 - Cover Sheet

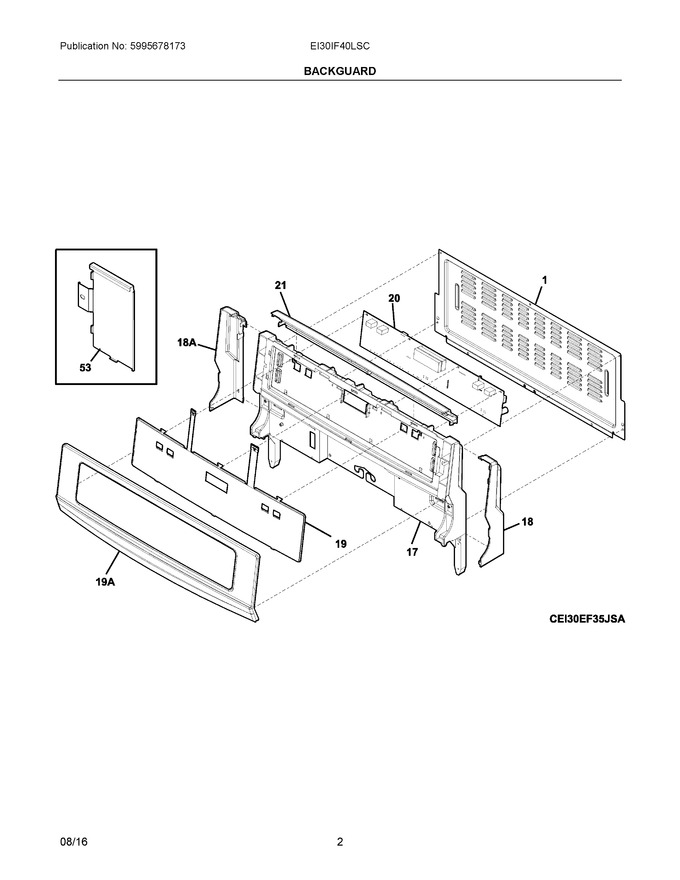

02 - Backguard


03 - Induction


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316380500		Shield, Backguard, Rear Wall		Appelez-nous	-
17	316380400		Support, Backguard, Black				$ 292.79
18	316381004		Channel, Support, Black, Rh, Backguard				$ 64.84
19	316380112		Membrane Assembly, Touch, Black, W/mtg Channel				$ 748.44
20	316380086		Controller, Electronic, Es1040				$ 592.63
21	316381401		Cap, Backguard, Black, Top				$ 118.02
53	316355000		Shield, Flue, Inner		Appelez-nous	-
18A	316381001		Channel, Support, Black, Lh, Backguard				$ 83.27
19A	316381602		Overlay, Backguard, Stainless				$ 296.36
NI	316580513		Harness, Wiring, Jumper		Appelez-nous	-
NI	807233201		Harness, Wiring, Aux, Es1040		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316533900		Screw, Truss Hd, 8-16 X 1.5, (8)				$ 12.02

    View Diagram in Separate Window       Print Part List
