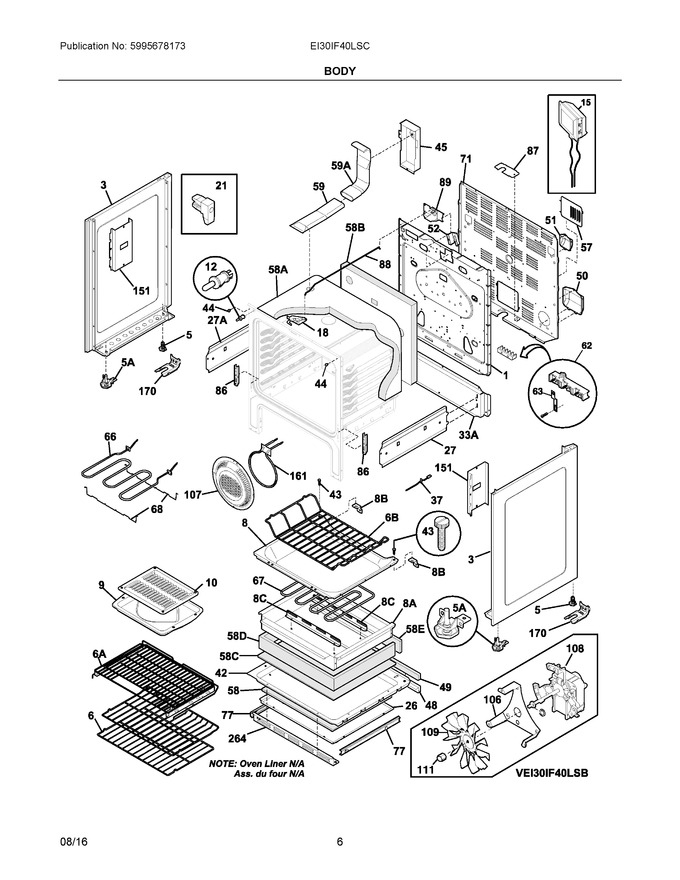

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316502006 | Back, Main |
|
- | |||||
| 3 | 316400144 | Panel, Bodyside, Black, Rh (Replaces: 316400118) |
|
Immediately | $ 134.69 | ||||
| 5 | 316272900 | Screw, Leveling, Plastic, Rear, (2) |
|
Immediately | $ 27.50 | ||||
| 6 | 316496201 | Rack, Oven (Replaces: 316496207) |
|
Immediately | $ 103.48 | ||||
| 8 | 316549602 | Bottom, Oven |
|
$ 118.21 | |||||
| 9 | 316081901 | Pan, Broiler, Cobalt Blue |
|
$ 74.32 | |||||
| 10 | 316082001 | Insert, Broiler Pan, Cobalt Blue |
|
$ 53.09 | |||||
| 12 | 316445500 | Switch, Oven Light, Door Frame |
|
Immediately | $ 54.74 | ||||
| 15 | 5304523863 | Lamp, Oven, (2), Halogen (Replaces: 316510700) |
|
Immediately | $ 69.01 | ||||
| 18 | 316405800 | Latch Assembly, Oven Door |
|
Immediately | $ 56.74 | ||||
| 21 | 316408000 | Clip, Bodyside |
|
$ 18.20 | |||||
| 26 | 316563200 | Shield, Lower, Hidden Bake |
|
$ 73.71 | |||||
| 27 | 316572300 | Shield, Warmer Side, Rh |
|
$ 27.51 | |||||
| 37 | 316490000 | Probe, Oven Temp |
|
Immediately | $ 58.30 | ||||
| 42 | 316564301 | Shield, Wool, Lower, Hidden Bake |
|
$ 112.19 | |||||
| 43 | 316282700 | Screw, W/washer, 8-18 |
|
$ 9.93 | |||||
| 44 | 316517600 | Bumper, Front, Main |
|
$ 12.05 | |||||
| 45 | 316509900 | Shield, Vent Tube |
|
- | |||||
| 48 | 316301600 | Shield, Lower |
|
- | |||||
| 49 | 316301700 | Insulation, Lower Shield |
|
- | |||||
| 50 | 316302600 | Cover, Air Inlet |
|
$ 33.18 | |||||
| 51 | 316302700 | Cover, Air Outlet |
|
- | |||||
| 52 | 316302000 | Bracket, Wiring, Crossover, Induction |
|
- | |||||
| 57 | 316457801 | Cover, Access |
|
$ 12.89 | |||||
| 58 | 316565500 | Insulation, Lower, Hidden Bake |
|
$ 69.46 | |||||
| 59 | 316208401 | Vent Tube, Assembly, W/catalyst |
|
$ 194.14 | |||||
| 62 | 5303935271 | Terminal Block Kit |
|
$ 73.56 | |||||
| 63 | 316278800 | Plate, Grounding Strap |
|
- | |||||
| 66 | 316430900 | Element, Broil, 4000w |
|
Immediately | $ 256.20 | ||||
| 67 | 316563600 | Element, Hidden Bake |
|
$ 242.67 | |||||
| 68 | 316429100 | Support, Element, Broil |
|
$ 62.51 | |||||
| 71 | 316302503 | Sheild, Rear Wall |
|
- | |||||
| 77 | 316456700 | Glide, Warmer Drawer, Outer/rh & Lh, (2) |
|
Immediately | $ 60.96 | ||||
| 86 | 316441300 | Receptacle, Hinge |
|
$ 21.97 | |||||
| 87 | 316081200 | Bracket, Cable Mtg |
|
- | |||||
| 88 | 316203500 | Rod, Auto Latch |
|
$ 72.30 | |||||
| 89 | 5304528973 | Motor-latch (Replaces: 316464300) |
|
Immediately | $ 52.34 | ||||
| 106 | 316404100 | Bracket, Motor Mtg. |
|
$ 63.70 | |||||
| 107 | 316026702 | Cover, Fan |
|
$ 67.94 | |||||
| 108 | 316256100 | Motor-fan |
|
Immediately | $ 211.18 | ||||
| 109 | 318398302 | Fan Blade |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut, Fan Retainer |
|
Immediately | $ 19.13 | ||||
| 151 | 316404601 | Shield, Bodyside |
|
$ 21.27 | |||||
| 161 | 316211603 | Element, Convection Fan, 350 W |
|
$ 255.86 | |||||
| 170 | 316112005 | Anti Tip Kit, Assy, W/template |
|
Immediately | $ 18.91 | ||||
| 264 | 316570901 | Shield, Front Frame, Black |
|
$ 25.52 | |||||
| 27A | 316572301 | Shield, Warmer Side, Lh |
|
$ 28.25 | |||||
| 33A | 316402100 | Shield, Rear Wall, Lower |
|
$ 47.30 | |||||
| 3A | 316400145 | Panel, Bodyside, Black, Lh (Replaces: 316400119) |
|
Immediately | $ 133.93 | ||||
| 58A | 316406604 | Insulation, Oven Wrapper (Replaces: 316406601) |
|
Immediately | $ 69.77 | ||||
| 58B | 316301501 | Insualtion, Oven Back |
|
$ 201.81 | |||||
| 58C | 316565400 | Insulation, Sump, Hidden Bake |
|
$ 50.19 | |||||
| 58D | 316565200 | Insulation, Front & Sides, Hidden Bake |
|
$ 35.44 | |||||
| 58E | 316565300 | Insulation, Rear, Hidden Bake |
|
$ 19.85 | |||||
| 59A | 316208304 | Tube, Oven Vent, Upper |
|
$ 80.09 | |||||
| 5A | 5304509869 | Leveling Leg Assy, Metal, Front, (2), Bracket & Leg (Replaces: 316498900) |
|
Immediately | $ 15.08 | ||||
| 6A | 316571800 | Rack Assembly, W/glides |
|
$ 290.93 | |||||
| 6B | 316575600 | Rack, Oven, Deep Sump |
|
$ 143.96 | |||||
| 8A | 316563501 | Base, Element, Hidden Bake |
|
$ 167.45 | |||||
| 8B | 316563400 | Bracket, Support, Oven Bottom, (2) |
|
$ 10.63 | |||||
| 8C | 316505801 | Support, Element |
|
$ 25.48 | |||||
| NI | 5303289910 | Screw, Truss Sqdr, 8a X 1 |
|
$ 5.67 | |||||
| NI | 316580513 | Harness, Wiring, Jumper |
|
- | |||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 316525631 | Harness, Wiring, Bake Element, Connector |
|
$ 36.86 | |||||
| NI | 316565600 | Bracket, Bake Element |
|
$ 10.61 | |||||
| NI | 5303285179 | Screw, Wafer Head, 8-32t X 0.500, Black |
|
$ 13.46 | |||||
| NI | 5304490377 | Harness, Wiring, Main |
|
- | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NIA | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NIA | 316112005 | Bracket, Anti-tip (Replaces: 316107200) |
|
Immediately | $ 18.91 | ||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 14.18 | |||||
| NIA | 5308014215 | Screw, 6-20 X 0.312 |
|
$ 2.28 | |||||
| NIB | 316205500 | Nut, Hex Flange, 3/8 10-32 |
|
$ 11.34 | |||||
| NIB | 316116000 | Screw, Concrete, 1.75", Anti-tip Brkt |
|
$ 12.89 | |||||
| NIC | 316541700 | Template, Anti-tip |
|
- | |||||
| NIC | 316542200 | Insulator |
|
- |
