01 - Cover Sheet

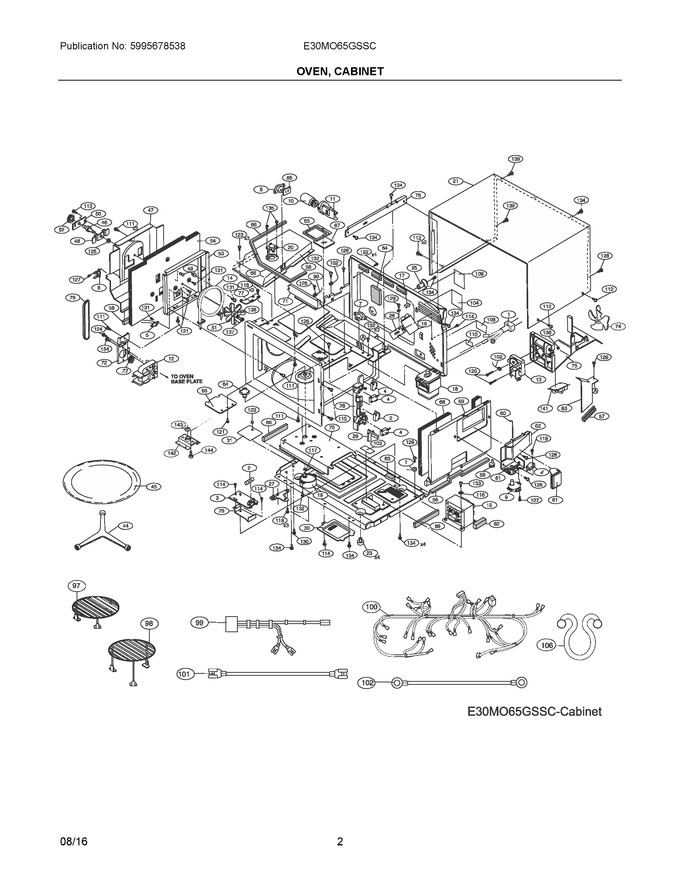

02 - Oven, Cabinet


03 - Control Panel, Door, Misc


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304461108		Power Cord, Electric		Appelez-nous	-
2	5304461109		Assembly, Fuse & Switch, Monitor				$ 125.69
3	5304537369		Filter, Noise   (Replaces: 5304507104)				$ 36.36
4	5304493153		Switch, Interlock, Door Sensor			Immediately	$ 83.38
5	5304483929		Thermistor				$ 80.80
7	5304461113		Thermal Cut-out, Magnetron				$ 47.48
8	5304461114		Thermal Cut-out, Oven, 170 C				$ 181.73
9	5304485889		Motor, Damper				$ 53.78
10	5304461116		Lamp, Oven Light			Immediately	$ 44.94
11	5303319561		Socket, Oven Lamp   (Replaces: 5304461117)				$ 61.45
12	5304461118		Motor, Convection Fan				$ 152.82
13	5304461119		Motor, Fan				$ 429.36
14	5304474695		Element, Heating, Convection		Appelez-nous	-
15	5304470538		Transformer, Power				$ 368.55
16	5304470539		Capacitor, High Voltage				$ 145.76
17	5304474696		Rectifier, High Voltage				$ 120.49
18	5304501808		Magnetron			Immediately	$ 249.71
19	5304498736		Motor, Turntable				$ 104.62
20	5304461125		Sensor Assembly, Ah				$ 150.26
21	5304507105		Cabinet, Outer Casing		Appelez-nous	-
23	5304461127		Foot, Cabinet, (4)				$ 15.54
25	5304461128		Holder, Power Cord		Appelez-nous	-
26	5304461129		Holder, Capacitor		Appelez-nous	-
27	5304461130		Hinge, Door, Lower		Appelez-nous	-
28	5304461131		Hook, Latch				$ 63.62
29	5304461132		Lever, Switch				$ 48.83
30	5304461133		Cover, Turntable Motor		Appelez-nous	-
31	5304461134		Barrier, Csa		Appelez-nous	-
44	5304501830		Support, Turntable, With Rollers				$ 122.62
45	5304518632		Tray, Turntable, Ceramic   (Replaces: 5304498731)				$ 211.21
46	5304461146		Bearing Assembly		Appelez-nous	-
47	5304461147		Plate, Thermal Protect, Lh		Appelez-nous	-
48	5304461148		Plate, Bearing Mtg		Appelez-nous	-
49	5304461149		Holder, Element		Appelez-nous	-
50	5304461150		Plate, Bearing Holder		Appelez-nous	-
51	5304461151		Fan Blade, Convection		Appelez-nous	-
52	5304471508		Pulley, Convection Fan				$ 38.28
53	5304461153		Duct Assembly, Heater		Appelez-nous	-
54	5304461154		Sheet, Thermal Protect, Lh		Appelez-nous	-
55	5304461155		Frame, Light Lens		Appelez-nous	-
56	5304461156		Cushion		Appelez-nous	-
57	5304461157		Cushion		Appelez-nous	-
58	5304461158		Duct Assembly, Steam Release		Appelez-nous	-
59	5304461159		Cam, Damper		Appelez-nous	-
60	5304461160		Shaft, Damper		Appelez-nous	-
61	5304461161		Door Assembly, Damper				$ 73.71
62	5304461162		Duct, Damper		Appelez-nous	-
63	5304461163		Cushion		Appelez-nous	-
64	5304480644		Coupling, Turntable				$ 138.80
65	5304461165		Cover, Waveguide				$ 232.99
66	5304461166		Cushion, (4)		Appelez-nous	-
67	5304461167		Lens, Light		Appelez-nous	-
68	5304461168		Sheet, Thermal Protect, Rh		Appelez-nous	-
69	5304461169		Plate, Thermal Protect, Rh		Appelez-nous	-
70	5304507109		Guide, Air, Bottom		Appelez-nous	-
71	5304461171		Guide, Air, Rh		Appelez-nous	-
72	5304461172		Plate, Motor Mtg, Convection		Appelez-nous	-
73	5304461152		Pulley, Motor, Convection Fan				$ 38.28
74	5304461173		Blade, Fan				$ 44.65
75	5304461174		Duct, Cooling Fan		Appelez-nous	-
76	5304461175		Support, Chassis		Appelez-nous	-
77	5304461176		Hinge, Door, Upper		Appelez-nous	-
78	5304461177		Belt, Convection Fan				$ 84.34
79	5304461178		Bracket, Noise Filter, Angle		Appelez-nous	-
81	5304461179		Cushion, Damper Duct		Appelez-nous	-
82	5304461180		Cushion		Appelez-nous	-
83	5304461181		Guide, Air, Magnetron		Appelez-nous	-
84	5304461182		Sheet, Thermal, Protection		Appelez-nous	-
85	5304461183		Cover, Thermal Sheet, Panel		Appelez-nous	-
97	5304498741		Rack Assembly, Broiling Trivet, Low		Appelez-nous	-
98	5304498742		Rack Assembly, Baking, High		Appelez-nous	-
99	5304461196		Wiring Harness, Thermistor		Appelez-nous	-
100	5304507110		Wiring Harness, Main		Appelez-nous	-
101	5304461198		Wire, High Voltage, B		Appelez-nous	-
102	5304461199		Wire, Ground, Cooling Fan				$ 25.52
103	5304461200		Label, Monitor Caution		Appelez-nous	-
104	5304465314		Label, Nhw Caution		Appelez-nous	-
106	5304451529		Clip, Wire Harness, Plastic, Ll		Appelez-nous	-
108	5304451535		Label, Height Caution		Appelez-nous	-
109	5304467770		Label, Caution-dhhs		Appelez-nous	-
110	5304453941		Label, Caution, Ul Screw		Appelez-nous	-
111	5304461203		Screw, 4mm X 10mm, (6)		Appelez-nous	-
112	5304440340		Screw, 4mm X 12mm		Appelez-nous	-
113	5304461204		Screw, 4mm X 8mm, (2)		Appelez-nous	-
114	5304440872		Screw, 4mm X 8mm		Appelez-nous	-
115	5303319641		Screw, (2)				$ 12.76
116	5304461205		Washer, 6mm X .7mm		Appelez-nous	-
117	5304461206		Washer		Appelez-nous	-
118	5304461207		Screw, Special, (6)		Appelez-nous	-
119	5304461208		Screw, 3mm X 14mm		Appelez-nous	-
120	5304461209		Screw, 4mm X 25mm, (2)		Appelez-nous	-
121	5304461210		Screw, 4mm X 6mm, (3)		Appelez-nous	-
122	5304461211		Screw, 4mm X 8mm, (7)		Appelez-nous	-
123	5304461212		Nut, Special		Appelez-nous	-
124	5304461213		Screw, 4mm X 6mm, (2)		Appelez-nous	-
125	5304461214		Washer		Appelez-nous	-
126	5304461215		Screw, 4mm X 8mm, (2)		Appelez-nous	-
127	5304461216		Screw, 3mm X 6mm		Appelez-nous	-
128	5303319639		Screw, Wrapper, Back				$ 7.79
129	5304461217		Screw, 4mm X 8mm, (3)		Appelez-nous	-
130	5304461218		Screw, 4mm X 6mm		Appelez-nous	-
131	5304461219		Screw, 3mm X 6mm, (4)		Appelez-nous	-
132	5304461220		Screw, 4mm X 8mm, (6)				$ 9.19
133	5304461221		Screw, 6mm X 14mm, (4)		Appelez-nous	-
134	5303318767		Screw, 4mm X 12mm		Appelez-nous	-
135	5304461222		Screw, 3mm X 8mm, (2)		Appelez-nous	-
136	5304461223		Nut, 4mm X 3.2mm, (2)		Appelez-nous	-
137	5304451547		Nut, Element, 4 Mm X 3.2 Mm, (4)		Appelez-nous	-
138	5304461224		Washer, 4mm X 1mm		Appelez-nous	-
139	5304440873		Screw, Torx, Tamper Proof				$ 11.34
141	5304507112		Power Unit, Ac/dc Switching				$ 232.79
142	5304451459		Bracket, Turntable Mount		Appelez-nous	-
143	5304451470		Packing, Silicon				$ 52.05
144	5304467780		Screw, 4 Mm X 8 Mm, Tap Tight				$ 13.46
