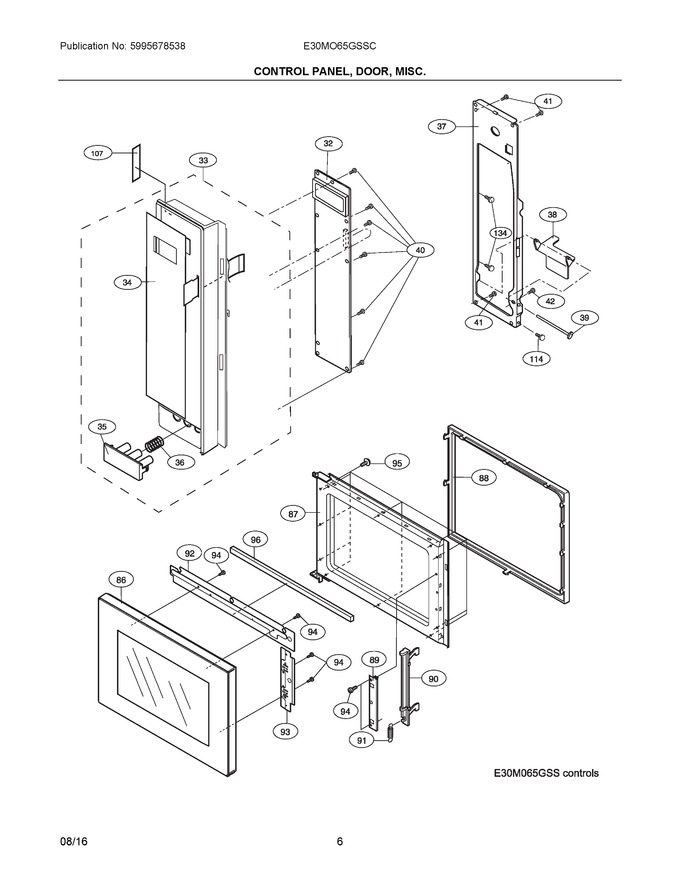

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
32	5304461135		Control Board				$ 451.11
33	5304507106		Control Assembly, W/touch Pad		Appelez-nous	-
34	5304507107		Touch Control, Key Pad		Appelez-nous	-
35	5304507108		Push Button, Door Opener		Appelez-nous	-
36	5304440831		Spring, Door Button				$ 20.29
37	5304461139		Plate, Control Panel, Back		Appelez-nous	-
38	5304461817		Lever, Door Opener				$ 32.18
39	5304461141		Shaft, Door Button		Appelez-nous	-
40	5303319584		Screw, Control Panel, 3 Mm X 10 Mm		Appelez-nous	-
41	5304461142		Screw, Back Plate Mtg, (5)		Appelez-nous	-
42	5304461143		Screw, Control Panel Mtg, (2)		Appelez-nous	-
86	5304461184		Panel, Outer Door, Black, Frame				$ 476.23
87	5304461185		Panel, Inner Door, Black		Appelez-nous	-
88	5304461186		Cover, Choke				$ 168.73
89	5304461187		Angle, Latch		Appelez-nous	-
90	5304461188		Head, Latch				$ 47.09
91	5304461189		Spring, Latch Head		Appelez-nous	-
92	5304461190		Plate, Thermal, Upper		Appelez-nous	-
93	5304461191		Plate, Thermal, Rh		Appelez-nous	-
94	5304451561		Screw, 4 Mm X 8 Mm				$ 16.63
95	5304461192		Screw, 3mm X 8mm		Appelez-nous	-
96	5304461193		Cushion		Appelez-nous	-
107	5304440346		Label, User Caution				$ 34.73
114	5304440872		Screw, 4mm X 8mm		Appelez-nous	-
134	5303318767		Screw, 4mm X 12mm		Appelez-nous	-
