Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10545337 Instructions, Installation Appelez-nous -
2 WPW10183375 Kit, Burner Cap (black)   (Replaces: W10183375) Special Order $ 132.80

3 WPW10515455 Assembly, Burner (17.5k) (left Front & Right Front)   (Replaces: W10515455) Special Order $ 101.22

4 W10366732 Cooktop (black) Appelez-nous -
5 W11026861 Panel, Manifold (stainless)   (Replaces: W10330063) Appelez-nous -
6 W11122880 Knob, Control (stainless)   (Replaces: W10862482) In-Stock Immediately $ 24.14

7 W11394363 Kit, Grate (black)   (Replaces: W10695047) Special Order $ 321.82

8 WP3368921 Screw   (Replaces: 3400701) In-Stock Immediately $ 6.42

9 WP3196557 Screw   (Replaces: 3196557) In-Stock Immediately $ 7.16

10 W11447673 Bracket, Anti-tip   (Replaces: W10306542) In-Stock Immediately $ 28.64

11 WP7101P485-60 Screw, Anti-tip Kit   (Replaces: 7101P485-60) Special Order $ 26.33

1A W10866297 Gude, Use & Care Appelez-nous -
1B W10873899 Sheet, Tech Appelez-nous -
1C 9762761 Tips, Safe Cooking (english) Appelez-nous -
1D W10065852 Tips, Safe Cooking (french) Appelez-nous -
3A WPW10515454 Assembly, Burner (9.5k) (left Rear)   (Replaces: W10515454) Special Order $ 99.21

3B WPW10515453 Assembly, Burner (6k) (right Rear)   (Replaces: W10515453) Special Order $ 85.10

NI N/P Following Parts Not Illustrated Appelez-nous -
NI W10849001 Harness, Main Special Order $ 161.78

NI W11161843 Harness, Bake/broil   (Replaces: W10753750) Special Order $ 185.62

NI W10809927 Harness, Cooktop Special Order $ 137.92

NI W10519920 Harness, Dsi Ground Special Order $ 18.05

NI 3196896 Clip, Wire Appelez-nous -
NI 16515 Clip, Harness   (Replaces: 313438) Special Order $ 17.60

NI W11244557 Screw   (Replaces: 3196173) Special Order $ 12.25

NI WP3196174 Screw   (Replaces: 3196174) In-Stock Immediately $ 7.04

NI W10334923 Clip, Gas Wiring Appelez-nous -
NI W10841090 Clamp, Wire   (Replaces: 7111P017-60) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

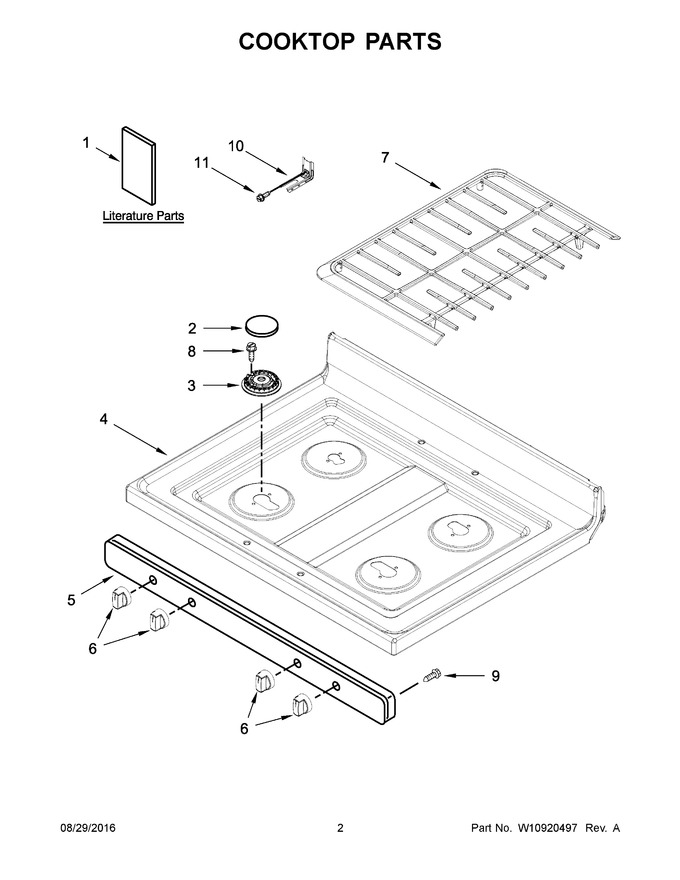

Diagram for WFG520S0FS0
