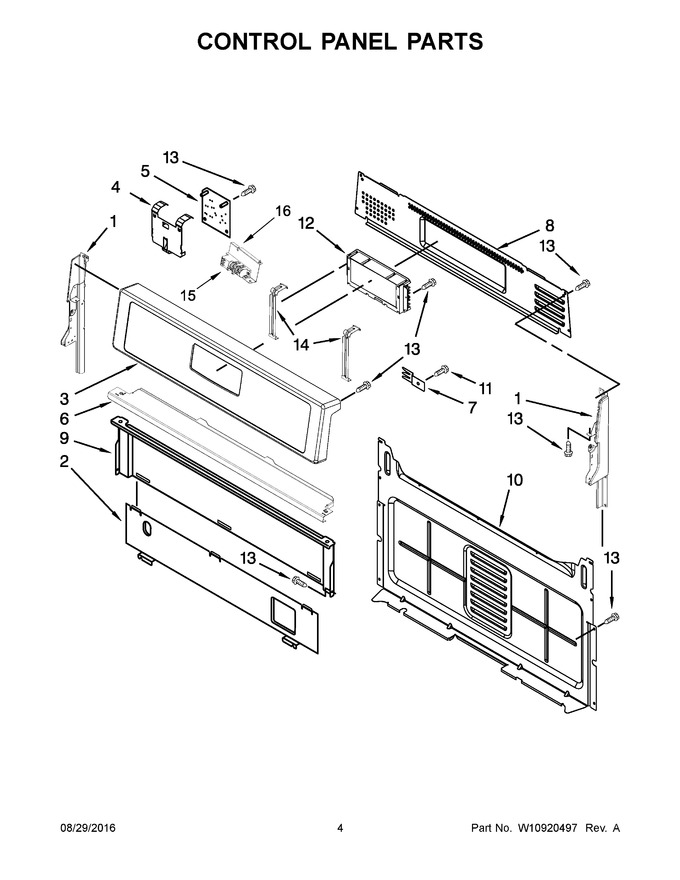

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11219664 Endcap (black (left))   (Replaces: W10184437) Special Order $ 131.85

2 8053505 Shield, Heat Special Order $ 142.19

3 W11026866 Panel, Control (stainless)   (Replaces: W10835288) Special Order $ 462.94

4 W10762981 Bracket, Mounting Special Order $ 65.50

5 WPW10511278 Module, Spark Dsi   (Replaces: W10511278) In-Stock Immediately $ 215.63

6 W10516123 Bracket, Console Mounting Appelez-nous -
7 8523412 Bracket, Rear Cooktop Special Order $ 143.91

8 W10198745 Cover, Upper Special Order $ 110.48

9 W10192841 Shield, Heat Special Order $ 91.45

10 W10184251 Cover, Back Appelez-nous -
11 WP3196557 Screw   (Replaces: 3196169) In-Stock Immediately $ 7.16

12 W11027098 Control, Range Lcc190 (stainless)   (Replaces: W10837805) Special Order $ 404.83

13 W11233072 Screw   (Replaces: 3196178) In-Stock Immediately $ 12.62

14 W11230932 Bracket, Control   (Replaces: W10695491) In-Stock Immediately $ 72.69

15 WPW10110491 Module, Spark   (Replaces: W10110488) In-Stock Immediately $ 276.35

16 W10901176 Bracket, Ignitor   (Replaces: W10797001) Appelez-nous -
1A W11219665 Endcap (black (right))   (Replaces: W10184438) Special Order $ 36.40


    View Diagram in Separate Window     Print Icon   Print Part List
