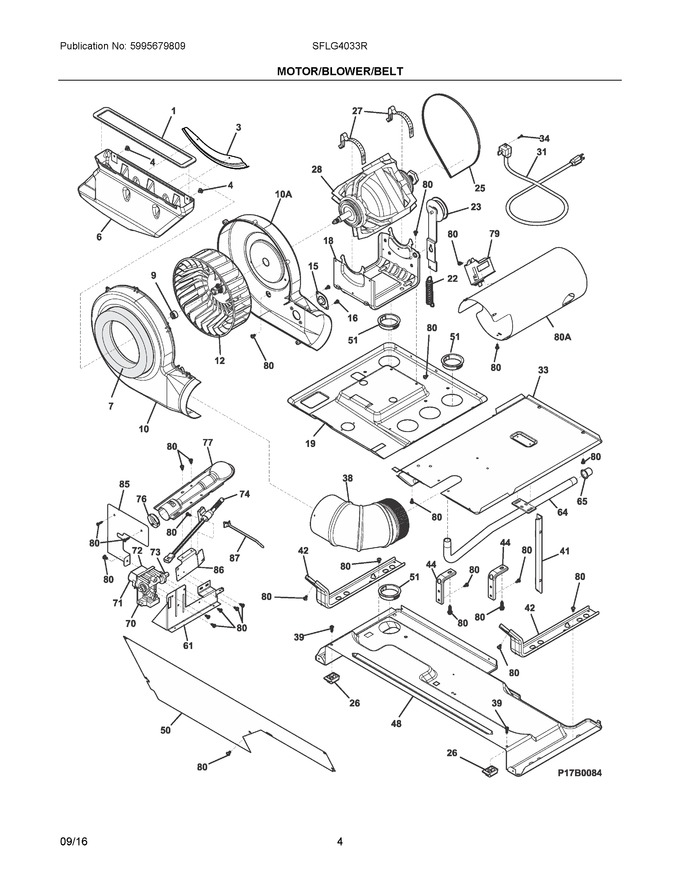

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131295200 | Seal, Air Duct |
|
$ 16.30 | |||||
| 3 | 137539100 | Shield, Air Duct |
|
$ 46.78 | |||||
| 4 | 5308014350 | Clip, End Cap Mtg, U-type |
|
- | |||||
| 6 | 5304521121 | Duct, Air (Replaces: 134086301) |
|
$ 118.56 | |||||
| 7 | 137390900 | Seal, Housing To Air |
|
$ 13.49 | |||||
| 9 | 5304488479 | Clamp |
|
Immediately | $ 32.09 | ||||
| 10 | 137551600 | Housing, Blower, Front W/seal |
|
$ 140.96 | |||||
| 12 | 131476300 | Blower Wheel |
|
Immediately | $ 47.00 | ||||
| 15 | 134587700 | Thermistor, Control |
|
Immediately | $ 56.39 | ||||
| 16 | 131243700 | Screw, Pan Head, 8-18ab X 0.375 |
|
$ 3.36 | |||||
| 18 | 131367110 | Cradle, Motor W/idler (Replaces: 131367100) |
|
$ 68.75 | |||||
| 19 | 137490900 | Pan, Upper Lc, Dryer, Formed |
|
- | |||||
| 22 | 3205241 | Spring, Idler |
|
$ 75.83 | |||||
| 23 | 5304507499 | Idler Arm Assy, W/pulley & Clip |
|
Immediately | $ 42.66 | ||||
| 25 | 137292700 | Belt, Dryer, Lc |
|
Immediately | $ 9.34 | ||||
| 26 | 137511300 | Block, Support |
|
- | |||||
| 27 | 134242400 | Clamp, Motor Mtg. |
|
Immediately | $ 35.76 | ||||
| 28 | 8581341966035 | Motor, Dryer Drive, With Pulley (Replaces: 134196600) |
|
Immediately | $ 142.51 | ||||
| 31 | 134500500 | Power Cord, Electric Svce |
|
$ 43.24 | |||||
| 33 | 131731411 | Shield-access (gas) |
|
- | |||||
| 34 | 134154100 | Screw, Hex Washer Head, 10-32 X 0.375, Ground |
|
$ 13.46 | |||||
| 38 | 5304500508 | Elbow, Exhaust Duct |
|
$ 57.54 | |||||
| 39 | 131205100 | Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive |
|
Immediately | $ 14.18 | ||||
| 41 | 131091300 | Bracket, Support, Side |
|
- | |||||
| 42 | 137304710 | Bracket, Marriage, Dryer |
|
- | |||||
| 44 | 3204326 | Bracket, L Mounting, Cabinet Rear, External |
|
$ 43.24 | |||||
| 48 | 137329110 | Pan, Bottom Lc Dryer |
|
- | |||||
| 50 | 5304488478 | Cover, Support, Lc Dryer |
|
- | |||||
| 51 | 131453000 | Bushing, Snap-in |
|
$ 10.63 | |||||
| 61 | 5303309493 | Bracket, Gas Valve Mtg |
|
- | |||||
| 64 | 140295139012 | Pipe, Gas (Replaces: 137076300) |
|
$ 43.24 | |||||
| 65 | 08015112 | Cap, Pipe |
|
- | |||||
| 70 | 134169200 | Valve, Lp Gas |
|
- | |||||
| 71 | 5300622602 | Solenoid, Secondary Coil |
|
- | |||||
| 72 | 5308015680 | Solenoid, Booster Coil |
|
- | |||||
| 73 | 5303211036 | Orifice, Natural Gas, Size 44 |
|
- | |||||
| 74 | 5304517325 | Igniter Assy (Replaces: 134393700) |
|
$ 229.55 | |||||
| 76 | 134714401 | Collar, Alignment, Gas Valve (Replaces: 134714400) |
|
$ 11.57 | |||||
| 77 | 134216601 | Burner Assy, Lp Gas |
|
- | |||||
| 79 | 5303281135 | Sensor, Radiant |
|
Immediately | $ 102.06 | ||||
| 80 | 131168200 | Screw, Pan Head, 8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| 85 | 134287300 | Shield, Heat |
|
- | |||||
| 86 | 134264800 | Plate, Adapter |
|
- | |||||
| 87 | 5304528020 | Cable Tie, Push Mount, 5.20 Inch (Replaces: 131964400) |
|
$ 9.41 | |||||
| 10A | 137551800 | Housing, Blower, Rear |
|
Immediately | $ 107.00 | ||||
| 80A | 131712405 | Tube, Burner (Replaces: 131712401) |
|
$ 34.70 | |||||
| NIA | 131168200 | Screw, 10-16ab X 0.375 (Replaces: 131477000) |
|
Immediately | $ 14.18 |
