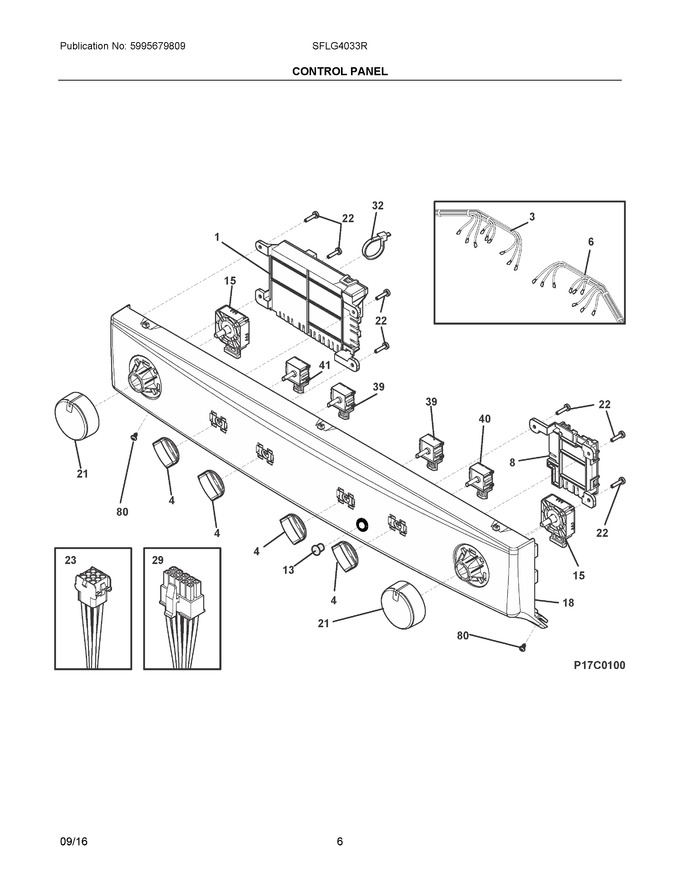

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304500455 | Board, Control, Main, W/housing |
|
$ 219.01 | |||||
| 3 | 137329400 | Wiring Harness, Dryer, Lc Upper |
|
$ 107.02 | |||||
| 4 | 5304504886 | Knob, Switch |
|
$ 68.20 | |||||
| 6 | 5304500474 | Harness, Upper Lc Washer |
|
$ 124.03 | |||||
| 8 | 5304500456 | Board, User Interface, Washer, W/housing |
|
Immediately | $ 189.97 | ||||
| 13 | 134040800 | Switch, On/off, White, Round |
|
$ 65.92 | |||||
| 15 | 137493400 | Switch, Pts Cycle Selec, 9 Pos |
|
Immediately | $ 32.38 | ||||
| 18 | 137445100 | Console, Dec, Lc |
|
- | |||||
| 21 | 5304504887 | Knob, Cycle Selector |
|
$ 74.66 | |||||
| 22 | 134402900 | Screw, Phillips, 6-19 X 0.650 |
|
$ 29.77 | |||||
| 23 | 5304500522 | Harness, Main |
|
$ 186.56 | |||||
| 29 | 137303800 | Harness, Main, Lc-d-gas |
|
- | |||||
| 32 | 5304464772 | Cable Tie, 5.60 Inch, Plastic (Replaces: 5303321209) |
|
$ 10.63 | |||||
| 39 | 137205200 | Switch, Rotary, 2 Pos |
|
Immediately | $ 43.24 | ||||
| 40 | 137052700 | Switch, Rotary, 5 Pos |
|
$ 48.20 | |||||
| 41 | 137261000 | Switch, Rotary, 4 Pos |
|
$ 102.65 | |||||
| 80 | 131205100 | Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive |
|
Immediately | $ 14.18 |
