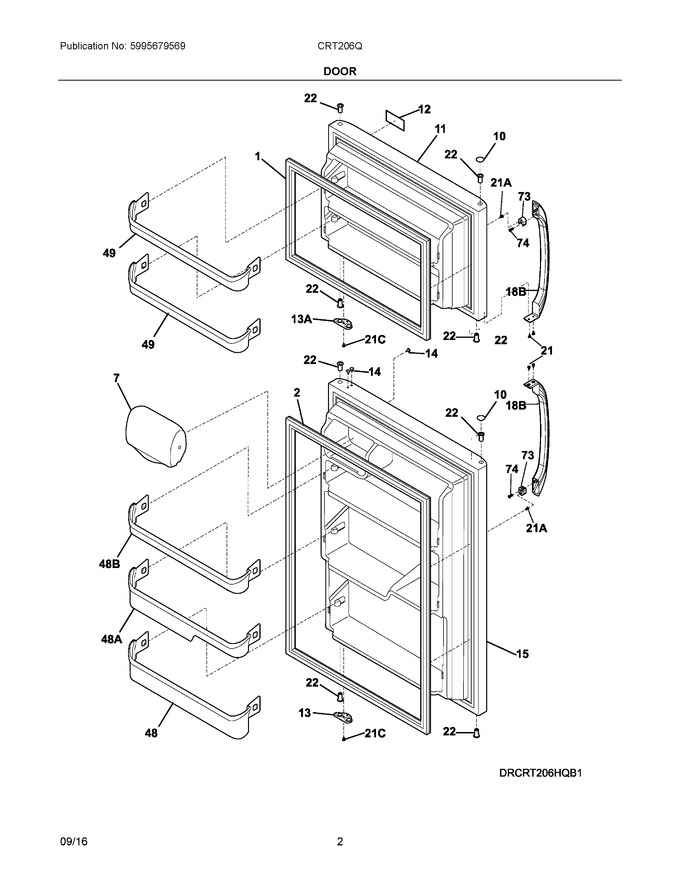

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242193211 | Gasket-frzr Door, Black, Magnetic |
|
$ 187.11 | |||||
| 2 | 242193214 | Gasket-refr Door, Black, Magnetic |
|
$ 190.85 | |||||
| 7 | 240337712 | Door-dairy, W/o Graphics, Clear (Replaces: 240337703) |
|
Immediately | $ 36.41 | ||||
| 10 | 240381303 | Plug-button, Black, Hinge Brg Hole |
|
$ 69.77 | |||||
| 11 | 241798425 | Door-frzr, Black, Complete Assy |
|
$ 412.15 | |||||
| 12 | 242115801 | Nameplate, Crosley |
|
- | |||||
| 13 | 240312422 | Door Stop, Black, Refr (Replaces: 240312405) |
|
$ 15.17 | |||||
| 14 | 240494003 | Plug-button, Black |
|
$ 18.20 | |||||
| 15 | 241798555 | Door, Refr, Black |
|
$ 557.18 | |||||
| 21 | 5304515677 | Screw, Truss Hd Quad, #10-16 X .500, Zinc (Replaces: 240383406) |
|
Immediately | $ 19.23 | ||||
| 22 | 5304507147 | Bearing-hinge, Black (Replaces: 240527102) |
|
Immediately | $ 7.59 | ||||
| 48 | 240338101 | Bin-door |
|
Immediately | $ 52.37 | ||||
| 49 | 240495804 | Bin-door, Pseudo, Frzr |
|
Immediately | $ 43.29 | ||||
| 73 | 218396701 | Block-handle Mtg, Dovetail |
|
- | |||||
| 74 | 215503203 | Screw, Cr Pan Hd, 10-16 X 0.500 |
|
Immediately | $ 7.09 | ||||
| 13A | 240312415 | Door Stop, Black, Frzr |
|
$ 21.27 | |||||
| 18B | 218428121 | Handle-door, Gray, W/block & Screw |
|
$ 57.41 | |||||
| 21A | 240521303 | Screw, #10-16 X 1/2 |
|
Immediately | $ 30.20 | ||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 48A | 240337901 | Bin-door |
|
Immediately | $ 52.13 | ||||
| 48B | 240338001 | Bin-door |
|
Immediately | $ 34.96 |
