SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet

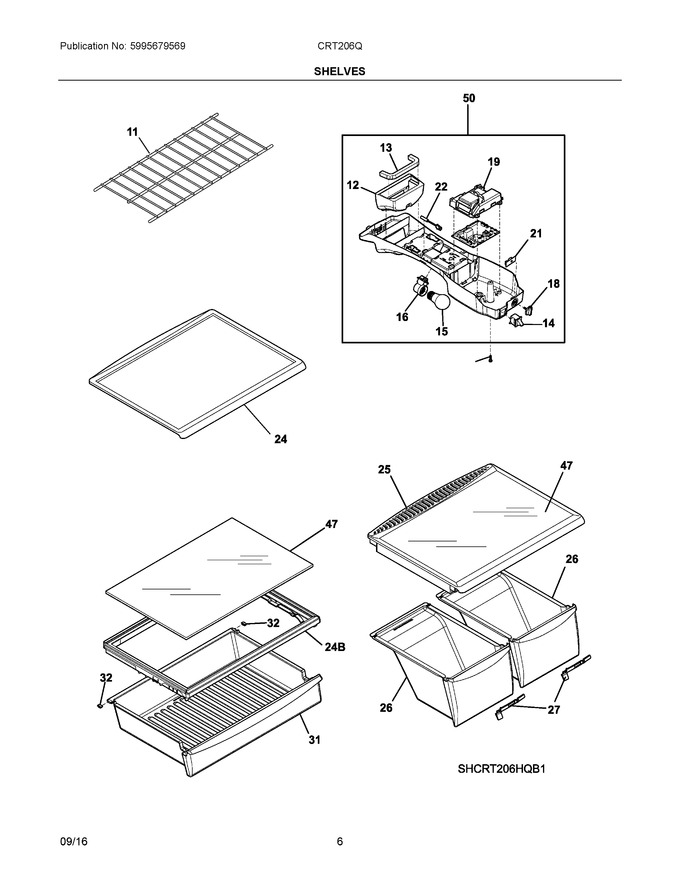

04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240358009		Shelf, Freezer				$ 82.45
12	5303918717		Diffuser, Air, Control Box   (Replaces: 5304498350)			Immediately	$ 34.89
13	242240602		Gasket, Air Diffuser			Immediately	$ 11.17
14	241554901		Switch-light/lamp				$ 70.88
15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 20.48
16	241559801		Socket, Light   (Replaces: 242081801)				$ 72.68
18	242217001		Knob, Cold Control				$ 226.00
19	5304498427		Housing, Board		Appelez-nous	-
21	5304501856		Board, User Interface, Potentiometer   (Replaces: 242231601)			Immediately	$ 766.96
22	240597220		Sensor, Temperature, 10k, Ntc   (Replaces: 240597203)			Immediately	$ 5.16
24	240358903		Shelf, Fixed, Spill Safe		Appelez-nous	-
25	242201803		Cover-crisper Pan				$ 123.17
26	242218506		Pan, Crisper, (2), W/humid Cntl   (Replaces: 242218504)				$ 119.78
27	242215901		Slide, Humidity Contrl				$ 18.95
31	242322203		Meat Pan, Fw Pantry, W/slide Clips				$ 258.92
32	240349801		Clip-slide, Pan				$ 20.48
47	240350609		Insert-pan Cover, Glass			Immediately	$ 162.30
50	5303918671		Control Box, Assembly, Complete, W/board & Harns				$ 360.66
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
24B	242205404		Cover, Deli Pan, Full Width   (Replaces: 242205402)				$ 116.03
NIA	241705801		Spacer-shelf				$ 7.09
NIA	5304498462		Shield, Heat				$ 20.48
NIB	5303299664		Spacer, Shelf				$ 24.10
NIBA	240362101		Clip-slide, Cover				$ 47.03
NIBB	241872203		Support-beam				$ 53.85

    View Diagram in Separate Window       Print Part List
