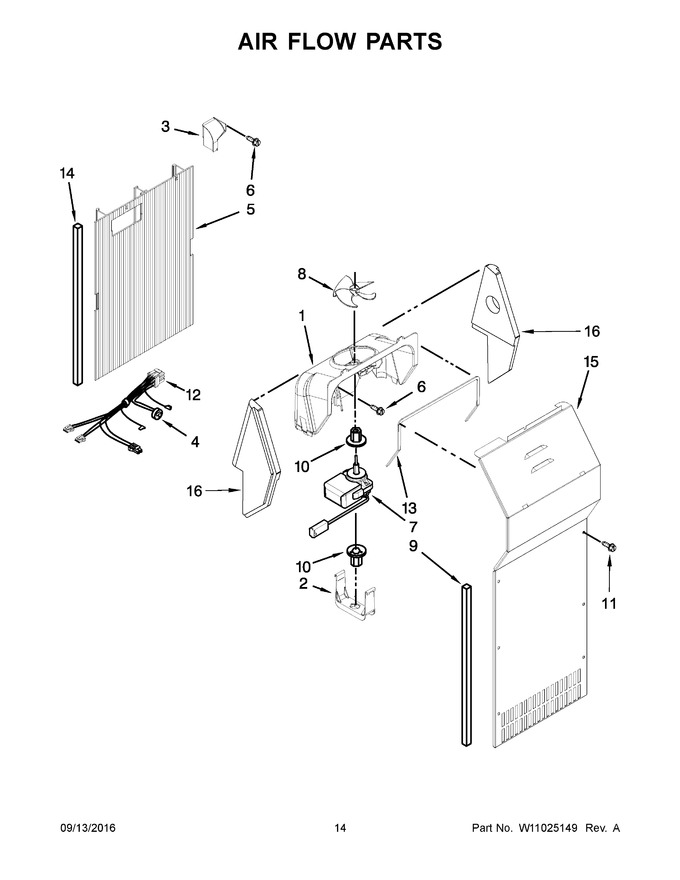

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2182120 | Scroll, Fan (Replaces: 2182120) |
|
Immediately | $ 100.77 | ||||
| 2 | W11700295 | Retainer, Fan Motor (Replaces: W10188846) |
|
$ 19.97 | |||||
| 3 | W10803597 | Scoop, Air (Replaces: 2161229) |
|
$ 73.82 | |||||
| 4 | WPW10225581 | Bi-metal, Defrost (Replaces: W10225581) |
|
Immediately | $ 45.69 | ||||
| 5 | W11755719 | Duct, Freezer Air (Replaces: 2203594) |
|
- | |||||
| 6 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 7 | W11780227 | Motor, Fan (Replaces: W10236142) |
|
Immediately | $ 127.80 | ||||
| 8 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 39.07 | ||||
| 9 | WP2304241 | Gasket (Replaces: 2304241) |
|
Immediately | $ 74.52 | ||||
| 10 | WP2176759 | Grommet, Motor (Replaces: 2176759) |
|
$ 6.99 | |||||
| 11 | WP693995 | Screw (Replaces: W10142292) |
|
Immediately | $ 6.47 | ||||
| 12 | W11225843 | Harness, Fan Tube Evaporator (includes Bi-metal Defrost) (Replaces: W10297480) |
|
$ 83.03 | |||||
| 13 | WP2155789 | Gasket (Replaces: 2155789) |
|
$ 7.01 | |||||
| 14 | 4388500 | Gasket (Replaces: 2203876) |
|
$ 81.35 | |||||
| 15 | WPW10463013 | Cover, Evaporator (Replaces: W10463013) |
|
$ 282.07 | |||||
| 16 | 4388358 | Support, Fan Scroll (left Hand) (Replaces: 2203596) |
|
$ 28.04 | |||||
| 16A | 4388358 | Support, Fan Scroll (right Hand) (Replaces: 2203595) |
|
$ 28.04 |
