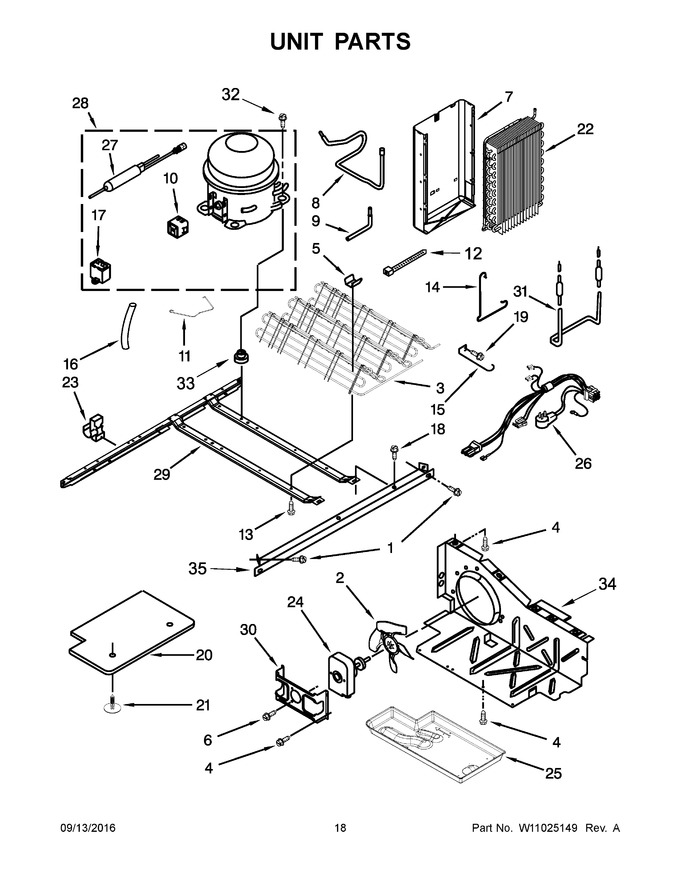

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	489340		Bolt		Appelez-nous	-
2	W10156818		Blade, Fan   (Replaces: 12825802)			Immediately	$ 55.90
3	2324712		Assembly, Condenser				$ 277.25
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.05
5	W10683556		Clip, Condenser   (Replaces: 2311725)				$ 16.61
6	WP8533993		Screw   (Replaces: 8533993)				$ 9.51
7	W10194475		Assembly, Heat Shield And Drain Pan		Appelez-nous	-
8	W10745337		Tube, Suction		Appelez-nous	-
9	2325479		Tube, Process		Appelez-nous	-
10	WPW10197428		Device, Combination Start (start Relay And Overload)   (Replaces: W10197428)			Immediately	$ 80.29
11	2212996		Strap, Bale				$ 10.90
12	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 7.11
13	W11544659		Screw   (Replaces: 8281232)				$ 12.30
14	2161324		Clip, Defrost Heater		Appelez-nous	-
15	1110663		Guard, Fan		Appelez-nous	-
16	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 18.27
17	WPW10350564		Capacitor   (Replaces: W10350564)			Immediately	$ 89.54
18	WP489427		Screw   (Replaces: 489427)				$ 6.72
19	WP489478		Screw   (Replaces: 489478)				$ 6.98
20	W10836750		Assembly, Unit Cover (bottom)				$ 83.76
21	489396		Clip				$ 9.65
22	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 326.99
23	W10812039		Clip, Wire   (Replaces: 2326941)				$ 9.53
24	WP2188874		Motor, Condenser   (Replaces: W10508362)			Immediately	$ 102.56
25	WPW10614158		Tray, Evaporator   (Replaces: W10614158)			Immediately	$ 101.86
26	W11673314		Harness, Unit   (Replaces: W10667072)				$ 90.50
27	WPW10143759		Drier   (Replaces: W10771114)			Immediately	$ 27.70
28	WPW10463858		Compressor   (Replaces: W10405532)				$ 548.10
29	W10196321		Frame, Unit Mounting		Appelez-nous	-
30	WP2181929		Bracket, Fan Mounting   (Replaces: 2181929)				$ 11.08
31	WP2323198		Heater, Defrost   (Replaces: 2188175)			Immediately	$ 81.63
32	W11417341		Screw   (Replaces: W10476309)				$ 12.06
33	WPW10169124		Grommet   (Replaces: 10835903)			Immediately	$ 6.47
34	W10332806		Baffle, Air				$ 102.82
35	W10196313		Rail, Unit Mounting		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access				$ 117.64
NI	876764		Valve, Access			Immediately	$ 82.22
NI	N/P		Refrigerant Charge 5.5 Oz (r-134a)		Appelez-nous	-
NI	WP978025		Valve, Access   (Replaces: 978025)			Immediately	$ 94.73
NI	978026		Valve, Access			Immediately	$ 115.28
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 19.48
NI	978028		Valve, Access		Appelez-nous	-
