SELECT A DIAGRAM

01 - Cover Sheet

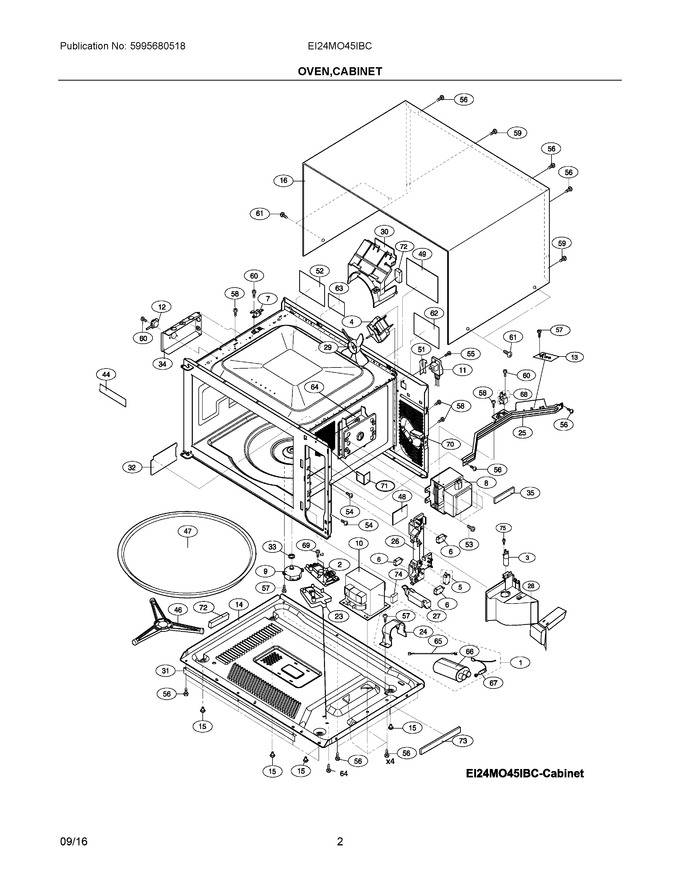

02 - Oven, Cabinet


03 - Control Panel, Door, Misc


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304478954		Capacitor/rectifier Kit, Hv				$ 155.78
2	5304507220		Power Unit, Ac/dc Switching				$ 198.90
3	5304464198		Lamp, Oven Light			Immediately	$ 39.04
4	5304493152		Motor, Cooling Fan				$ 87.43
5	5304507612		Switch, Monitor		Appelez-nous	-
6	5304493153		Switch, Interlock, Door Sensor			Immediately	$ 83.38
7	5304440780		Fuse, Cavity Temp, 20 Amp, 250 V				$ 85.76
8	5304521745		Magnetron   (Replaces: 5304472253)				$ 189.05
9	5304440021		Motor, Turntable				$ 82.64
10	5304473321		Transformer, Power				$ 253.64
11	5304478937		Power Cord, Electric				$ 68.75
12	5304440785		Sensor, Humidity, Cook Control				$ 56.18
13	5304507613		Filter, Noise, Electronic		Appelez-nous	-
14	5304478938		Base, Unit Chassis				$ 147.47
15	5304478939		Foot, Cabinet Support				$ 19.06
16	5304478940		Cabinet, Outer Casing, Black				$ 320.30
23	5304507222		Holder, Power Unit		Appelez-nous	-
24	5304478941		Retainer, Capacitor Strap		Appelez-nous	-
25	5304478942		Bracket, Chassis Support		Appelez-nous	-
26	5304503439		Latch Hook			Immediately	$ 60.62
27	5304485407		Lever, Door Release   (Replaces: 5304464899)				$ 63.36
28	5304464197		Duct, Magnetron				$ 85.30
29	5304493155		Fan Blade, Cooling Fan				$ 16.30
30	5304493156		Duct, Cooling Fan		Appelez-nous	-
31	5304478946		Filler Strip, Base Plate, Bottom		Appelez-nous	-
32	5304478947		Cover, Waveguide		Appelez-nous	-
33	5304467718		Bushing, Motor Shaft, Turntable				$ 19.14
34	5304478948		Duct, Humidity Sensor		Appelez-nous	-
35	5304493207		Cushion, Magnetron Pad		Appelez-nous	-
44	5304472255		Label, Menu		Appelez-nous	-
46	5304467717		Support Assy, Turntable, Roller				$ 122.18
47	5304529482		Tray, Turntable, Glass   (Replaces: 5304440868)				$ 108.44
48	5304468227		Label, Caution-monitor		Appelez-nous	-
49	5304507618		Label, Caution-dhhs		Appelez-nous	-
51	5304505544		Bracket, Angle, Power Cord		Appelez-nous	-
52	5304468230		Label, Hwc Caution		Appelez-nous	-
53	5304467780		Screw, 4 Mm X 8 Mm, Tap Tight				$ 13.46
54	5303319641		Screw, (2)				$ 12.76
55	5304462315		Screw, 4 Mm X 12 Mm, Ground		Appelez-nous	-
56	5304502863		Screw, 4 Mm X 8 Mm, Chromium   (Replaces: 5304451552)				$ 10.85
57	5304451550		Screw, 4 Mm X 8 Mm		Appelez-nous	-
58	5304450253		Screw, 4 Mm X 8 Mm				$ 14.89
59	5304440873		Screw, Torx, Tamper Proof				$ 11.34
60	5304467781		Screw, 3 Mm X 6 Mm				$ 9.87
61	5304467777		Screw, 4 Mm X 8 Mm, Black				$ 16.30
62	5304507619		Label, Caution, Ul Screw		Appelez-nous	-
63	5304451535		Label, Height Caution		Appelez-nous	-
64	5304505546		Screw, 4mm X 10mm		Appelez-nous	-
65	5304493157		Wire, High Voltage, B		Appelez-nous	-
66	5304487566		Capacitor, High Voltage			Immediately	$ 122.62
67	5304493150		Rectifier Assembly, Hv, W/diode				$ 26.94
68	5304507620		Fuse, Cavity Temp				$ 109.88
69	5304456930		Screw, 3 Mm X 6 Mm		Appelez-nous	-
70	5304493208		Cushion, Fan Motor		Appelez-nous	-
71	5304493209		Cushion, Cavity, Control Panel		Appelez-nous	-
72	5304478949		Cushion		Appelez-nous	-
73	5304493206		Cushion, Base Plate		Appelez-nous	-
74	5304505543		Cushion, Transformer Pad		Appelez-nous	-
75	5304474833		Screw, 4 Mm X 10 Mm, White		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
