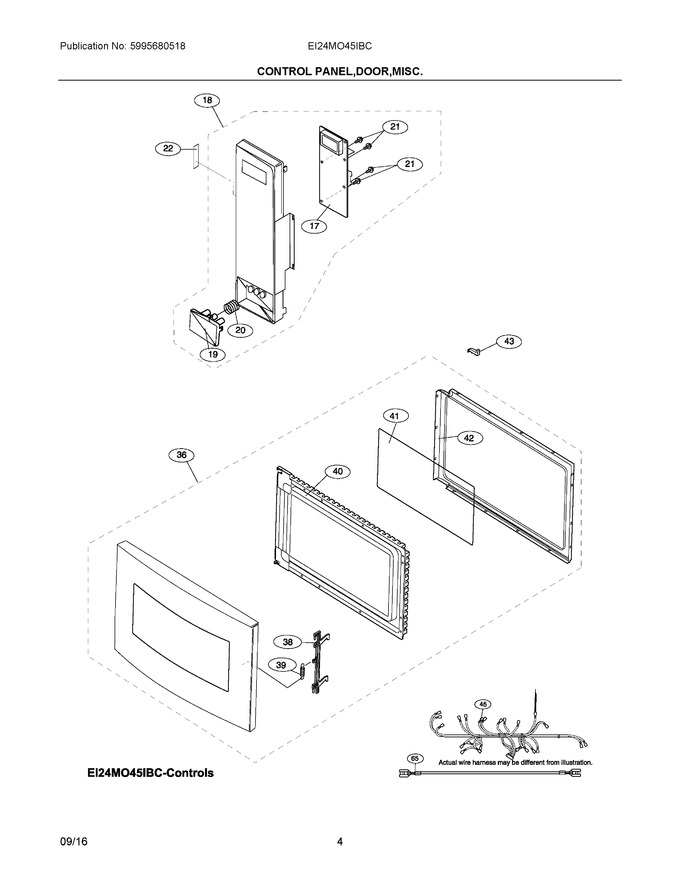

03 - Control Panel, Door, Misc


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
17	5304507614		Control Board, Printed Circuit		Appelez-nous	-
18	5304513655		Control Panel Assy, Complete   (Replaces: 5304507615)				$ 374.08
19	5304464196		Push Button, Door, Black				$ 71.59
20	5304507616		Spring, Door Button		Appelez-nous	-
21	5304456930		Screw, 3 Mm X 6 Mm		Appelez-nous	-
22	5304468232		Label, User Caution		Appelez-nous	-
36	5304472254		Door Assy, Complete, Black				$ 428.09
38	5304441893		Latch, Door			Immediately	$ 48.91
39	5304440316		Spring, Door Latch			Immediately	$ 61.00
40	5304440857		Panel, Inner Door, Black				$ 192.29
41	5304440860		Seal, Door, Film				$ 63.09
42	5304440861		Choke Cover, Inner Door				$ 73.02
43	5304442145		Door Stop		Appelez-nous	-
45	5304507617		Wiring Harness, Main		Appelez-nous	-
65	5304493157		Wire, High Voltage, B		Appelez-nous	-
