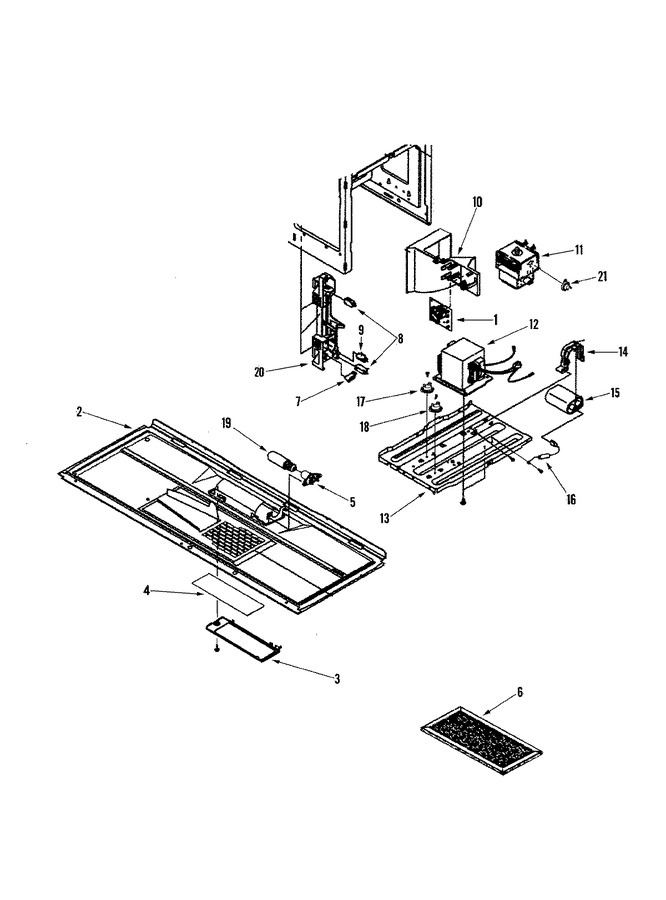

01 - Base/internal Controls
02 - Body/cavity/blower Motor
03 - Control Panel/door/vent Grille
04 - Supplemental Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE96-00400A | Assy Noise Filter;sn-uf12a,250 | 10 |
|
$ 84.88 | ||||
| 2 | DE61-00748B | Base-bottom | 10 |
|
- | ||||
| 3 | 555555 | Cover-cooktop Lamp (Replaces: DE63-00100B) | 10 |
|
$ 151.94 | ||||
| 4 | DE67-40063A | Glass-cooktop Lamp | 10 |
|
Immediately | $ 18.00 | |||
| 5 | DE47-00006A | Holder-lamp | 10 |
|
$ 17.58 | ||||
| 6 | DE63-00196A | Filter-air | 10 |
|
Immediately | $ 14.77 | |||
| 7 | DE66-90106B | Lever-switch Lower | 10 |
|
$ 17.58 | ||||
| 8 | 3405-001034 | Switch, Micro (125/250 Vac) | 10 |
|
Immediately | $ 14.85 | |||
| 9 | 3405-001033 | Switch-micro | 10 |
|
Immediately | $ 17.58 | |||
| 10 | DE61-00753A | Guide-air(a) | 10 |
|
- | ||||
| 11 | WPW10126786 | Assy-magnetron (Replaces: W10126786) | 10 |
|
$ 312.35 | ||||
| 12 | DE26-00124A | Trans Hv | 10 |
|
- | ||||
| 13 | DE96-00415E | Asy-base Plate | 10 |
|
- | ||||
| 14 | DE61-00521A | Bracket-hvc;mw8rowc,secc,t0.6, | 10 |
|
$ 2.94 | ||||
| 15 | 2501-001035 | C-oil | 10 |
|
Immediately | $ 101.91 | |||
| 16 | DE91-70063D | Diode-rectifier (Replaces: Y0402001554) | 10 |
|
Immediately | $ 15.89 | |||
| 17 | DE47-20034A | Thermostat | 10 |
|
Immediately | $ 20.09 | |||
| 18 | 555555 | Thermostat (Replaces: DE47-20196A) | 10 |
|
$ 151.94 | ||||
| 19 | 4713-001013 | Lamp-incandescent | 10 |
|
Immediately | $ 18.00 | |||
| 20 | DE96-00414A | Asy Body Latch | 10 |
|
Immediately | $ 38.81 | |||
| 21 | 555555 | Sw-thermo (Replaces: DE47-20059A) | 10 |
|
$ 151.94 |
