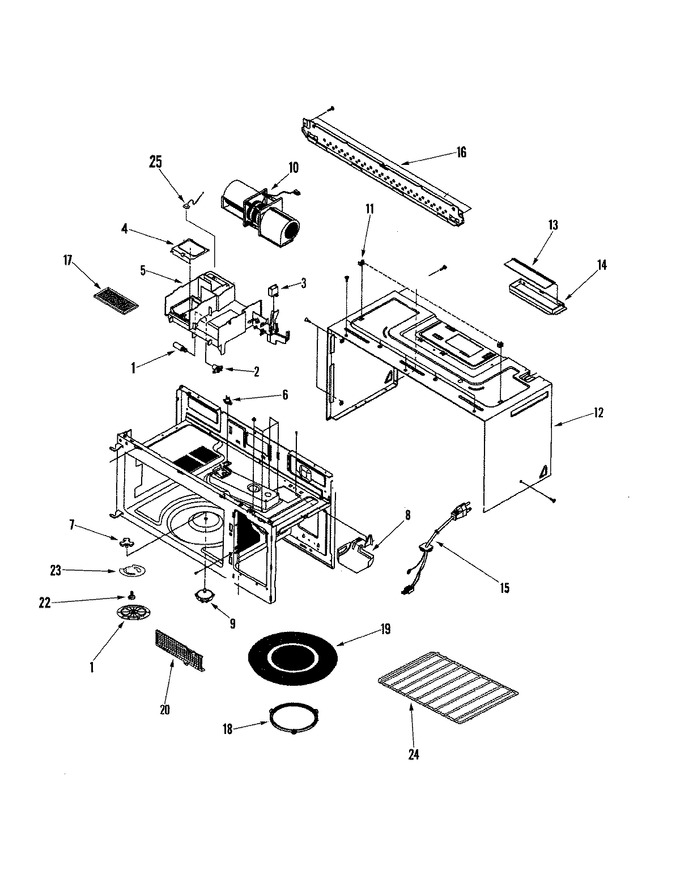

01 - Base/internal Controls
02 - Body/cavity/blower Motor
03 - Control Panel/door/vent Grille
04 - Supplemental Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4713-001013 | Lamp-incandescent | 10 |
|
Immediately | $ 18.00 | |||
| 2 | DE47-00006A | Holder-lamp | 10 |
|
$ 17.58 | ||||
| 3 | DE59-50002A | Capacitor-motor | 10 |
|
Immediately | $ 27.34 | |||
| 4 | DE61-00869A | Bracket Duct Upper | 10 |
|
- | ||||
| 5 | W10254201 | Assy, Duct Upper | 15 |
|
- | ||||
| 5 | DE97-00597A | Asy Duct-upper | 10 |
|
- | ||||
| 6 | 555555 | Thermostat (Replaces: DE47-20007A) | 10 |
|
$ 151.94 | ||||
| 7 | DE67-00180A | Coupler | 10 |
|
$ 6.95 | ||||
| 8 | DE61-00839A | Guide-air(b) | 10 |
|
- | ||||
| 9 | DE31-10104D | Motor Drive | 10 |
|
$ 36.51 | ||||
| 10 | DE31-00033C | Motor Ventilation | 10 |
|
$ 131.29 | ||||
| 10 | W10182257 | Motor Ventilation | 15 |
|
$ 38.66 | ||||
| 11 | DE92-90508A | Assy-holder Nut | 10 |
|
Immediately | $ 17.58 | |||
| 12 | DE64-01429A | Panel-outer (blk) | 10 |
|
$ 179.17 | ||||
| 13 | DE71-60051A | Cover-damper | 10 |
|
$ 23.29 | ||||
| 14 | DE72-40022A | Damper-main | 10 |
|
Immediately | $ 12.07 | |||
| 15 | DE96-00218A | Assy-power Cord | 10 |
|
$ 78.75 | ||||
| 16 | 555555 | Plate-mounting (Replaces: DE70-00378A) | 10 |
|
$ 151.94 | ||||
| 17 | 555555 | Filter-charcoal (Replaces: DE63-00367E) | 10 |
|
$ 151.94 | ||||
| 18 | DE99-00355B | Asy-guide Roller | 10 |
|
$ 25.99 | ||||
| 19 | DE74-20015G | Tray, Cooking | 10 |
|
$ 86.37 | ||||
| 20 | DE63-00328A | Cover-front | 10 |
|
- | ||||
| 21 | DE66-20095B | Button-lock | 10 |
|
$ 17.58 | ||||
| 21 | DE71-60121A | Cover-stirrer | 10 |
|
$ 16.82 | ||||
| 22 | DE61-00160A | Holder-stirred | 10 |
|
- | ||||
| 23 | DE66-00178A | Blade Stirrer | 10 |
|
$ 18.00 | ||||
| 24 | DE75-00051A | Rack-wire | 10 |
|
$ 105.35 | ||||
| 24 | DE61-00375A | Holder-rack | 10 |
|
$ 17.58 | ||||
| 25 | DE97-00585A | Assy-sensor Humidity;smh7175we | 10 |
|
$ 9.25 | ||||
| 25 | DE32-60011A | Sensor-gas | 15 |
|
Immediately | $ 86.27 | |||
| 25 | DE61-90111A | Holder-sensor | 15 |
|
$ 0.88 | ||||
| 25 | DE39-40678A | Main Harness | 15 |
|
$ 29.11 |
