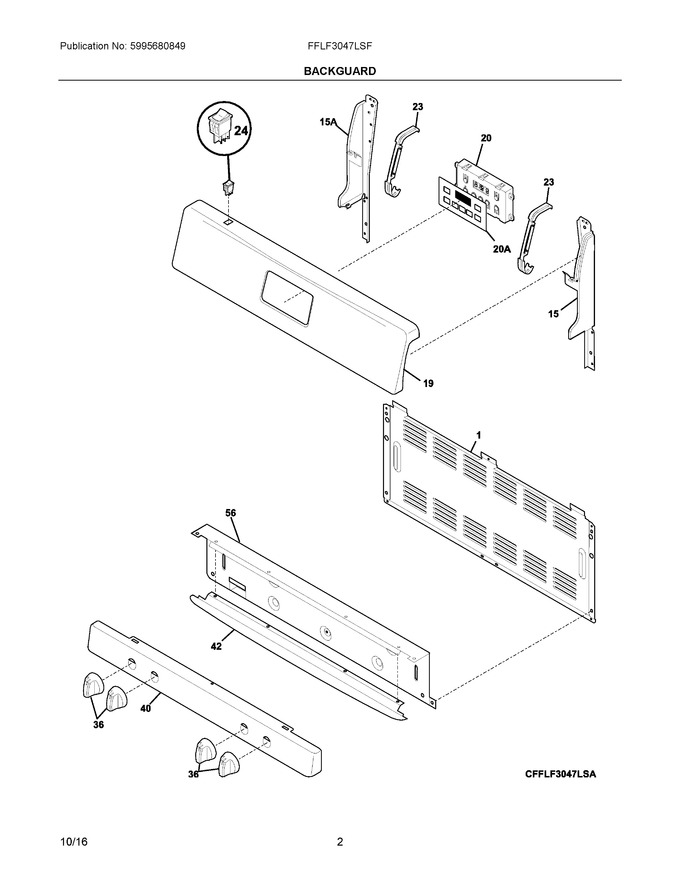

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall   (Replaces: 316281800)				$ 57.64
15	316411405		Support, Backguard, Black, Rh				$ 83.95
19	316456527		Panel, Backguard, Black/stainless, W/overlay		Appelez-nous	-
20	5304518661		Clock/timer, Electronic, Es100   (Replaces: 316455410)			Immediately	$ 148.07
23	316441600		Bracket-clock Mtg, Black				$ 20.48
24	5304527841		Switch, Rocker, Black, Oven Light   (Replaces: 316448700)			Immediately	$ 11.38
36	316543907		Knob, Top Valve, Black, (3)				$ 56.70
40	316561936		Panel, Manifold, Black		Appelez-nous	-
42	316416204		Trim, Extrusion, Black   (Replaces: 316416200)				$ 43.99
56	316230705		Shield, Backguard, Inner		Appelez-nous	-
15A	316411404		Support, Backguard, Black, Lh				$ 83.95
20A	316220729		Overlay, Clock, Black   (Replaces: 316220725)			Immediately	$ 26.93
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
