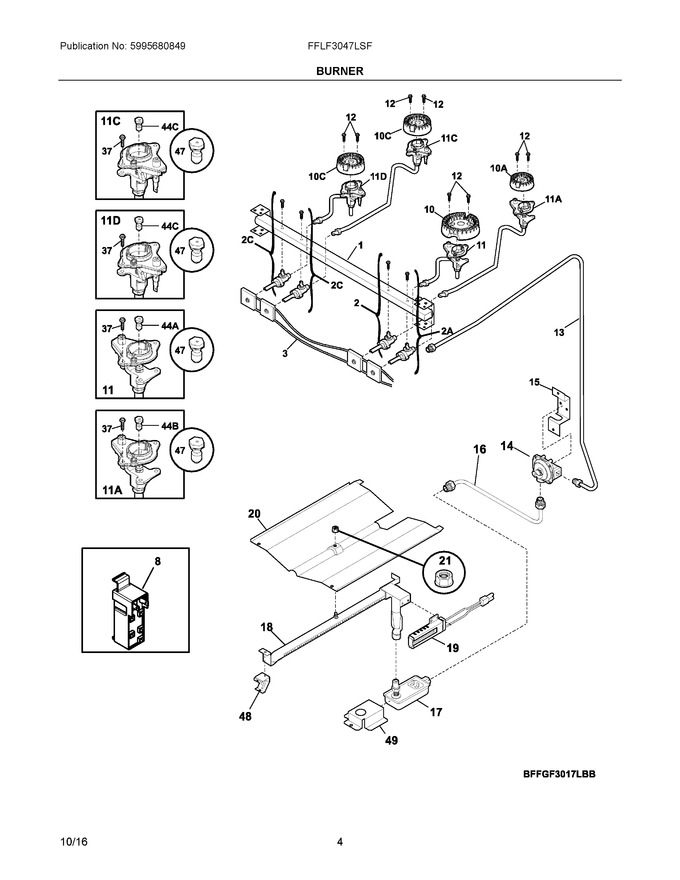

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316417900		Manifold Pipe				$ 146.71
2	5304506554		Valve, Burner, 10k		Appelez-nous	-
3	5304506555		Harness, Ignition				$ 78.52
8	808608802		Spark Module			Immediately	$ 82.93
10	316438000		Burner, Sealed, 12k				$ 67.81
11	316536609		Ignitor/orifice Assy., Top Burner, Right Front, 12k, W/holder, Tube		Appelez-nous	-
12	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 15.17
13	316545800		Tube, 3/8, Aluminum, Rgltr To Manf, With Fittings		Appelez-nous	-
14	5304503230		Regulator		Appelez-nous	-
15	316091600		Bracket, Regulator				$ 73.56
16	316065006		Tube, Valve To Regul, 3/8				$ 122.09
17	3203459		Valve, Safety				$ 303.64
18	316114300		Burner, Oven				$ 169.88
19	5304509706		Ignitor   (Replaces: 316489408)			Immediately	$ 189.59
20	316496001		Baffle, Oven Burner				$ 78.33
21	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.41
37	316240600		Screw, Assy Mtg, (8), Ignitor/orifice			Immediately	$ 12.13
47	GRLP4		Lp Conversion Kit, W/instructions			Immediately	$ 56.70
48	3018603		Bracket, Support, Oven Burner		Appelez-nous	-
49	316416300		Bracket, Safety Valve		Appelez-nous	-
10A	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
10C	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
11A	316536611		Ignitor/orifice Assy., Top Burner, Right Rear, 5k, Lp Gas, W/holder, Tube				$ 101.50
11C	316536604		Ignitor/orifice Assy., Top Burner, Left Rear, 9.5k, W/holder, Tube				$ 105.84
11D	316536606		Ignitor/orifice Assy., Top Burner, 9.5k, Lp Gas, W/holder, Tube		Appelez-nous	-
2A	5304506552		Valve, 4.5 Lp, Burner		Appelez-nous	-
2C	5304506553		Valve, Burner, 8k		Appelez-nous	-
44A	316527503		Orifice, Top Burner, 12k		Appelez-nous	-
44B	316527505		Orifice, Top Burner, 5k, Lp				$ 12.89
44C	316527501		Orifice, Top Burner, 9.5k				$ 18.43
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316257400		Bracket, Spark Module				$ 15.17
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303271648		Screw, Wafer Hd Sq Dr, 8-18ab X 0.5			Immediately	$ 13.46
NI	5304535516		Harness-ignitor   (Replaces: 316580601)				$ 68.28
NIA	316021104		Screw, Hex, 8-18 X 3/8, Nick, (3), Regulator Brkt				$ 7.79
