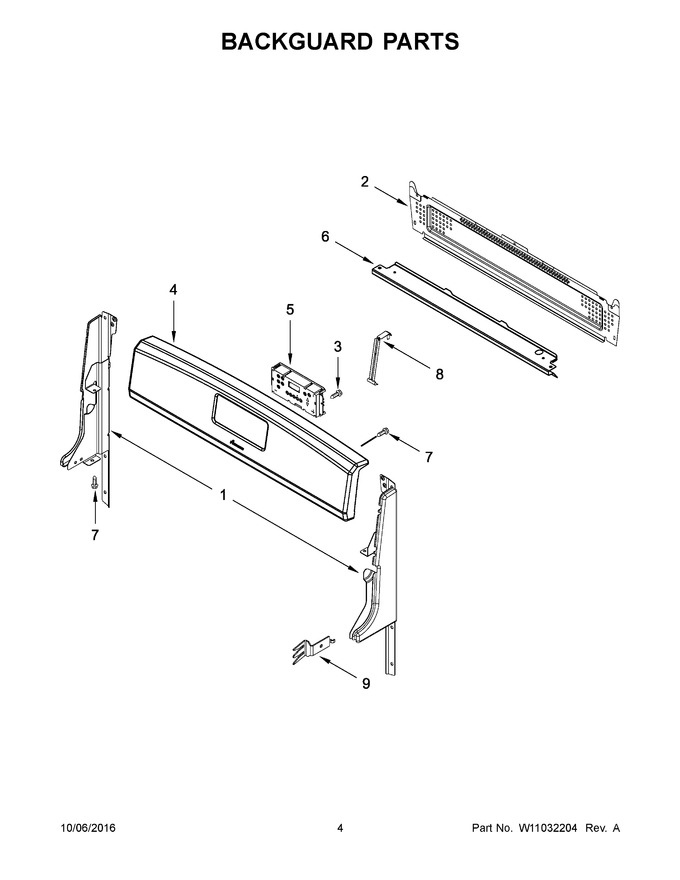

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10873109		Endcap (left Hand) (black)   (Replaces: W10662115)		Appelez-nous	-
2	W10588614		Backguard, Rear		Appelez-nous	-
3	W10837731		Screw   (Replaces: 98006633)				$ 7.07
4	W11181656		Panel, Control (black)   (Replaces: W10620556)		Appelez-nous	-
5	WPW10556708		Control, Electronic (black)   (Replaces: W10556708)				$ 226.01
6	W10535746		Bracket, Console Mount		Appelez-nous	-
7	W11233072		Screw   (Replaces: 98005000)			Immediately	$ 12.62
8	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 72.69
9	W10535815		Bracket, Rear		Appelez-nous	-
1A	W10873441		Endcap (left Hand) (white)   (Replaces: W10662110)		Appelez-nous	-
1B	W10873107		Endcap (right Hand) (black)   (Replaces: W10661916)		Appelez-nous	-
1C	W10873438		Endcap (right Hand) (white)   (Replaces: W10661915)		Appelez-nous	-
4A	W11117116		Panel, Control (white)   (Replaces: W10620555)		Appelez-nous	-
4B	W10585645		Panel, Control (black With Overlay (stainless Model))		Appelez-nous	-
5A	WPW10556708		Control, Electronic (white)   (Replaces: W10556707)				$ 226.01
