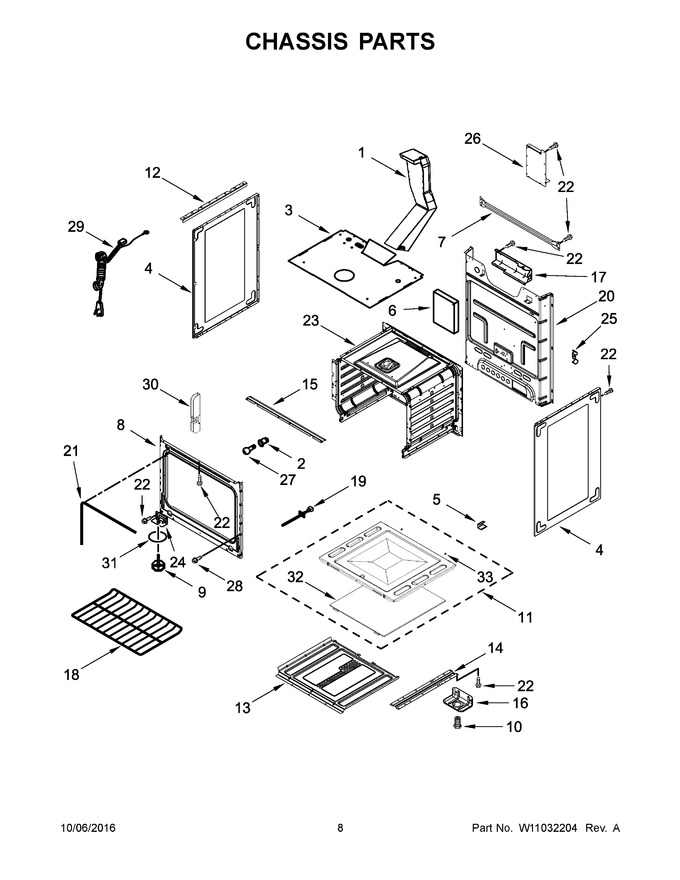

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10675411		Box, Flue		Appelez-nous	-
2	W10856866		Socket, Light Bulb   (Replaces: W10554269)				$ 6.47
3	W10636342		Shield, Insulation		Appelez-nous	-
4	W10816993		Panel, Side (black (left))   (Replaces: W10666212)		Appelez-nous	-
5	98005502		Clip, Oven Botton				$ 12.10
6	98006710		Counterweight		Appelez-nous	-
7	98015363		Support, Rear				$ 73.69
8	N/P		Frame, Front (not Serviced)		Appelez-nous	-
9	W10819918		Foot, Leveling (front)   (Replaces: W10519868)		Appelez-nous	-
10	WPW10058460		Foot, Leveling (rear)   (Replaces: W10058460)			Immediately	$ 7.07
11	W11098799		Assembly, Oven Bottom   (Replaces: W10620410)				$ 162.05
12	W10577312		Support, Side Panel		Appelez-nous	-
13	W10670197		Deflector, Oven		Appelez-nous	-
14	W10520269		Rail, Base		Appelez-nous	-
15	W10545322		Bracket, Manifold		Appelez-nous	-
16	W11770643		Bracket, Foot   (Replaces: W10535682)		Appelez-nous	-
17	W10549293		Cover, Valve		Appelez-nous	-
18	WPW10550642		Rack, Oven   (Replaces: W10550642)				$ 94.99
19	WPW10181986		Sensor, Oven   (Replaces: W10181986)			Immediately	$ 96.15
20	W10554678		Back, Main		Appelez-nous	-
21	WPW10535778		Seal, Oven   (Replaces: W10535778)				$ 75.18
22	W10837731		Screw   (Replaces: W10493726)				$ 7.07
23	N/P		Liner, Oven (not Serviced)		Appelez-nous	-
24	W10819918		Base, Foot   (Replaces: W10562043)		Appelez-nous	-
25	98005026		Clip, Tubing		Appelez-nous	-
26	W10538845		Cover		Appelez-nous	-
27	W10888179		Bulb, Light   (Replaces: W10788320)				$ 59.84
28	WP98008545		Screw (black)   (Replaces: 98008545)				$ 15.94
29	W11173616		Cord, Power   (Replaces: W10640762)		Appelez-nous	-
30	W11161898		Hinge, Receiver   (Replaces: W10327222)		Appelez-nous	-
31	98007193		Spacer				$ 8.91
32	W11688713		Spread, Flame (bake)   (Replaces: W10670196)		Appelez-nous	-
33	WP3400832		Screw (black)   (Replaces: 98006726)			Immediately	$ 6.98
4A	W10816993		Panel, Side (black (right))   (Replaces: W10666211)		Appelez-nous	-
4B	W10816996		Panel, Side (white (left))   (Replaces: W10666176)		Appelez-nous	-
4C	W10816996		Panel, Side (white (right))   (Replaces: W10666141)		Appelez-nous	-
NI	W11492324		Insulation, Wrap   (Replaces: W10609560)		Appelez-nous	-
NI	W10537475		Insulation, Back		Appelez-nous	-
NI	W11688850		Insulation, Upper   (Replaces: W10613818)		Appelez-nous	-
NI	98004294		Wire Tie, Insulation		Appelez-nous	-
