01 - Cover Sheet

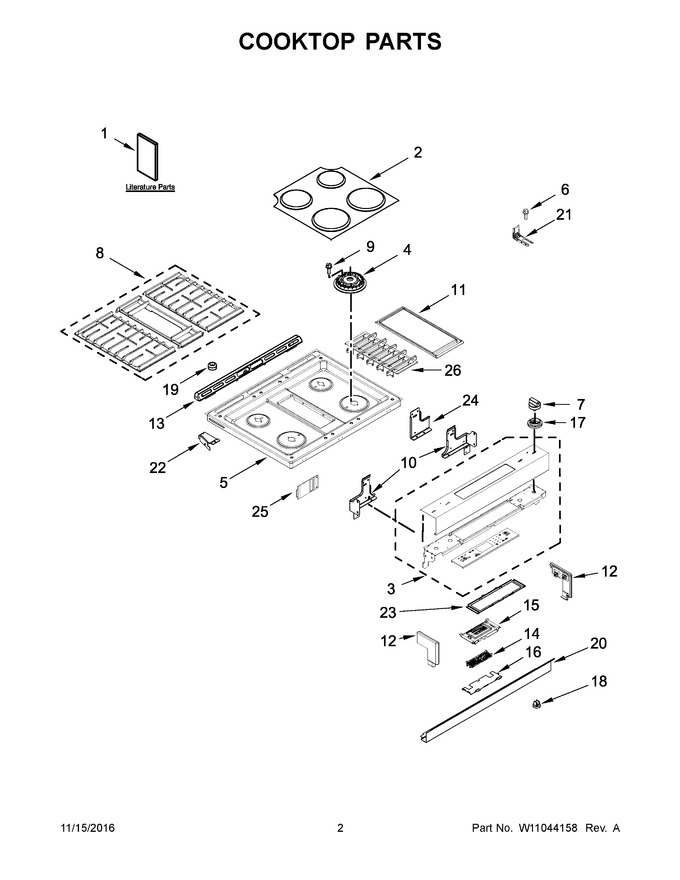

02 - Cooktop Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Blower Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10787365 | Instructions, Installation |
|
- | |||||
| 2 | WPW10300347 | Kit, Burner Cap (black) (Replaces: W10300347) |
|
Immediately | $ 190.51 | ||||
| 3 | W11039015 | Console (stainless) (Replaces: W10901068) |
|
$ 764.42 | |||||
| 4 | W11238353 | Spreader, Flame (left Front & Right Front) (Replaces: W10556378) |
|
$ 108.32 | |||||
| 5 | W10803780 | Cooktop (stainless) (Replaces: W10482062) |
|
- | |||||
| 6 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 26.33 | |||||
| 7 | W11050532 | Knob (stainless) (Replaces: W10437064) |
|
$ 62.60 | |||||
| 8 | W11211507 | Kit, Grate (black) (Replaces: W10752103) |
|
$ 302.21 | |||||
| 9 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 10 | W10289170 | Support, Cooktop (left) |
|
$ 25.76 | |||||
| 11 | W10432544 | Griddle |
|
Immediately | $ 51.00 | ||||
| 12 | W10557751 | Endcap (stainless (left)) |
|
$ 144.73 | |||||
| 13 | W11170796 | Trim, Vent (stainless) (Replaces: W10636529) |
|
Immediately | $ 121.73 | ||||
| 14 | W10803488 | Control, Mrc2 (Replaces: W10453974) |
|
$ 346.32 | |||||
| 15 | W11179272 | Display, Assembly (Replaces: W10603097) |
|
Immediately | $ 501.81 | ||||
| 16 | W10558372 | Bracket, Control |
|
$ 21.51 | |||||
| 17 | W11028784 | Bezel (stainless) (Replaces: W10490679) |
|
Immediately | $ 53.14 | ||||
| 18 | W11025100 | Grommet (Replaces: W10645947) |
|
Immediately | $ 11.28 | ||||
| 19 | W11104127 | Bumper (Replaces: W10664705) |
|
Immediately | $ 18.83 | ||||
| 20 | W10743281 | Console, Lower Panel (stainless) |
|
- | |||||
| 21 | W11502257 | Bracket, Anti-tip (Replaces: W10606241) |
|
Immediately | $ 20.73 | ||||
| 22 | W10162253 | Brace, Corner (left) |
|
$ 63.54 | |||||
| 23 | W10557780 | Bracket, Control |
|
$ 31.44 | |||||
| 24 | W10598048 | Bracket, Console (center) |
|
$ 22.05 | |||||
| 25 | W10752321 | Shield, Keypad |
|
- | |||||
| 26 | W10752102 | Grill, Air (black) |
|
$ 196.82 | |||||
| 10A | W10289169 | Support, Cooktop (right) |
|
$ 25.76 | |||||
| 12A | W10557754 | Endcap (stainless (right)) |
|
$ 144.73 | |||||
| 1A | W10750373 | Guide, Use And Care |
|
- | |||||
| 1B | W10665227 | Sheet, Tech |
|
- | |||||
| 1C | W10750126 | Drawing, Wiring |
|
- | |||||
| 1D | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1E | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1F | W10400066 | Guide, Quick Start (english) |
|
- | |||||
| 1G | W10400067 | Guide, Quick Start (french) |
|
- | |||||
| 1H | W11643128 | Template, Downdraft (Replaces: W10817089) |
|
$ 12.35 | |||||
| 22A | W10162252 | Brace, Corner (right) |
|
$ 67.37 | |||||
| 4A | W10556381 | Spreadder, Flame (left Rear) |
|
$ 78.42 | |||||
| 4B | W10556377 | Spreader, Flame (right Rear) |
|
$ 75.96 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10814444 | Harness, Main |
|
- | |||||
| NI | W11198274 | Harness, Jumper (Replaces: W10812964) |
|
$ 100.91 | |||||
| NI | W11176109 | Harness, Display (Replaces: W10598169) |
|
Immediately | $ 192.83 | ||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 48.02 | ||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 17.60 | |||||
| NI | W11175842 | Suppressor (Replaces: W10653092) |
|
Immediately | $ 94.54 |
