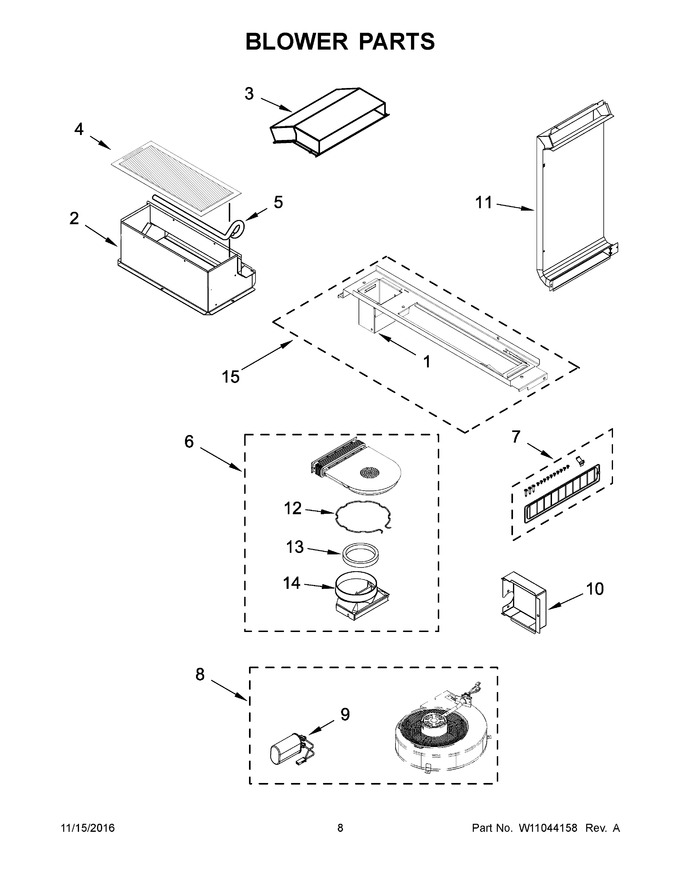

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10661156 | Enclosure, Blower |
|
$ 118.24 | |||||
| 2 | W10572225 | Plenum Intake, Gas |
|
- | |||||
| 3 | W10572145 | Plenum, Upper |
|
$ 172.38 | |||||
| 4 | W11190170 | Grease, Filter (Replaces: W10575379) |
|
Immediately | $ 63.56 | ||||
| 5 | W10575393 | Guard, Filter |
|
$ 11.96 | |||||
| 6 | W11129407 | Kit, Plenum Transition (Replaces: W10789431) |
|
Immediately | $ 410.92 | ||||
| 7 | W11190818 | Kit, Blower Installation (Replaces: W10789391) |
|
Immediately | $ 95.49 | ||||
| 8 | W10921431 | Kit, Blower (Replaces: W10810492) |
|
$ 476.24 | |||||
| 9 | W11209781 | Capacitor, Assembly (Replaces: W10788527) |
|
Immediately | $ 77.00 | ||||
| 10 | W10787917 | Cover, Capicator |
|
$ 61.50 | |||||
| 11 | W10661835 | Plenum, Side |
|
$ 177.13 | |||||
| 12 | W10702071 | Retainer |
|
Immediately | $ 100.76 | ||||
| 13 | W10759311 | Gasket, Blower |
|
Immediately | $ 71.41 | ||||
| 14 | W10642096 | Adaptor, Exhaust |
|
Immediately | $ 169.82 | ||||
| 15 | W10789390 | Plenum Support Bracket Assembly |
|
$ 79.83 |
