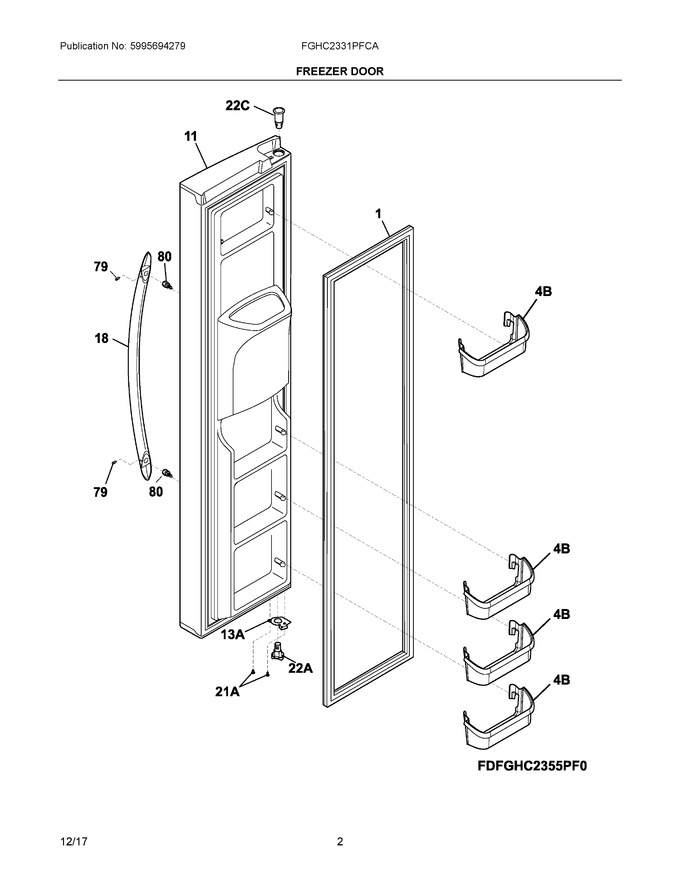

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241510208 | Gasket-frzr Door, Gray, Magnetic (Replaces: 241510206) |
|
Immediately | $ 94.95 | ||||
| 10 | 807688301 | Spring, Water Hose, Frz Door |
|
$ 18.57 | |||||
| 11 | 241993832 | Door-frzr, Stainless, Complete Assy |
|
$ 771.27 | |||||
| 18 | 241930101 | Handle-door, Stainless |
|
$ 160.88 | |||||
| 26 | 241690602 | Screw, Cr Pan Hd, 10-16 X 0.500 (Replaces: 215503205) |
|
Immediately | $ 10.63 | ||||
| 45 | 5304455651 | Screw, Hex Washer Head, 8-15a X 0.500 (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 74 | 215503203 | Screw, Cr Pan Hd, 10-16 X 0.500 |
|
Immediately | $ 7.09 | ||||
| 79 | 218755405 | Screw-set, 10-32 X 0.650 |
|
Immediately | $ 20.56 | ||||
| 79 | 218755405 | Screw-set, 10-32 X 0.375 (Replaces: 218755408) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 13A | 241990202 | Door Stop, Black, Frzr |
|
Immediately | $ 21.27 | ||||
| 21A | 240442708 | Screw-#10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 21D | 218781101 | Screw, Pan Head, 8-18 X 0.625 |
|
$ 15.60 | |||||
| 22A | 241990302 | Bearing-hinge(frz), Closer |
|
$ 7.09 | |||||
| 22C | 241760402 | Bearing, Hinge, Top |
|
$ 19.13 | |||||
| 45A | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 4B | 241511601 | Bin-door |
|
$ 42.44 | |||||
| 74A | 218755402 | Screw-set, 10-32 X .500 In |
|
Immediately | $ 33.00 | ||||
| NI | 5304521766 | Harness, Wiring, Door (Replaces: 807487901) |
|
$ 44.75 | |||||
| NI | 241701902 | Screwdriver, Hex, 3/32", Ball Driver |
|
$ 19.85 | |||||
| NI | 5308000039 | Screw, Hex Washer Head, 8-32ca X 0.500, Serrated Head |
|
- | |||||
| NI | 5303918596 | Dispenser Heater Kit, 115, Single Paddle (Replaces: 5303918371) |
|
$ 317.38 | |||||
| NI | 240451503 | Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe |
|
$ 3.79 | |||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 242288101 | Harness, Wiring, Door |
|
- | |||||
| NI | 316136900 | Cleaner, Stainless Steel |
|
$ 35.49 | |||||
| NIA | 241601002 | Wrench, Allen |
|
- |
