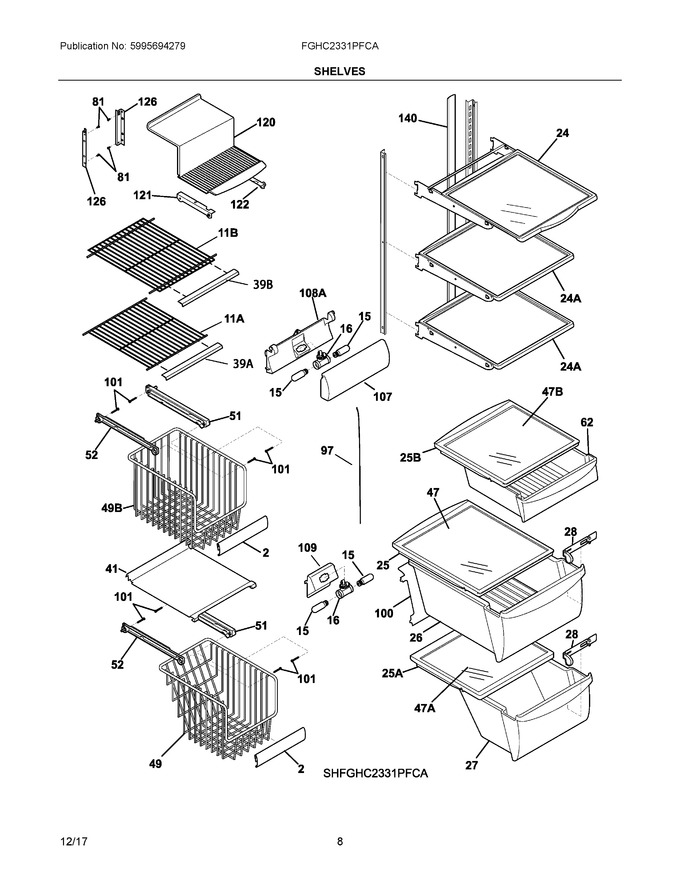

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241510605		Trim-basket		Appelez-nous	-
15	241552802		Light Bulb			Immediately	$ 50.45
16	241622802		Socket-light, Frz Light				$ 65.93
24	240350160		Shelf-"spill-safe", Cantilever, Sliding   (Replaces: 240350158)			Immediately	$ 146.36
25	240599301		Cover-crisper Pan, Upper			Immediately	$ 94.38
26	240351061		Pan-crisper, Upper			Immediately	$ 110.01
27	240351240		Pan-crisper, Lower				$ 203.45
28	240362201		Control-humidity				$ 69.46
41	241637601		Baffle-air				$ 87.05
47	240350649		Insert-pan Cover, Glass			Immediately	$ 123.89
49	241515001		Basket-sliding				$ 188.19
51	241514501		Hanger-basket, Rh				$ 73.71
52	241514601		Hanger-basket, Lh				$ 76.55
62	241974604		Pan-meat   (Replaces: 241974601)				$ 131.60
97	242220208		Tube-water Inlet, .315 - 97.50", Natural			Immediately	$ 43.24
100	240326304		Cover-water Tank				$ 73.57
101	218493101		Screw, Hex Washer Head, 8-18ab X 1-3/4				$ 13.46
107	241753601		Shield-light, Upper				$ 30.91
109	241513202		Base-crisper Light Socket				$ 65.21
120	241691701		Shelf-ice Cream				$ 74.42
121	241504701		Rail-ice Cream Shelf, Lh				$ 64.49
122	241504702		Rail-ice Cream Shelf, Rh				$ 75.08
126	241674401		Channel, Auger Mtg, Lh				$ 47.48
140	241812502		Channel, Wtr Tube Cover				$ 76.97
108A	241753701		Housing-light, Upper, Fresh Food				$ 22.58
11A	241657605		Shelf-freezer, Flip-up		Appelez-nous	-
11B	241657506		Shelf-freezer, Fixed Wire		Appelez-nous	-
126A	241674402		Channel, Auger Mtg, Rh				$ 43.24
24A	240355278		Shelf-"spill-safe", Fixed		Appelez-nous	-
25A	240350903		Cover-crisper Pan, Lower			Immediately	$ 91.99
25B	240599803		Frame-deli Cover, Upper			Immediately	$ 90.55
39A	240430709		Trim-shelf, 11.60", Front		Appelez-nous	-
39B	240430710		Trim-shelf, 12.86", Front				$ 62.79
47A	240350603		Insert-pan Cover, Glass			Immediately	$ 115.52
47B	240443391		Insert-pan Cover, Glass			Immediately	$ 123.62
49B	241514901		Basket-sliding, Upper, Full		Appelez-nous	-
NI	242146253		Label, Energy Guide		Appelez-nous	-
NI	240349801		Clip-slide, Pan				$ 20.48
NI	240362101		Clip-slide, Cover				$ 47.03
NI	241595202		Clip-slide, Crisper				$ 18.20
NIA	241781601		Seal-return Air				$ 9.10
NIA	241987601		Harness-wiring				$ 113.76
NIA	242200102		Clip, Tubing, 90 Deg Elbow				$ 10.63
