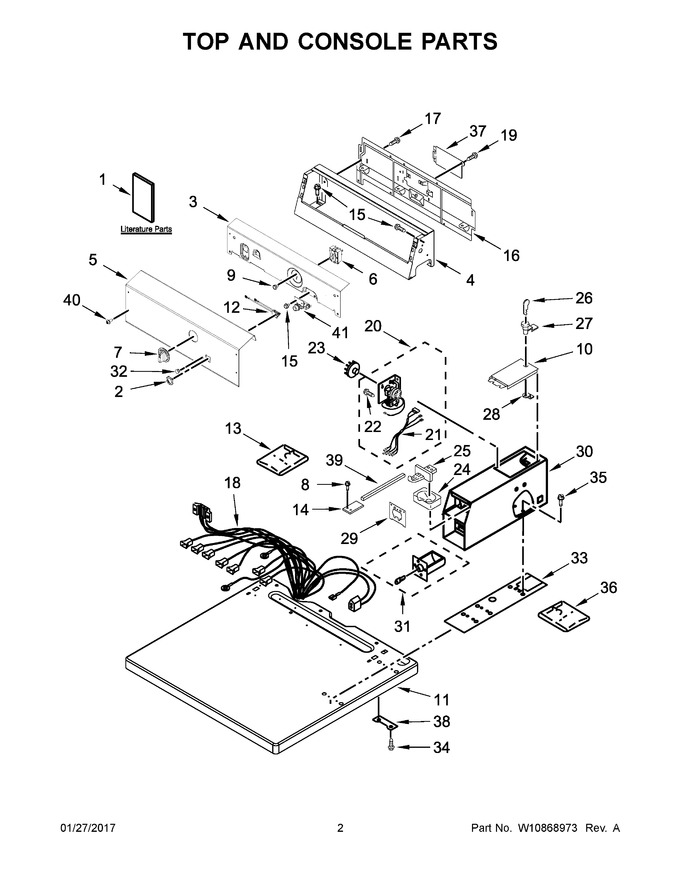

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Burner Assembly Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10867001 | 2745 Model, Installation Instructions |
|
- | |||||
| 2 | W10510149 | Bezel - Pts |
|
Immediately | $ 24.54 | ||||
| 3 | W10461070 | Bracket Control |
|
$ 127.69 | |||||
| 4 | W10461094 | Console |
|
$ 159.97 | |||||
| 5 | W10845275 | Fascia |
|
$ 237.22 | |||||
| 6 | WPW10327105 | Switch, Cycle Selection (Replaces: W10327105) |
|
$ 145.49 | |||||
| 7 | W10492415 | Knob |
|
$ 17.68 | |||||
| 8 | WP3400029 | Nut (Replaces: 3400029) |
|
Immediately | $ 6.98 | ||||
| 9 | W10139100 | Screw |
|
$ 11.15 | |||||
| 10 | W11283272 | Assembly, Service Door (Replaces: 3351136) |
|
$ 95.29 | |||||
| 11 | W10492412 | Top 2745 Model (white) |
|
- | |||||
| 12 | W10662107 | Lamp, Indicator |
|
$ 23.30 | |||||
| 13 | 8316524 | Kit, Chute Decal |
|
- | |||||
| 14 | 3390424 | Extension (Replaces: 8316523) |
|
Immediately | $ 61.43 | ||||
| 15 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.04 | ||||
| 16 | W11089934 | Panel, Rear (console) (Replaces: W10863354) |
|
$ 256.84 | |||||
| 17 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 18 | W10153108 | Harness, Main |
|
- | |||||
| 19 | W11808444 | Screw (Replaces: 98139) |
|
- | |||||
| 20 | W11596043 | Timer & Harness Assembly (Replaces: W10521400) |
|
$ 291.96 | |||||
| 21 | W10177793 | Harness, Timer |
|
$ 67.09 | |||||
| 22 | 339805 | Screw |
|
$ 12.05 | |||||
| 23 | WP3387974 | Timing Cam, 3-pin (60 Minutes) (Replaces: 3387974) |
|
$ 7.49 | |||||
| 24 | WP385421 | Funnel, Coin (Replaces: 385421) |
|
Immediately | $ 66.78 | ||||
| 25 | W11126319 | Coin Chute (Replaces: 8316520) |
|
Immediately | $ 279.80 | ||||
| 26 | WPW10114740 | Key (service Door) (when Ordering Specify Vendor And Key Number), 777 Lock And Key, Complete (Replaces: W10114740) |
|
$ 117.85 | |||||
| 27 | W11315637 | 777 Lock And Key, Complete (Replaces: 8316526) |
|
Immediately | $ 36.42 | ||||
| 28 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 7.33 | |||||
| 29 | 279950 | Plate, Adapter (Replaces: 3954761) |
|
Immediately | $ 26.00 | ||||
| 30 | WPW10461200 | Case, Meter (Replaces: W10461200) |
|
Immediately | $ 344.90 | ||||
| 31 | W11190039 | Money Box W/lock (Replaces: 8316525) |
|
Immediately | $ 160.25 | ||||
| 32 | WPW10133502 | Indicator Lights Assembly (Replaces: W10133502) |
|
$ 11.58 | |||||
| 33 | WP3954812 | Cushion, Meter Case (Replaces: 3954812) |
|
$ 27.99 | |||||
| 34 | W10841059 | Screw (Replaces: 98445) |
|
- | |||||
| 35 | W11715721 | Bolt (Replaces: 3349065) |
|
$ 6.41 | |||||
| 36 | WP3406965 | Kit, Vertical 8-coin (Replaces: 3954807) |
|
Immediately | $ 358.66 | ||||
| 37 | W10819767 | Cover, Terminal Block (Replaces: 8317339) |
|
- | |||||
| 38 | 3347825 | Plate, Mounting |
|
- | |||||
| 39 | WP8576635 | Bolt, Slide Mechanism (Replaces: 8318517) |
|
Immediately | $ 67.13 | ||||
| 40 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 6.26 | |||||
| 41 | W11097274 | Switch, Push To Start (Replaces: W10424310) |
|
$ 60.71 | |||||
| 11A | WPW10136707 | Top 2765 Model (white) (Replaces: W10136707) |
|
$ 320.56 | |||||
| 1A | W10888888 | 2765 Model, Installation Instructions |
|
- | |||||
| 1B | W10167622 | Wiring Diagram |
|
- | |||||
| 23A | 51-161-6 | Timing Cam, 6-pin (30 Minutes) (Replaces: 343777) |
|
$ 31.07 | |||||
| 25A | 8316265 | Insert - 25 Cent |
|
- |
