Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

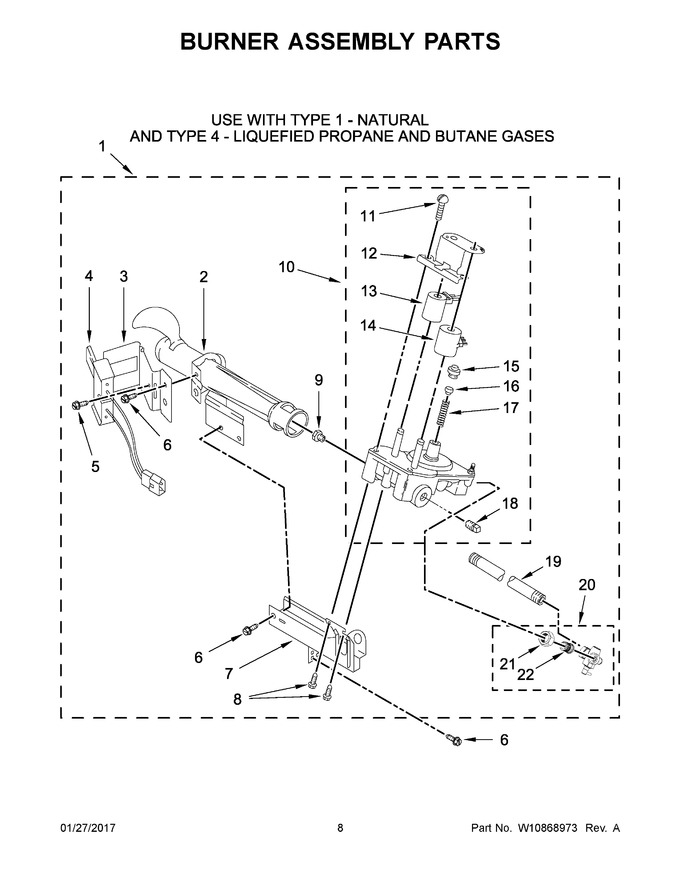

1	3401797		Burner Assembly (60 Hz)		Appelez-nous	-
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 161.89
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 23.33
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 71.01
5	WPW10366705		Screw   (Replaces: 3393909)				$ 6.75
6	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.07
7	3389871		Base, Burner				$ 71.36
8	WP693995		Screw   (Replaces: 3387057)			Immediately	$ 6.47
9	3397656		Orifice, Burner (type 1 (natural Gas))		Appelez-nous	-
10	279923		Valve, Gas (complete) 60 Hz   (Replaces: 8281911)			Immediately	$ 257.43
11	694421		Screw, Coil		Appelez-nous	-
12	694538		Bracket, Coil				$ 72.05
13	279834		Coil, 60 Hz. (2 Terminal) (main)   (Replaces: 694540)			Immediately	$ 29.57
14	279834		Coil, 60 Hz (split) (3 Terminal) (pilot Position)   (Replaces: 694539)			Immediately	$ 29.57
15	WP694424		Leak, Limiter   (Replaces: 694424)				$ 31.11
16	WP694423		Screw, Regulator Adjustment   (Replaces: 694423)				$ 6.26
17	WP694422		Spring, Regulator   (Replaces: 694422)				$ 21.84
18	W10295523		Plug, Pipe   (Replaces: 239822)		Appelez-nous	-
19	W10110395		Pipe, Gas Supply		Appelez-nous	-
20	697441		Valve, Gas		Appelez-nous	-
21	233076		Nut, Compression				$ 43.19
22	3393767		Pipe, Tail				$ 123.97
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	49572A		Conversion Kit (type 1 And 2) To Type (4) L.p.g.   (Replaces: 694572)			Immediately	$ 32.57
