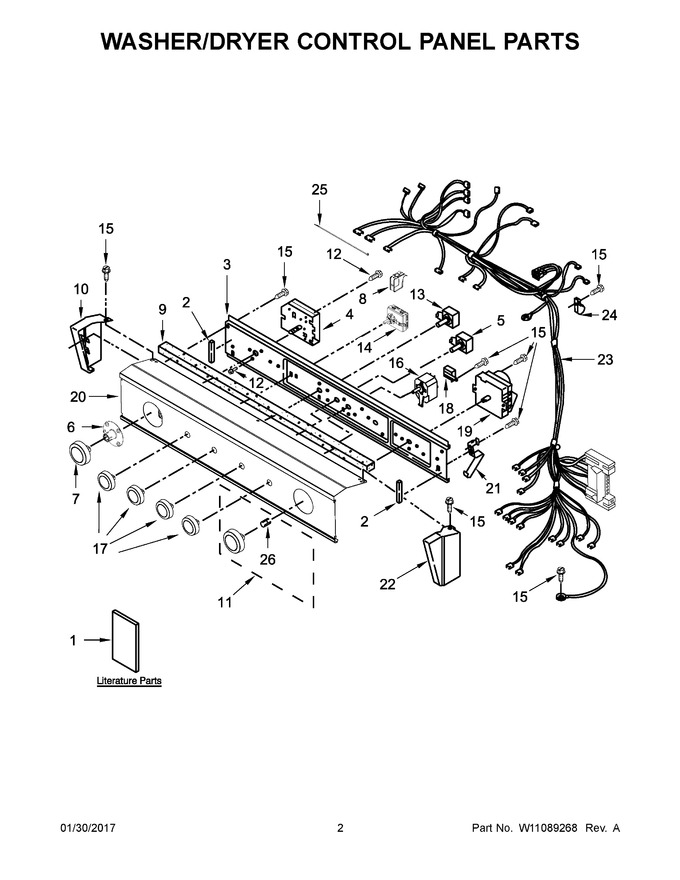

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W10894257 |
|
Installation Instructions |
|
Appelez-nous
|
- |
|
|
|
| 2 |
3390688 |
|
Spacer, Foam Pad |
|
|
|
$ 8.13 |
|
|
| 3 |
W10732070 |
|
Bracket, Control |
|
|
|
$ 158.08 |
|
|
| 4 |
WPW10113804 |
 |
Timer Assembly (60 Hz.) (Replaces: W10113804) |
|
|
Immediately |
$ 300.68 |
|
|
| 5 |
W10851055 |
 |
Switch, Rotary (Replaces: 3949188) |
|
|
|
$ 147.65 |
|
|
| 6 |
W11174845 |
|
Dial, Timer (Replaces: W10721959) |
|
|
|
$ 42.35 |
|
|
| 7 |
W11116863 |
|
Knob, Timer (washer) (white) (Replaces: W10721955) |
|
|
Immediately |
$ 42.35 |
|
|
| 8 |
W10210799 |
|
Clip, Harness |
|
Appelez-nous
|
- |
|
|
|
| 9 |
8521965 |
|
Gasket, Console |
|
Appelez-nous
|
- |
|
|
|
| 10 |
W10891649 |
|
End Cap (left) (white) |
|
|
|
$ 50.43 |
|
|
| 11 |
W11104717 |
|
Knob, Timer (dryer) (white) (Replaces: W10721961) |
|
|
|
$ 40.92 |
|
|
| 12 |
W10915367 |
|
Screw (Replaces: 3400808) |
|
Appelez-nous
|
- |
|
|
|
| 13 |
WPW10544357 |
|
Switch, Pressure (3 Level) (Replaces: W10544357) |
|
|
|
$ 182.98 |
|
|
| 14 |
W11103597 |
|
Switch, Temperature (Replaces: W10711272) |
|
|
|
$ 178.85 |
|
|
| 15 |
WP90767 |
 |
Screw (Replaces: 90767) |
|
|
Immediately |
$ 7.04 |
|
|
| 16 |
WP3404233 |
 |
Switch, Push-to-start (Replaces: 3404233) |
|
|
Immediately |
$ 98.66 |
|
|
| 17 |
W11034979 |
|
Assembly, Control Knob (white) (Replaces: W10722056) |
|
|
|
$ 44.69 |
|
|
| 18 |
WP694419 |
 |
Buzzer, Mini (Replaces: 694419) |
|
|
|
$ 114.90 |
|
|
| 19 |
W10854240 |
 |
Timer Assembly (Replaces: W10642934) |
|
|
Immediately |
$ 173.60 |
|
|
| 20 |
W10696103 |
|
Assembly, Control Panel (white) |
|
|
|
$ 278.85 |
|
|
| 21 |
3389453 |
|
Bracket, Hinge |
|
|
|
$ 78.06 |
|
|
| 22 |
W10891648 |
|
End Cap (right) (white) |
|
|
|
$ 58.00 |
|
|
| 23 |
W10917731 |
|
Harness, Dryer |
|
Appelez-nous
|
- |
|
|
|
| 24 |
7111P002-60 |
|
Clamp, Harness (Replaces: 3390604) |
|
Appelez-nous
|
- |
|
|
|
| 25 |
WPW10334336 |
|
Tie, Cable (Replaces: W10334336) |
|
|
|
$ 5.75 |
|
|
| 26 |
WP8536939 |
 |
Clip, Spring (Replaces: 8536939) |
|
|
Immediately |
$ 7.03 |
|
|
| 1A |
W10802778 |
|
Guide, Use And Care |
|
Appelez-nous
|
- |
|
|
|
| 1B |
W10685958 |
|
Wiring Diagram |
|
Appelez-nous
|
- |
|
|
|
