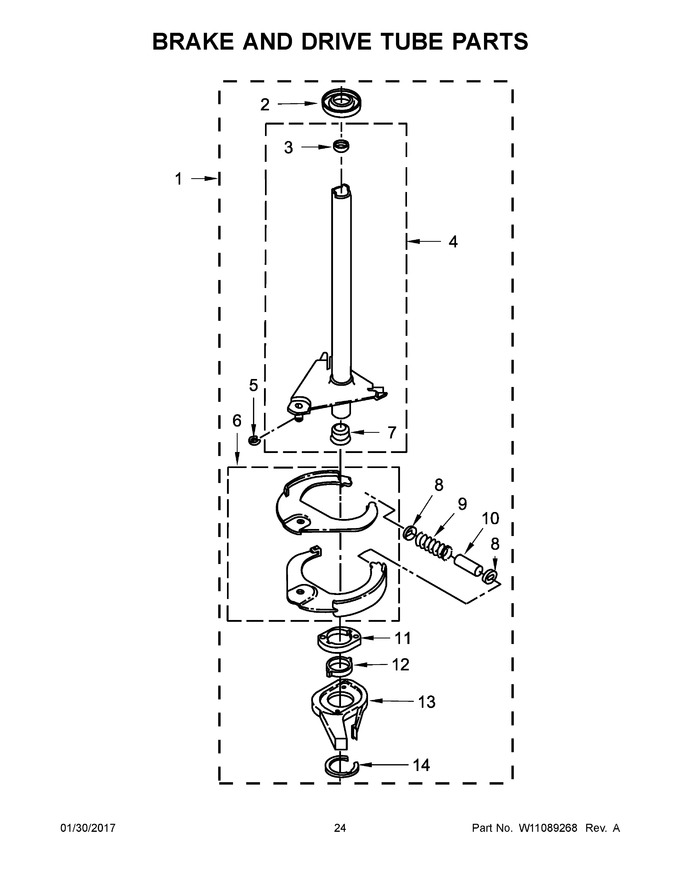

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10820043		Brake & Drive Tube (complete)   (Replaces: 388951)			Immediately	$ 195.58
2	WP62658		Ring, Thrust   (Replaces: 62658)			Immediately	$ 11.17
3	WP356427		Seal, Drive Tube   (Replaces: 356427)			Immediately	$ 6.47
4	WP64208		Tube, Basket Drive   (Replaces: 64027)				$ 272.29
5	W10083190		Ring, "e   (Replaces: 64035)				$ 10.03
6	285438		Shoe, Brake   (Replaces: 64232)				$ 123.64
7	WP8546462		T Bearing, Spin Tube   (Replaces: 8546462)			Immediately	$ 7.58
8	285658		Cap, Brake Spring   (Replaces: 3353956)				$ 9.61
9	WP62647		Spring, Brake   (Replaces: 62647)				$ 6.16
10	285658		Sleeve, Brake Spring   (Replaces: 3355360)				$ 9.61
11	WP8546461		Cam, Brake Release   (Replaces: 8546461)				$ 7.48
12	WP63022		Sleeve, Cam   (Replaces: 63022)				$ 41.30
13	285790		Driver, Brake Cam   (Replaces: 64194)			Immediately	$ 38.92
14	W11033823		Ring, Retaining   (Replaces: 90368)				$ 11.21
NI	N/P		(parts Not Shown)		Appelez-nous	-
NI	285208		Lubricant (use Only In Brake Shoe Assembly On Roller And Pin)				$ 41.86
