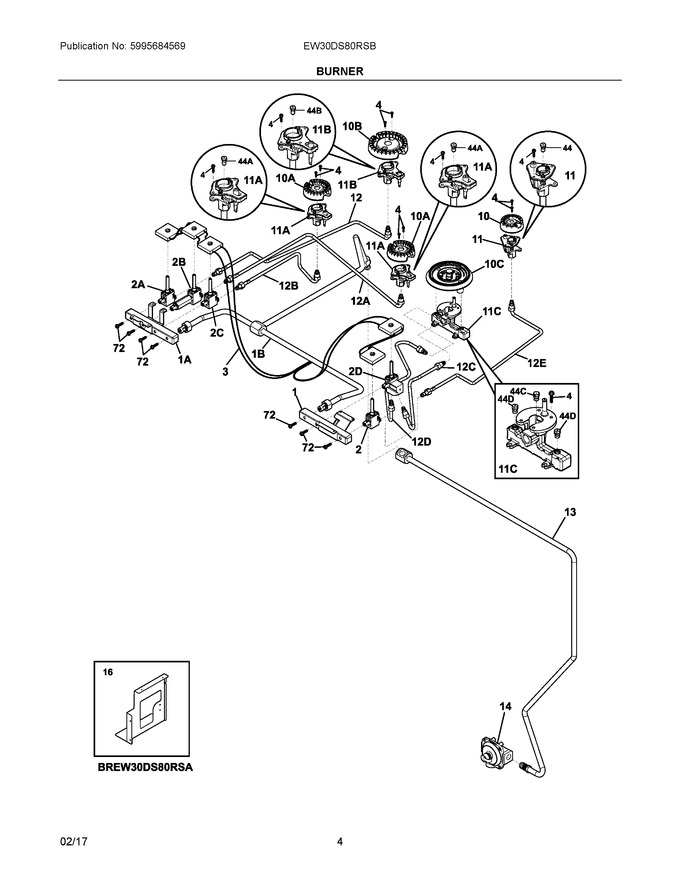

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304491268		Manifold, Assembly, Right Side		Appelez-nous	-
2	316271305		Valve, Top Burner, 5k				$ 111.28
3	5304504135		Ignitor Switches, Assembly, W/harness				$ 96.07
4	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 15.17
10	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
11	316540800		Ignitor/orifice Assy., Top Burner, 5k, W/holder				$ 11.20
12	318901301		Tubing, 14k Burner, Lh Rear		Appelez-nous	-
13	318902302		Tubing, Manifold Supply   (Replaces: 318902301)		Appelez-nous	-
14	318122721		Regulator, Pressure			Immediately	$ 126.65
16	318590003		Panel, Regulator Mtg.				$ 51.50
44	316527504		Orifice, Burner, 5k				$ 22.68
72	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
10A	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
10B	316438400		Burner, Sealed, 18.2k			Immediately	$ 83.42
10CA	5304501023		Burner Assembly, G5				$ 165.99
11A	316540700		Ignitor/orifice Assy., Top Burner, 9.5k, W/holder				$ 11.15
11B	316543202		Ignitor/orifice Assy., Top Burner, Right Front, 16k, W/holder, Tube			Immediately	$ 11.76
11C	316440105		Ignitor/orifice Assy., Top Burner, Twin, 18k, W/holder				$ 146.01
12A	318916807		Tube, 9.5k Burner, Center		Appelez-nous	-
12B	318901502		Tubing, 9.5k Burner, Lh Front		Appelez-nous	-
12C	5304504131		Tube, G5 Burner, Low		Appelez-nous	-
12D	5304504132		Tube, G5 Burner, High		Appelez-nous	-
12E	318901100		Tubing, 5k Burner, Rh Rear		Appelez-nous	-
1A	318941212		Manifold, Assembly, Left Side   (Replaces: 318941201)		Appelez-nous	-
1B	318305412		Tube, Manifold, Interconnect		Appelez-nous	-
2A	316271304		Valve, Top Burner, 14/15k				$ 117.66
2B	807068401		Valve, Assembly, 9.5k, W/extension				$ 111.99
2C	316271303		Valve, Top Burner, 14k				$ 131.12
2D	5303935400		Valve, Top Burner, Dual				$ 163.07
44A	316527500		Orifice, Burner, 9.5k				$ 21.40
44B	316527508		Orifice, Top Burner, 16k				$ 18.43
44C	316527520		Orifice, Top Burner, Simmer				$ 15.60
44D	316527502		Orifice, Burner, 12k				$ 22.68
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	318186932		Lp Conversion Kit, W/instructions				$ 171.52
NI	318199795		Wiring Harness, Ignitor				$ 91.01
NIA	316566901		Sleeve, Insulator				$ 12.89
NIC	5304503473		Clip, Simmer Burner		Appelez-nous	-
