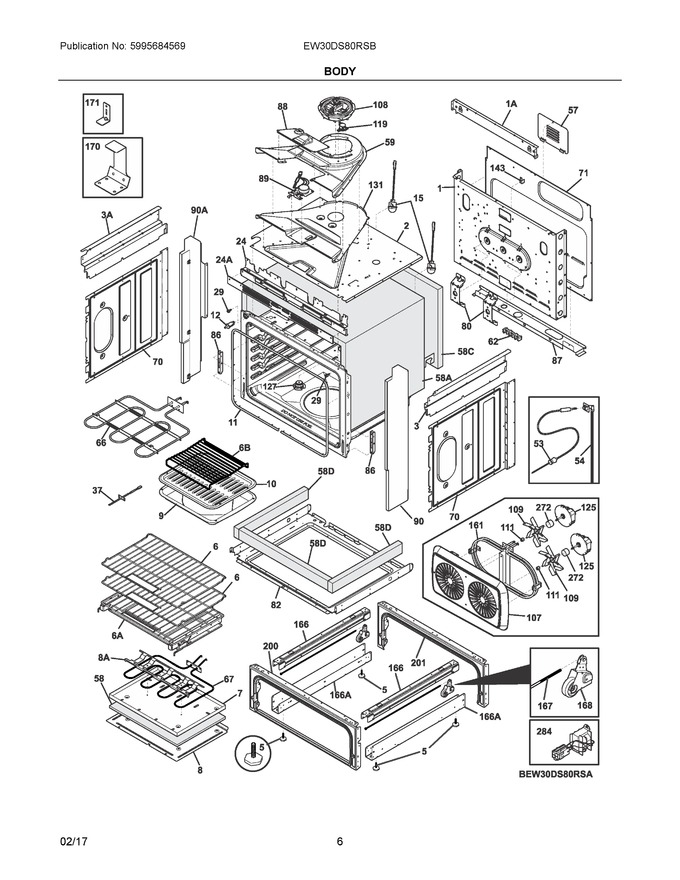

SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139017306		Panel, Main Back		Appelez-nous	-
2	139078200		Shield, Insulation, Top		Appelez-nous	-
3	318905700		Panel, Side, Rh Upper				$ 62.79
5	318175510		Screw, Leveling   (Replaces: 318175503)			Immediately	$ 24.26
6	139011601		Rack, Oven, W/handle				$ 160.18
7	318297303		Box, Bake Element				$ 125.84
8	318359500		Panel, Service				$ 140.09
9	316081901		Pan, Broiler, Cobalt Blue				$ 74.32
10	316082001		Insert, Broiler Pan, Cobalt Blue				$ 53.09
11	807545502		Seal, Oven Door, Gray				$ 140.34
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
15	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 20.56
24	139074902		Frame, Vent Trim		Appelez-nous	-
29	316517601		Bumper, Main Front, Cobalt Blue		Appelez-nous	-
37	5304504897		Sensor, Oven Temp Probe			Immediately	$ 48.13
53	5304503737		Probe, Meat Temp, Black				$ 99.33
54	5304517721		Receptacle Assy, Meat Probe   (Replaces: 139017205)				$ 72.30
57	316283600		Cover, Access				$ 12.50
58	318294912		Insullation, Bake Element				$ 97.17
59	139078002		Duct, Cooling Fan, Top				$ 78.67
62	5303935061		Terminal Block Kit		Appelez-nous	-
66	5304521498		Element, Broil, 6 Pass, 3400w   (Replaces: 139008900)			Immediately	$ 87.21
67	5304521880		Element, Bake, 2500w, 8 Pass   (Replaces: 139026700)			Immediately	$ 114.97
70	139000601		Shield, Insulation, Sides, (2)   (Replaces: 139000600)				$ 72.05
71	139014000		Shield, Rear Wall, Lower		Appelez-nous	-
80	139021101		Bracket, Support, Chassis/fan				$ 14.89
82	139008201		Shield, Insulation, Lower		Appelez-nous	-
86	318561100		Receptacle, Hinge, (2)				$ 21.23
87	318260638		Bracket, Cable Mtg.		Appelez-nous	-
88	5304506964		Cover, Latch Motor   (Replaces: 139027900)				$ 24.10
89	5304528836		Motor, Latch Assembly   (Replaces: 139078301)			Immediately	$ 76.34
90	318905812		Panel, Side, Stainless, Rh				$ 206.49
107	139001502		Cover, Dual Fan, Cobalt, Convection				$ 80.00
108	807123004		Motor Assembly, Fan			Immediately	$ 165.66
109	318398302		Blade, Fan, Convection   (Replaces: 139009100)			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
119	807144901		Thermostat, Safety, 110c Deg				$ 58.39
125	139008500		Motor, Convection Fan			Immediately	$ 216.23
127	5304538693		Tube Assembly, Vent, W/catalyst   (Replaces: 139042600)			Immediately	$ 10.03
131	139078102		Duct, Cooling Fan, Bottom				$ 64.49
143	318172904		Support, Wire		Appelez-nous	-
161	5304522063		Element, Convection, Dual, 2500w   (Replaces: 139006600)				$ 132.71
166	318298410		Bracket, Base Support, (2)				$ 75.83
167	318147811		Screw, Lock, Adjusting				$ 31.19
168	318302400		Wheel & Bracket Assy, Adjustable, (2)				$ 75.13
170	318335305		Bracket, Anti-tip				$ 17.72
171	318335200		Bracket, Anti-tilt				$ 31.90
200	318298232		Frame, Drawer, Black, Front				$ 95.13
201	318298233		Frame, Drawer, Black, Rear				$ 45.36
272	139021700		Tube, Convection Fan				$ 17.72
284	316536100		Transformer			Immediately	$ 210.83
166A	5304511884		Bracket, Base Support, Lower, (2)   (Replaces: 318298405)				$ 65.98
1A	318905600		Back, Main, Upper				$ 55.24
24A	139075001		Cover, Vent Trim, Black				$ 60.52
3A	318905701		Panel, Side, Lh Upper				$ 75.14
58A	139001700		Insulation, Oven Wrapper, Top & Sides		Appelez-nous	-
58C	139020202		Insulation, Oven Back				$ 44.46
58D	139020301		Insulation, Sides, (2)		Appelez-nous	-
6A	139013315		Rack Assembly, Gliding, Cobalt, W/handle				$ 320.20
6B	318219500		Rack, Broiler Pan		Appelez-nous	-
8A	318313601		Bracket, Bake Element				$ 71.45
90A	318905813		Panel, Side, Stainless, Lh				$ 199.31
NI	318531701		Spacer				$ 12.05
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5304517285		Harness Assembly, Filter, Electrical, W/capacitors   (Replaces: 5304500988)				$ 38.68
NI	5304517824		Harness, Wiring, Communication, Rly/pwr To Cntl   (Replaces: 5304499708)				$ 128.29
NI	807791601		Harness, Wiring, Ads Mdl		Appelez-nous	-
NI	5304499707		Harness, Wiring, Main				$ 192.07
NI	5303289910		Screw, Truss Sqdr, 8a X 1				$ 5.67
NI	316001009		Screw, Waf Hd Sq, 10-24 X 1.88, (2), Handle Mtg				$ 15.17
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 60.44
NIA	318579001		Bracket, Wire				$ 11.08
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 9.22
NIA	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 12.89
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	318346050		Insulation, Motor, Door Lock		Appelez-nous	-
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIC	318264200		Plate, Grounding Strap				$ 23.51

    View Diagram in Separate Window       Print Part List
