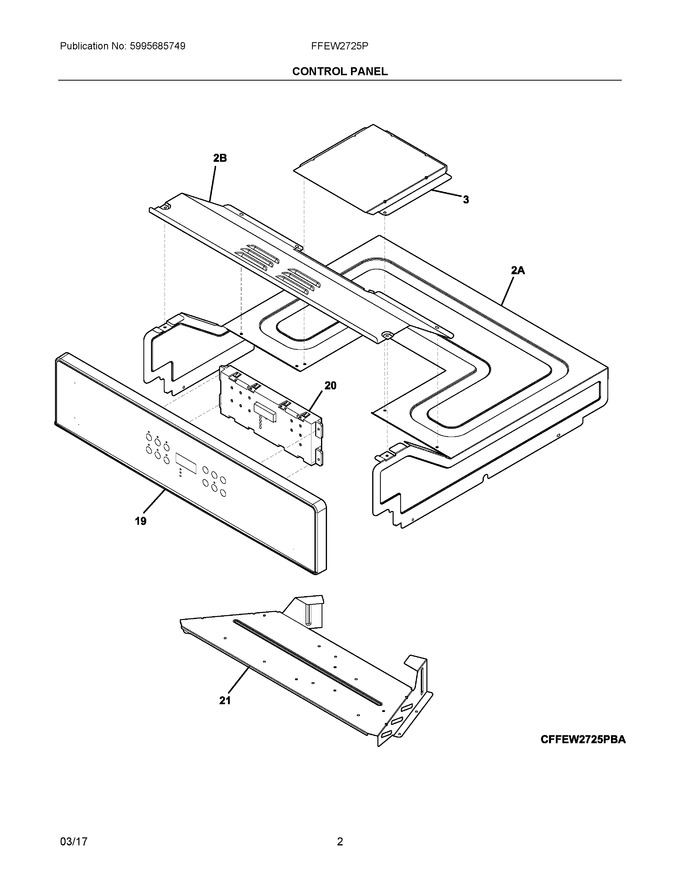

02 - Control Panel
03 - Body
04 - Door
05 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 318577801 | Box, Fan Service |
|
- | |||||
| 19 | 318274436 | Control Panel Assembly, Glass, White, W/touch Pad |
|
- | |||||
| 20 | 5304506991 | Controller, Electronic, Es350w1 |
|
$ 361.90 | |||||
| 21 | 139028000 | Bracket, Mounting |
|
$ 63.00 | |||||
| 2A | 139003601 | Cover, Oven Top |
|
- | |||||
| 2B | 139003701 | Cover, Control Access |
|
$ 33.31 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NIA | 5304453707 | Screw, 8-18 X 1/2 |
|
Immediately | $ 15.92 | ||||
| NIA | 318165800 | Spacer, Glass, Foam |
|
$ 17.72 |
