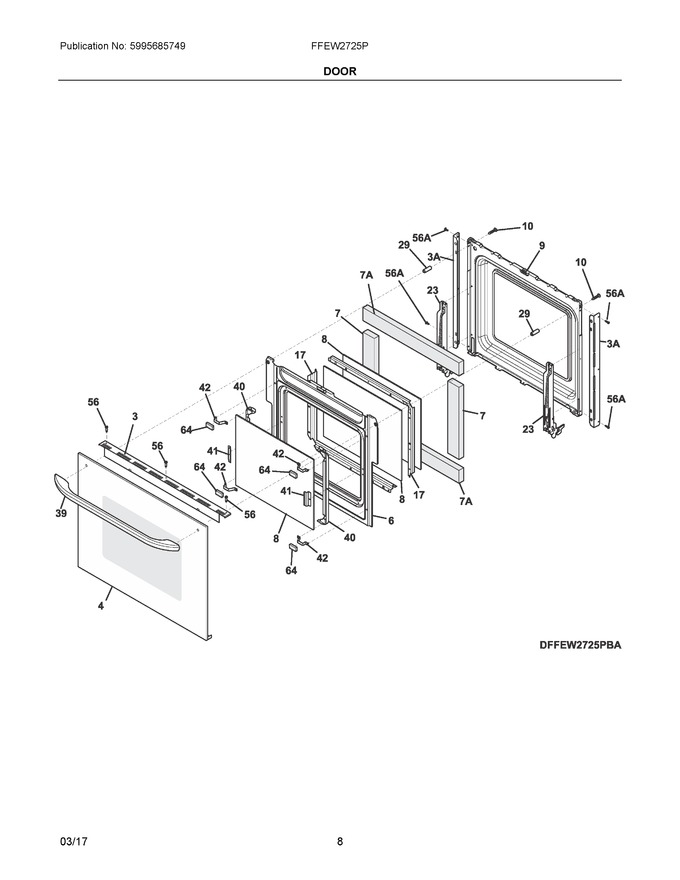

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	139023601		Trim, Oven Door, Black, Upper				$ 47.78
4	139039576		Glass Assembly, Outer, White, W/lower Trim   (Replaces: 139039509)				$ 293.58
6	139014203		Baffle, Door		Appelez-nous	-
7	318372017		Insulation, Door				$ 16.30
8	139085803		Glass, Oven Door, Heat Barrier, Hb1   (Replaces: 318212252)			Immediately	$ 108.45
9	139002904		Liner, Oven Door		Appelez-nous	-
10	808190201		Screw, Handle Mtg., (2)				$ 20.48
17	318264735		Spacer, Glass, (2)				$ 64.49
23	316575917		Hinge, Oven Door, Red				$ 67.33
29	139023400		Spacer, Door Handle, (2)				$ 20.48
39	318919400		Handle, Door, White				$ 161.60
40	318242702		Bracket, Glass Holder, Door, (2)				$ 19.72
41	318370602		Bracket, Glass Panel, (2)				$ 13.65
42	318382302		Bracket, Glass Retainer, (4)				$ 50.81
56	5303311306		Screw, 8-18 X 0.375		Appelez-nous	-
64	318165800		Spacer, Glass, Foam				$ 17.72
3A	139014401		Trim, Oven Door, Black, Side, (2), Vented				$ 32.62
56A	5303324184		Screw, Truss Head, #8-32 X 3/8   (Replaces: 809136201)			Immediately	$ 14.18
7A	318372018		Insulation, 20.5 X 2.375, 1" Thick, (2)				$ 14.18
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
