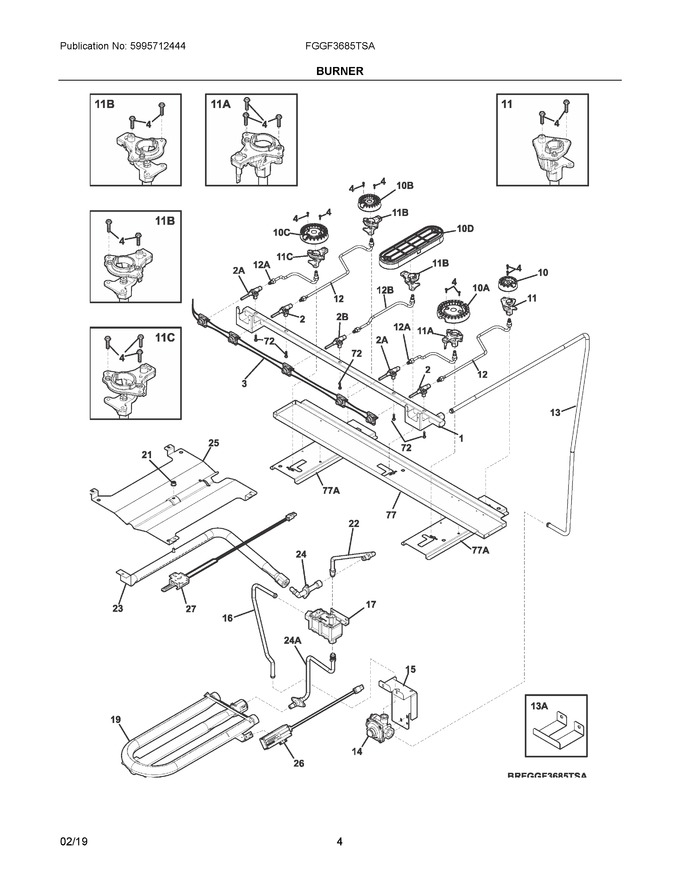

03 - Burner


04 - Body


05 - Main Top


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304509382		Manifold, Assembly, W/brackets		Appelez-nous	-
2	5304506548		Valve, Top Burner, Green Stem, 850btu			Immediately	$ 82.66
3	5304509388		Harness Assembly, Ignitor, W/switches		Appelez-nous	-
4	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 15.17
10	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
11	316540800		Ignitor/orifice Assy., Top Burner, 5k, W/holder				$ 11.20
12	807843801		Tube, Burner, Lr/rr		Appelez-nous	-
13	5304509392		Tube, Manifold, To Regulator		Appelez-nous	-
14	316091711		Regulator, Pressure   (Replaces: 316416705)			Immediately	$ 90.03
15	5304509394		Bracket, Regulator		Appelez-nous	-
16	5304509393		Tube, Regulator		Appelez-nous	-
17	5303210798		Valve, Safety			Immediately	$ 587.56
19	5304509403		Burner, Bake		Appelez-nous	-
21	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.41
22	318305250		Tube, Broil Supply		Appelez-nous	-
23	316404302		Burner, Broiler				$ 104.18
24	316409703		Elbow, Mixer				$ 138.70
25	316401301		Baffle, Broil Burner				$ 173.57
26	5304509376		Ignitor, Bake Burner		Appelez-nous	-
27	5303935066		Ignitor, Broil/bake Burner   (Replaces: 5304515072)			Immediately	$ 59.58
56	5303311306		Screw, 8-18 X 0.375		Appelez-nous	-
72	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
77	5304509409		Brace, Orifice Support, Center		Appelez-nous	-
10A	316438400		Burner, Sealed, 18.2k			Immediately	$ 83.42
10B	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
10C	316438600		Burner, Sealed, 14k			Immediately	$ 79.80
10D	316559300		Burner, Sealed, 9.5k, Oval				$ 177.19
11A	316543200		Ignitor/orifice Assy., Top Burner, 18k, W/holder				$ 13.61
11B	316540700		Ignitor/orifice Assy., Top Burner, 9.5k, W/holder				$ 11.15
11C	316543206		Ignitor/orifice Assy., Top Burner, 14k, W/holder				$ 146.71
12A	807843802		Tube, Burner, Lf/rf		Appelez-nous	-
12B	807843803		Tube, Burner, Center		Appelez-nous	-
13A	5304509404		Plate, Manifold Tube, Closure		Appelez-nous	-
24A	5304509399		Tube, Mixer, Bake Burner		Appelez-nous	-
2A	5304507282		Valve, Top Burner, White Stem, 1500btu   (Replaces: 5304506550)			Immediately	$ 53.85
2B	5304506551		Valve, Top Burner, Pink Stem, 2500btu				$ 61.43
77A	5304509410		Brace, Orifice Support, Side		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5304509373		Lp Conversion, Kit				$ 105.42
NI	5304509416		Harness, Ignition, Spark Module, To Ignitors		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	5303289910		Screw, Truss Sqdr, 8a X 1				$ 5.67
