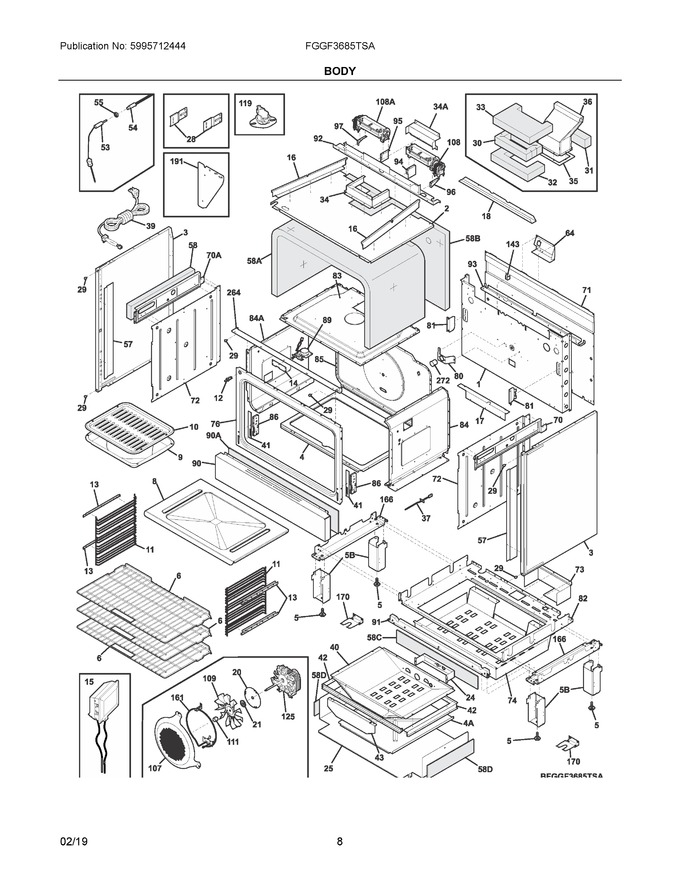

04 - Body


05 - Main Top


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304509380		Panel, Main Back		Appelez-nous	-
2	807413801		Shield, Top Insulation		Appelez-nous	-
3	807310002		Panel, Bodyside, Black		Appelez-nous	-
4	318364136		Liner, Oven Bottom		Appelez-nous	-
5	318175506		Screw, Leveling				$ 38.28
6	808713929		Rack Assembly, Ladder, Nickel, W/handle		Appelez-nous	-
8	318290560		Panel, Oven, Bottom		Appelez-nous	-
9	316081902		Pan, Broiler, Slate Blueoptional Access0ry				$ 83.42
10	316082002		Insert, Broiler Pan, Slate Blueoptional Access0ry				$ 81.14
11	808713925		Ladder Assembly, Kit, Nickel, W/2 Ladders		Appelez-nous	-
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
13	318603922		Bracket, Ladder Mtg., Slate Blue, (4)		Appelez-nous	-
14	5304509362		Bracket, Lock Motor, Black		Appelez-nous	-
15	139001800		Lamp Assembly, Halogen, 26" Harness, W/g9 40w Bulb				$ 124.22
16	808365702		Bracket, Cooling, (2)		Appelez-nous	-
17	5304509363		Bracket, Air Controller		Appelez-nous	-
18	5304509407		Bracket, Flow Guide, (2)				$ 65.21
20	318389400		Plate, Retainer				$ 16.21
21	318389000		Seal, Ring				$ 22.75
24	5304509398		Bracket, Mixer Valve		Appelez-nous	-
25	5304509360		Shield, Heat, Lower		Appelez-nous	-
28	808755702		Bracket, Lower Body, Side, (2)		Appelez-nous	-
29	316517600		Bumper, Front, Main				$ 12.05
30	807389201		Insulation, Flue		Appelez-nous	-
31	809083201		Insulation, Flue, Rear		Appelez-nous	-
32	809083202		Insulation, Flue, Lower		Appelez-nous	-
33	809083203		Insulation, Flue, Upper		Appelez-nous	-
34	808365801		Sheild, Flue		Appelez-nous	-
35	318291303		Seal, Flue Cavity   (Replaces: 318291301)		Appelez-nous	-
36	807413101		Flue, Assembly		Appelez-nous	-
37	5304504897		Sensor, Oven Temp Probe			Immediately	$ 48.13
39	5304534000		Cord, Electric Power, Black   (Replaces: 5304509199)			Immediately	$ 33.37
40	5304509395		Box, Bake Burner		Appelez-nous	-
41	318366603		Spacer, Front Frame   (Replaces: 318366601)		Appelez-nous	-
42	5304509396		Spacer, Burner Box, (2)		Appelez-nous	-
43	5304509408		Shield, Burner, Front		Appelez-nous	-
53	5304504202		Probe, Meat Temp, Red			Immediately	$ 106.19
54	316536907		Receptacle, Probe		Appelez-nous	-
55	316247700		Nut, Mounting				$ 18.20
57	5304509355		Shield, Heat, Body Side, (2)		Appelez-nous	-
58	5304508550		Insulation, Oven Wrapper, Extensions		Appelez-nous	-
64	5304509413		Bracket, Cord		Appelez-nous	-
70	807309401		Shield, Insulation, Rh Top		Appelez-nous	-
71	5304509377		Panel, Lower, Rear		Appelez-nous	-
72	5304509411		Shield, Insulation, Side, (2)				$ 67.33
73	5304509397		Shield, Heat, Rear		Appelez-nous	-
74	5304509402		Shield, Heat, Mid		Appelez-nous	-
76	318364904		Front, Oven, Slate Blue		Appelez-nous	-
80	318364800		Plate, Oven Mtg		Appelez-nous	-
81	318373700		Bracket, Oven, (2)		Appelez-nous	-
82	318258785		Shield, Insulation, Lower		Appelez-nous	-
83	318364256		Liner, Oven Top		Appelez-nous	-
84	318364381		Liner, Oven Side, Slate Blue, Rh		Appelez-nous	-
85	318364481		Liner, Oven Back		Appelez-nous	-
86	318241406		Receptacle, Hinge, (2)				$ 75.83
89	139021302		Motor, Latch Assy., 2 Pole				$ 147.56
90	807176601		Panel, Kickplate, Stainless		Appelez-nous	-
91	318376300		Bracket, Reinforcement		Appelez-nous	-
92	5304509364		Bracket, Fan Support		Appelez-nous	-
93	5304509400		Bracket, Fan Support		Appelez-nous	-
94	5304509370		Support, Fan, Rh Lower		Appelez-nous	-
95	5304509371		Support, Fan, Lh Lower		Appelez-nous	-
96	5304509357		Bracket, Fan, Rh Lower		Appelez-nous	-
97	5304509358		Bracket, Fan, Lh Lower		Appelez-nous	-
107	318906603		Cover, Fan, Slate Blue		Appelez-nous	-
108	5304509359		Motor, Blower, Rh		Appelez-nous	-
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
119	318578506		Thermostat, Safety, 105c			Immediately	$ 58.19
125	5304463302		Motor, Fan   (Replaces: 318398201)			Immediately	$ 259.95
143	318172904		Support, Wire		Appelez-nous	-
161	318255504		Element, Convection, 350 W				$ 97.07
166	318352550		Bracket, Leveling Leg, (2), Reinforcement		Appelez-nous	-
170	316112007		Anti Tip Kit, Assy, 36", W/template		Appelez-nous	-
191	5304508570		Bracket, Stiffening, Lower		Appelez-nous	-
264	5304509406		Trim, Vent, Black		Appelez-nous	-
272	318249408		Tube, Protector		Appelez-nous	-
108A	5304509372		Motor, Blower, Lh		Appelez-nous	-
34A	5304509356		Shield, Flue, Rear		Appelez-nous	-
4A	318939600		Shield, Heat, Burner Cover		Appelez-nous	-
58A	5304508559		Insulation, Oven Wrapper		Appelez-nous	-
58B	808122502		Insulation, Oven Back		Appelez-nous	-
58C	5304509401		Insulation, Heat Shield, Mid		Appelez-nous	-
58D	809083104		Insulation, Shield, Lower, (2)		Appelez-nous	-
5B	807309301		Bracket, Leveling Leg, (4)		Appelez-nous	-
70A	807309402		Shield, Insulation, Lh Top		Appelez-nous	-
84A	318364376		Liner, Oven Side, Slate Blue, Lh		Appelez-nous	-
90A	809083101		Insulation, Kick Plate		Appelez-nous	-
NI	5303289910		Screw, Truss Sqdr, 8a X 1				$ 5.67
NI	5304509389		Harness, Wiring, Mdl Ads		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5304509390		Harness, Wiring, Main		Appelez-nous	-
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	5304508569		Clip, Bodyside, Alignment		Appelez-nous	-
NIA	318373001		Bracket, Receptacle, Temp Probe				$ 9.87
NIA	5304481623		Screw, #10-32x1/2				$ 9.61
NIA	318946400		Bulb, Halogen, G9, 40w, 120v			Immediately	$ 49.32
NIA	154079601		Nut, Bracket Mtg, (12)   (Replaces: 5304463707)				$ 0.41
NIB	5303310510		Screw, 10-24 X 0.625				$ 14.18
