01 - Cover Sheet

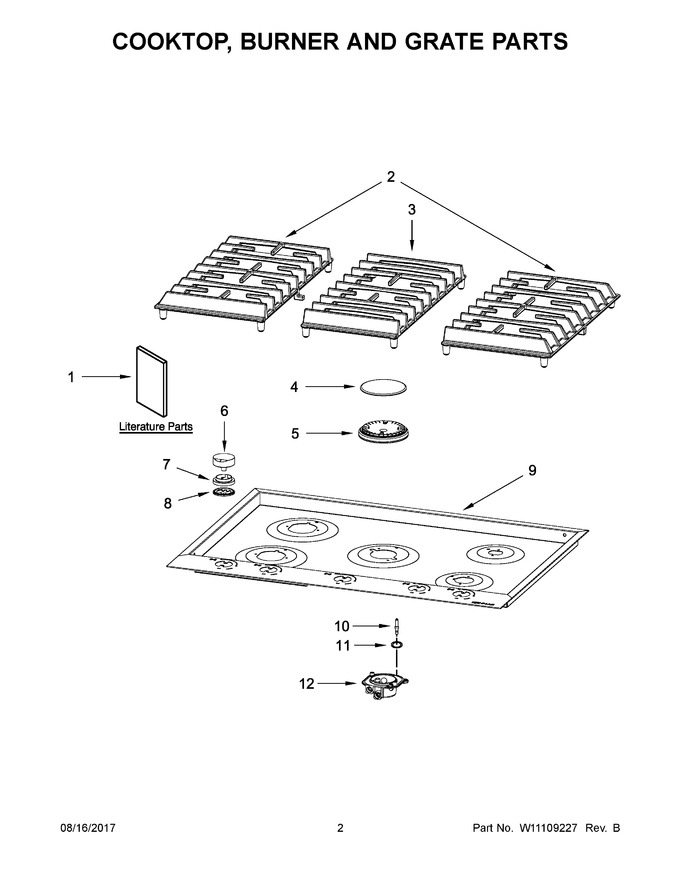

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11032277 | Installation Instructions |
|
- | |||||
| 2 | W10689385 | Grate, Burner (side) (Replaces: W11111843) |
|
$ 514.03 | |||||
| 3 | W10689386 | Grate, Burner (center) (Replaces: W11111845) |
|
Immediately | $ 345.13 | ||||
| 4 | W10691232 | Cap, Burner (black (large) (left Front, Left Rear & Right Front)) |
|
Immediately | $ 148.97 | ||||
| 5 | W11043462 | Base, Burner (large) (left Front, Left Rear & Right Front) |
|
Immediately | $ 185.04 | ||||
| 6 | W11045335 | Knob (Replaces: W11042532) |
|
Immediately | $ 75.58 | ||||
| 7 | W10618500 | Bezel, Knob (stainless) |
|
Immediately | $ 140.56 | ||||
| 8 | W11042557 | Bezel, Illuminator |
|
Immediately | $ 54.41 | ||||
| 9 | W11781922 | Cooktop, Main (Replaces: W11043522) |
|
$ 1,116.19 | |||||
| 10 | WPW10571488 | Electrode (360mm) (left Front) (Replaces: W10571488) |
|
$ 48.46 | |||||
| 11 | W10571930 | Clip, Electrode |
|
Immediately | $ 21.71 | ||||
| 12 | WPW10571492 | Holder, Orifice (155 Mm) (left Front & Right Front) (Replaces: W10571492) |
|
$ 73.14 | |||||
| 10A | W10692364 | Electrode (500mm) (left Rear) |
|
$ 122.83 | |||||
| 10B | W10692365 | Electrode (360mm) (center) (Replaces: W11112340) |
|
$ 74.80 | |||||
| 10C | W10617810 | Electrode (250mm) (right Front) |
|
Immediately | $ 69.97 | ||||
| 10D | WPW10571489 | Electrode (450mm) (right Rear) (Replaces: W10571489) |
|
$ 50.75 | |||||
| 12A | WPW10571493 | Holder, Orifice (170mm) (left Rear) (Replaces: W10571493) |
|
$ 72.47 | |||||
| 12B | W10759294 | Holder, Orifice (dual, 195mm) (center) (Replaces: W11109151) |
|
$ 267.62 | |||||
| 12C | W10691684 | Holder, Orifice (s2) (right Rear) |
|
$ 83.77 | |||||
| 1A | W11032276 | Use And Care Guide |
|
- | |||||
| 1B | W11032278 | Lp Conversion Instructions |
|
- | |||||
| 4A | W10691282 | Cap, Burner (black (dual) (center)) |
|
$ 137.65 | |||||
| 4B | W10691229 | Cap, Burner (black (small) (right Rear)) |
|
$ 91.07 | |||||
| 4C | W10691233 | Cap, Burner (black (melt Small Burner)) |
|
$ 319.72 | |||||
| 5A | W11043467 | Base, Burner (dual) (center) |
|
$ 323.60 | |||||
| 5B | W11043517 | Base, Burner (small) (right Rear) |
|
$ 125.17 | |||||
| NI | W10686634 | Kit, Orifice Lp Conversion |
|
$ 274.42 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
