01 - Cover Sheet
02 - Cooktop, Burner And Grate Parts

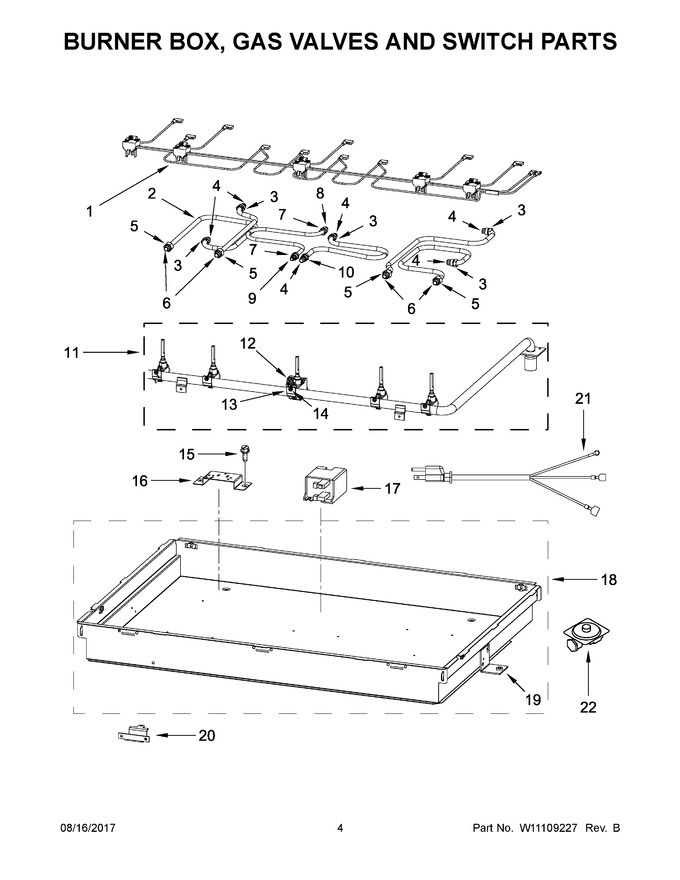

03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11043536 | Harness, Switch And Light |
|
Immediately | $ 396.96 | ||||
| 2 | W10691687 | Tubing, Burner (left Front) (Replaces: W11112367) |
|
- | |||||
| 3 | W10575398 | Nut, Injector |
|
- | |||||
| 4 | W10575399 | Ferrule, Injector |
|
- | |||||
| 5 | 8190918 | Nut, Compression |
|
- | |||||
| 6 | 8190917 | Sleeve, Compresson |
|
- | |||||
| 7 | W10692377 | Nut, Compression 1/4" Tubing |
|
- | |||||
| 8 | W10845603 | Ferrule, Dual Injector |
|
- | |||||
| 9 | W10692371 | Sleeve, Compression 1/4" Tubing |
|
- | |||||
| 10 | W10692372 | Nut, Compression |
|
- | |||||
| 11 | W11043539 | Assembly, Manifold |
|
$ 500.09 | |||||
| 12 | W11043516 | Valve, Gas (single) (left Front, Left Rear & Right Front) |
|
$ 243.30 | |||||
| 13 | W10617475 | Bracket, Valve |
|
- | |||||
| 14 | W10617476 | Screw, Valves |
|
- | |||||
| 15 | W10626012 | Screw |
|
- | |||||
| 16 | W10618476 | Bracket, Orifice Holder (single Burner) (left Front, Left Rear, Right Front, Right Rear) (Replaces: W11108772) |
|
- | |||||
| 17 | W11601369 | Spark Module (Replaces: 8190929) |
|
Immediately | $ 60.62 | ||||
| 18 | W11043538 | Assembly, Burner Box |
|
- | |||||
| 19 | 8190978 | Bracket, Mounting |
|
$ 81.04 | |||||
| 20 | W11042981 | Bracket, Control Panel |
|
- | |||||
| 21 | W10392007 | Cord, Power (Replaces: W10618502) |
|
$ 96.25 | |||||
| 22 | WPW10569189 | Regulator, Gas (Replaces: W10569189) |
|
Immediately | $ 226.67 | ||||
| 12A | W11043379 | Valve, Gas (dual) (center) |
|
$ 259.94 | |||||
| 12B | W11043537 | Valve, Gas (single) (right Rear) |
|
$ 247.63 | |||||
| 16A | W10691683 | Bracket, Orifice Holder (dual Burner) (center) (Replaces: W11108773) |
|
- | |||||
| 2A | W10691688 | Tubing, Burner (left Rear) (Replaces: W11112368) |
|
- | |||||
| 2B | W11112370 | Tubing, Burner (center Left) |
|
- | |||||
| 2C | W11112371 | Tubing, Burner (center Right) |
|
- | |||||
| 2D | W10692352 | Tubing, Burner (right Front) (Replaces: W11112372) |
|
- | |||||
| 2E | W10691692 | Tubing, Burner (right Rear) (Replaces: W11112373) |
|
$ 102.96 | |||||
| NI | W10355010 | Accessories, Cleaner, Kitchen & Appliance |
|
- | |||||
| NI | W10355016 | Accessories, Cleaner, Stainless Steel |
|
- | |||||
| NI | 31617 | Accessories, Cleaner, Gas Grate & Drip Pan |
|
- |
