SELECT A DIAGRAM

01 - Cover Sheet

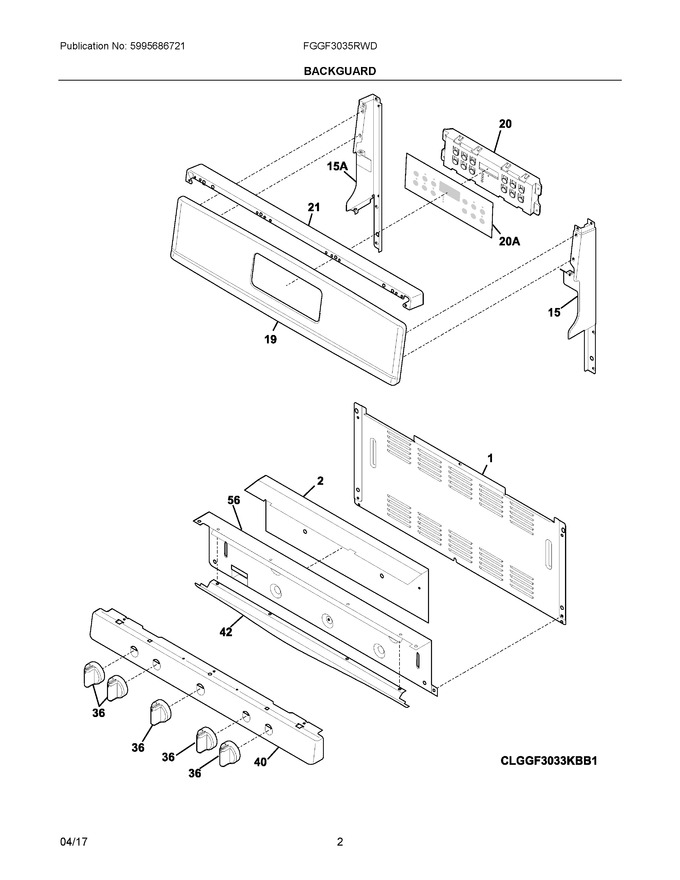

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316557600		Shield, Rear Wall				$ 70.04
2	316497601		Shield, Backguard, Inner				$ 49.40
15	807437105		End Cap, Backguard, White, Rh				$ 20.27
19	316572403		Panel, Backguard, White				$ 200.18
20	5304509231		Clock, Es330isb, Black				$ 165.83
21	316546606		Cap, Backguard, White, Top				$ 61.85
36	316545007		Knob, Top Valve, White, (4)			Immediately	$ 47.03
40	316605349		Panel, Manifold, White				$ 65.94
42	316416205		Trim, Extrusion, Gray   (Replaces: 316416201)				$ 51.57
56	316230705		Shield, Backguard, Inner		Appelez-nous	-
15A	807437106		End Cap, Backguard, White, Lh				$ 18.95
20A	316419341		Overlay, Clock, White, Es330isb		Appelez-nous	-
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
