SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body

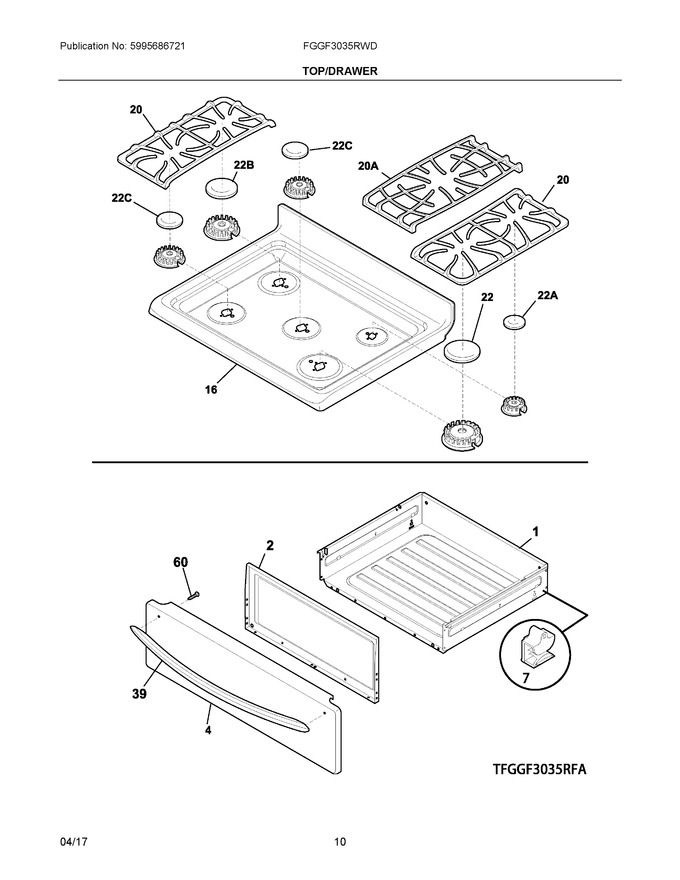

05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility   (Replaces: 316408705)			Immediately	$ 110.61
2	5304527988		Liner, Drawer   (Replaces: 316403200)			Immediately	$ 26.54
4	5304513124		Panel, Drawer, White   (Replaces: 5304492111)				$ 90.86
7	316407402		Glide, Drawer, Rear   (Replaces: 316407400)			Immediately	$ 9.86
8	5304490938		Glide, Drawer, Front			Immediately	$ 14.41
16	316610013		Main Top, White			Immediately	$ 250.26
20	807327101		Grate, Burner, Black, Side, (2)				$ 243.81
22	5304508468		Cap, 17k Burner, Black   (Replaces: 316262104)				$ 49.45
39	316544501		Handle, Door, White			Immediately	$ 131.57
60	5303288572		Screw-handle Mtg		Appelez-nous	-
20A	807412601		Grate, Burner, Black, Center				$ 240.26
22A	5304508441		Cap, 5k Burner, Matte, Black   (Replaces: 316261704)			Immediately	$ 35.04
22B	5304508443		Cap, 14k Burner, Matte, Black   (Replaces: 316262004)			Immediately	$ 46.01
22C	5304508442		Cap, 9.5k Burner, Matte, Black   (Replaces: 316261804)			Immediately	$ 36.55
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18
NI	316260800		Screw-shoulder, W/shoulder, #8-18 X 1/2				$ 13.46
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
