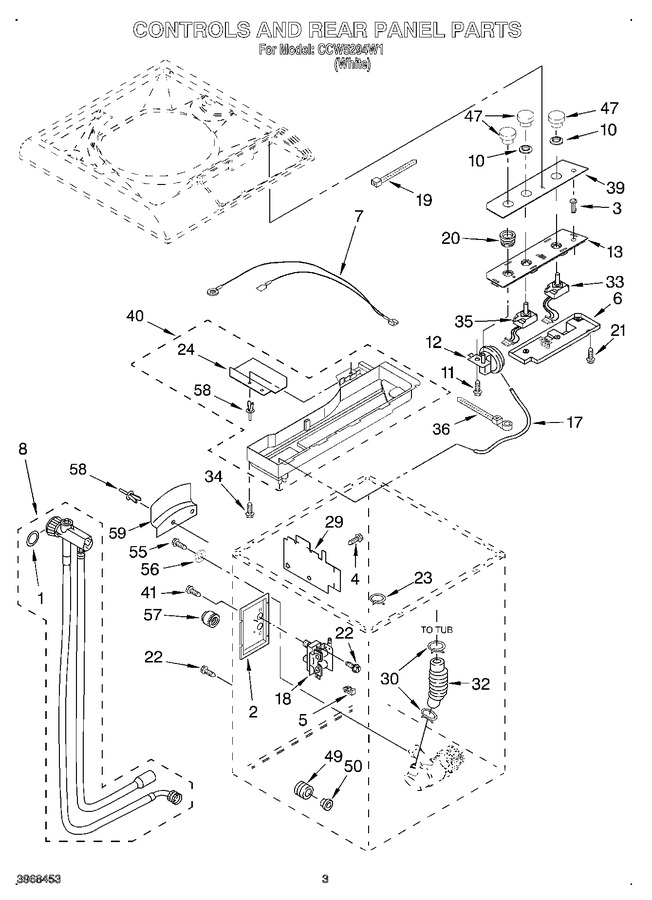

CCW5294W1 | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	WP16123	Washer, Rubber (Replaces: 16123)			$ 6.93
2	3935155	Bracket-valve	Appelez-nous	-
3	3935357	Extension, Start-pause	Appelez-nous	-
4	3429189	Screw	Appelez-nous	-
5	3935875	Clip, Harness	Appelez-nous	-
6	3968303	Timer/control Board	Appelez-nous	-
7	3935929	Jumper-wire	Appelez-nous	-
8	W10849778	Hose Coupler Assembly (includes Item No.1) (Replaces: 3966810)			$ 271.76
10	3935353	Seal	Appelez-nous	-
11	3935602	Screw, Switch Mtg.	Appelez-nous	-
12	3966789	Switch, Water Level			$ 81.22
13	3967605	Bracket, Control (must Order No. 3 & No. 39.)	Appelez-nous	-
17	3969125	Hose, Pressure Switch	Appelez-nous	-
18	3967755	Valve, Water Mixing			$ 93.95
19	WP2205813	Wire, Tie (2) (Replaces: 3429563)			$ 6.95
20	3935354	Seal, Pressure Switch	Appelez-nous	-
21	3934036	Screw, Control Board (3)	Appelez-nous	-
22	WP3400094	Screw (Replaces: 3966200)			$ 7.14
23	661581	Clamp, Hose	Appelez-nous	-
24	3935672	Shield, Harness	Appelez-nous	-
29	3967286	Shield, Water Valve	Appelez-nous	-
30	WP616099	Clamp, Hose (Replaces: 370448)		Immediately	$ 7.03
32	3429900	Hose, Pump To Tub			$ 22.54
33	3966207	Switch, Cycle Selection	Appelez-nous	-
34	3935634	Screw, Top Shield (3)	Appelez-nous	-
35	3966208	Switch, Water Temperature			$ 14.29
36	WP2205813	Wire Tie (Replaces: 3429563)			$ 6.95
39	3935528	Panel, Console	Appelez-nous	-
40	3935627	Top, Shield Assy.	Appelez-nous	-
41	3934148	Screw, 10-16 X 1/2	Appelez-nous	-
47	3968519	Knob, Temperature & Cycle Selection	Appelez-nous	-
49	3428526	Grommet, Pump (3)	Appelez-nous	-
50	3428933	Spacer, Pump (2)	Appelez-nous	-
55	3400038	Screw	Appelez-nous	-
56	3429923	Washer	Appelez-nous	-
57	70136	Cap, Threaded (Replaces: 356054)		Immediately	$ 3.17
58	3430186	Rivet (2)	Appelez-nous	-
59	356499	Bracket, Hose Storage			$ 32.28
