Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3428670 Tube & Dispenser Assembly Appelez-nous -
2 3428391 Filter Appelez-nous -
3 W11700520 Screw   (Replaces: 3400061) Special Order $ 12.24

4 3428392 Agitator Appelez-nous -
5 3968262 Tub Ring Appelez-nous -
6 3428186 Basket Appelez-nous -
7 WP3969019 Vacuum Break Asm   (Replaces: 3969019) Special Order $ 4.91

8 3968473 Tub & Inlet Asy. Special Order $ 470.43

9 WP353244 Hose, Pressure Switch   (Replaces: 3430159) In-Stock Immediately $ 53.94

10 3430339 Hose, Bleach Special Order $ 16.39

11 WP3400872 Screw, 8-18 X 3/8 (2)   (Replaces: 3400872) Special Order $ 6.95

12 WP596669 Clamp, Hose   (Replaces: 370452) In-Stock Immediately $ 7.56

14 3428814 Shield, Tub/motor Appelez-nous -
15 3968185 Clamp Appelez-nous -
18 3934565 Balance Ring Appelez-nous -
19 3966238 Hose, Tub Overflow Special Order $ 6.93

20 WP3400872 Screw (2)   (Replaces: 3429682) Special Order $ 6.95

21 WP3968381 Seal   (Replaces: 3968381) Special Order $ 26.59


    View Diagram in Separate Window     Print Icon   Print Part List

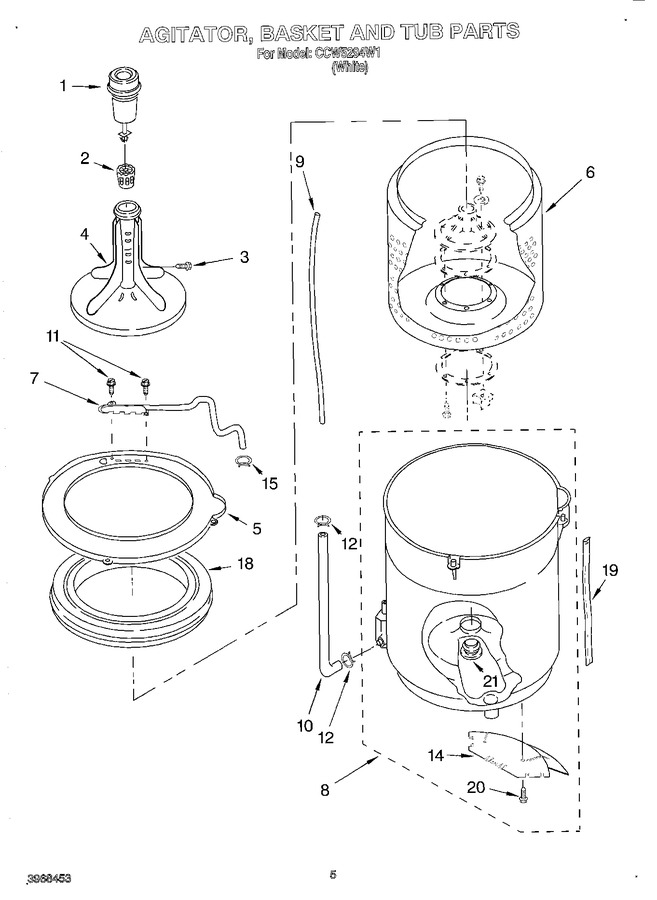

Diagram for CCW5294W1
