SELECT A DIAGRAM
01 - Cover Sheet

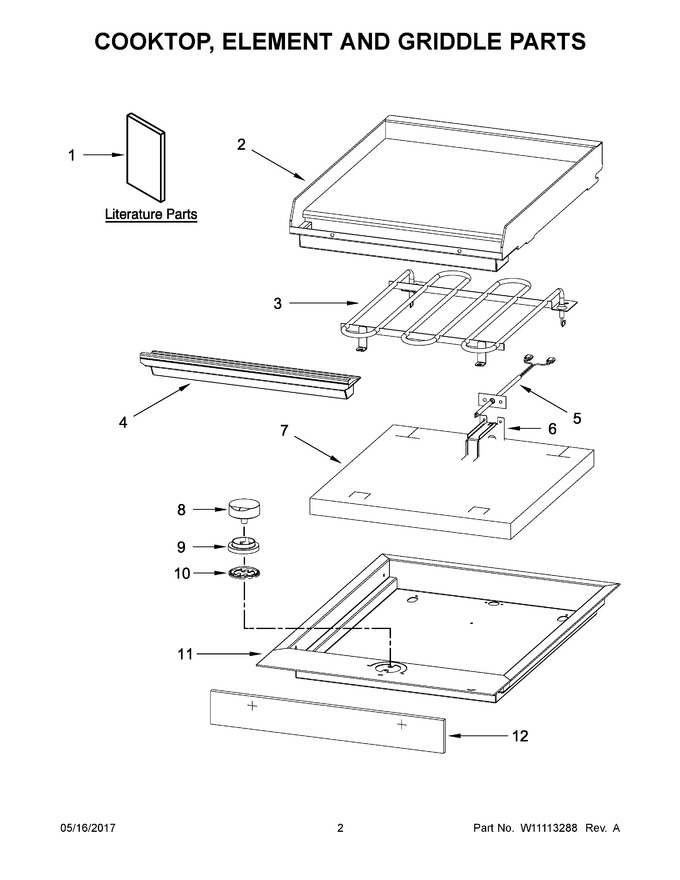

02 - Cooktop, Element And Griddle Parts
03 - Burner Box And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11032795 | Installation Instructions |
|
- | |||||
| 2 | W11092660 | Plate, Griddle |
|
- | |||||
| 3 | W11095649 | Element (Replaces: W11092668) |
|
- | |||||
| 4 | W11092679 | Drip Tray, Grease |
|
- | |||||
| 5 | WPW10131825 | Sensor (Replaces: W10131825) |
|
Immediately | $ 86.25 | ||||
| 6 | W11093287 | Bracket, Sensor |
|
- | |||||
| 7 | W11706805 | Insulation, Griddle (Replaces: W11093313) |
|
- | |||||
| 8 | W11045335 | Knob (Replaces: W11042532) |
|
Immediately | $ 75.58 | ||||
| 9 | W10618500 | Bezel, Knob (stainless) |
|
Immediately | $ 140.56 | ||||
| 10 | W11042557 | Bezel, Illuminator |
|
Immediately | $ 54.41 | ||||
| 11 | W11095647 | Cooktop (Replaces: W11093278) |
|
- | |||||
| 12 | W11688574 | Insulation, Control (Replaces: W11093305) |
|
- | |||||
| 1A | W11032794 | Use And Care Guide |
|
- |
