01 - Cover Sheet
02 - Cooktop, Element And Griddle Parts

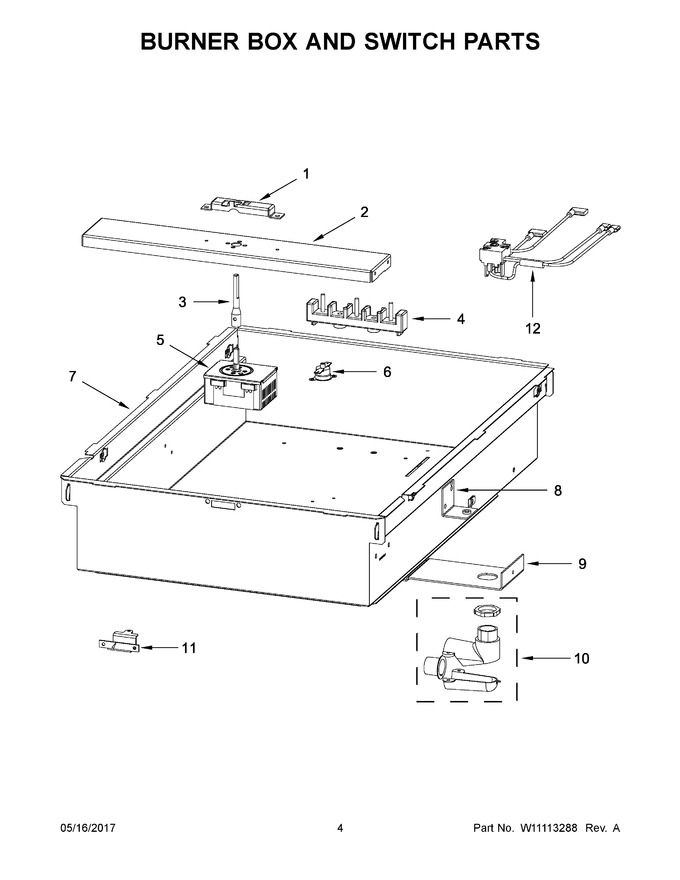

03 - Burner Box And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11093297 | Bracket, Lighting |
|
- | |||||
| 2 | W11093294 | Bracket, Control Mounting |
|
- | |||||
| 3 | W11095693 | Extension, Shaft (Replaces: W11093298) |
|
- | |||||
| 4 | W11092674 | Block, Terminal |
|
- | |||||
| 5 | W11095650 | Switch, Thermostat (Replaces: W11093286) |
|
- | |||||
| 6 | W11095696 | Thermostat (Replaces: W11093314) |
|
- | |||||
| 7 | W11092676 | Box, Burner |
|
- | |||||
| 8 | 8190978 | Bracket, Mounting |
|
$ 81.04 | |||||
| 9 | W11093293 | Bracket, Conduit |
|
- | |||||
| 10 | W11095695 | Connector, Conduit (Replaces: W11093301) |
|
- | |||||
| 11 | W11042981 | Bracket, Control Panel |
|
- | |||||
| 12 | W11043383 | Harness, Switch And Light |
|
$ 249.24 | |||||
| NI | 31617 | Accessories, Cleaner, Gas Grate & Drip Pan |
|
- | |||||
| NI | W11173757 | Accessories, Kit, Module Mounting Bridge (Replaces: W11031680) |
|
$ 380.07 | |||||
| NI | W11266073 | Bushing, Plastic (Replaces: W11093321) |
|
- | |||||
| NI | W11266058 | Conduit, Flex (Replaces: W11093317) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10355010 | Accessories, Cleaner, Kitchen & Appliance |
|
- | |||||
| NI | W10355016 | Accessories, Cleaner, Stainless Steel |
|
- |
