01 - Cabinet, Lower
02 - Cabinet, Upper
03 - Control Compartment
04 - Control Panel
05 - Door Latch, Upper And Lower
06 - Gas Components
07 - Oven Door
08 - Trim
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

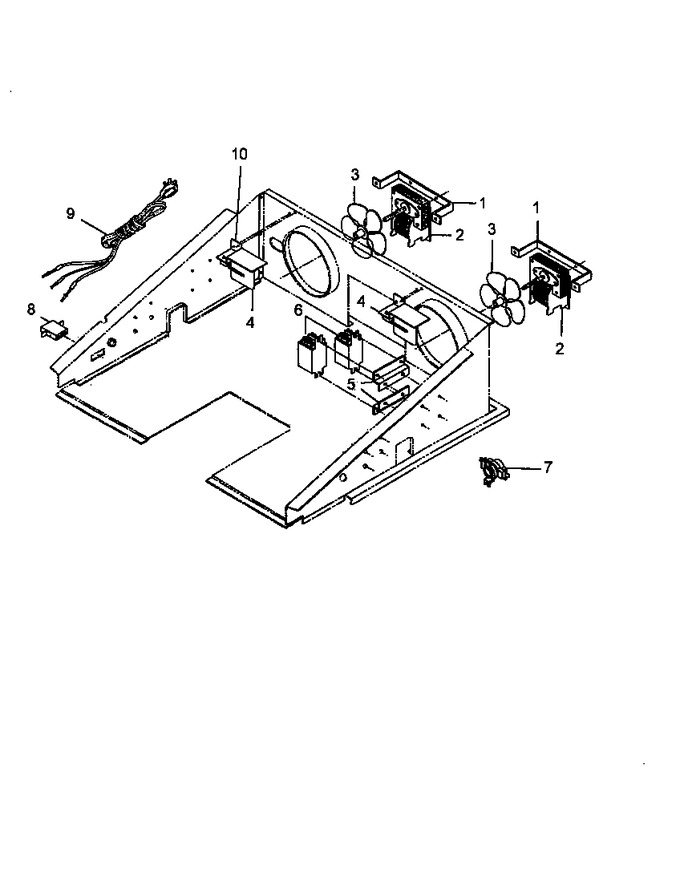

| 1 | Y0305242 | Bracket-motor Mount |
|
- | |||||
| 2 | Y0042226 | Fan Motor |
|
- | |||||
| 3 | Y0314548 | Blade, Fan |
|
- | |||||
| 4 | 0066207 | Sail Switch |
|
- | |||||
| 5 | 0054085 | Mtg. Bracket, Relay |
|
- | |||||
| 6 | Y0054074 | Relay |
|
- | |||||
| 7 | Y0042056 | Switch Fan Spdt |
|
- | |||||
| 8 | Y0042111 | Molex Recept |
|
- | |||||
| 9 | Y0054865 | Supply Cord |
|
- | |||||
| 10 | Y0052814 | Bracket, Switch |
|
- | |||||
| NI | Y0065084 | Wire Connector |
|
- | |||||
| NI | Y0091523 | Insulation, Esm |
|
- | |||||
| NI | Y0305243 | Grommet-fan |
|
- | |||||
| NI | M0282005 | Nut K (Replaces: Y0097887) |
|
$ 7.07 | |||||
| NI | Y0051941 | Sleeving |
|
- | |||||
| NI | 31750112 | Nut, Keps No.4-40 |
|
- | |||||
| NI | 31750005 | Washer, Flat 1/4 X 5/8 O.d. |
|
- | |||||
| NI | Y0314816 | Screw No.4-40x6.25 |
|
- |
