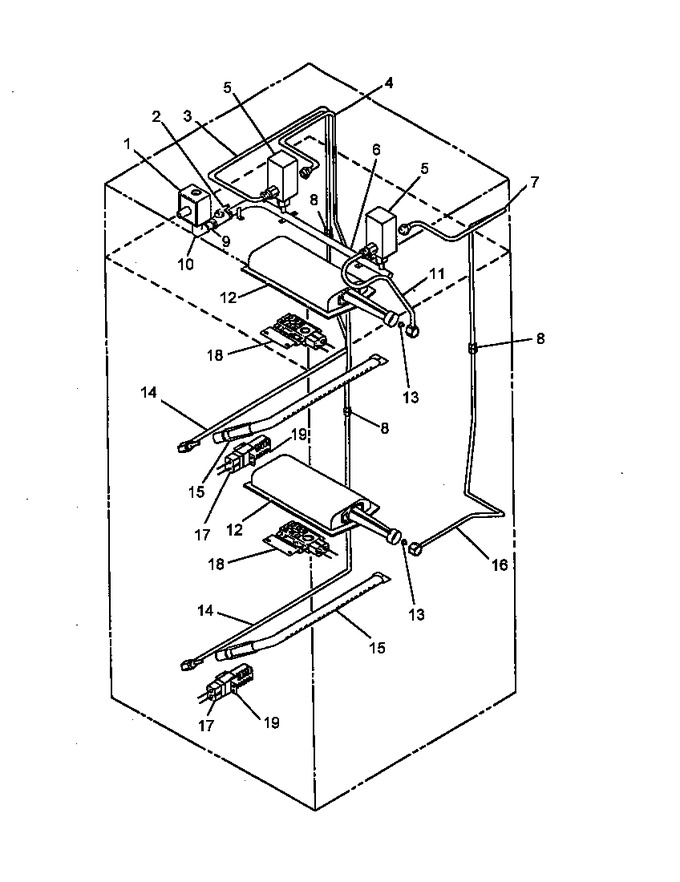

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0063684		Regulator-5``/10`` Side Inlet		Appelez-nous	-
2	Y0314271		Valve, Shut-off		Appelez-nous	-
3	0304099		Tubing, Gas Valve		Appelez-nous	-
4	0304098		Tubing-lower Union To Valve		Appelez-nous	-
5	Y0060750		Valve, Dual Thermal-gas		Appelez-nous	-
6	Y0060751		Manifold Assy.		Appelez-nous	-
7	Y0304097		Tubing-lower Union To Valve		Appelez-nous	-
8	Y0304566		Union Straight 3/8 To 3/8cc		Appelez-nous	-
9	Y0097320		Nipple-1/2``-pressure Regulator		Appelez-nous	-
10	Y0097408		Elbow, Pipe-1/2`` X 90 Degree		Appelez-nous	-
11	Y0054839		Tubing-upper Broil To Valve		Appelez-nous	-
12	Y0054070		Broil Burner Assy		Appelez-nous	-
13	Y0060042		Orifice, No.59 Lp		Appelez-nous	-
13	Y0060043		Orifice, No.52 Nat		Appelez-nous	-
14	Y0054834		Hood & Tubing Upper Bake		Appelez-nous	-
15	Y0060775		Burner, Bake (wall Oven)		Appelez-nous	-
16	Y0054837		Tubing-lower Burner To Union		Appelez-nous	-
17	Y0309155		Ignitor, Bake		Appelez-nous	-
18	Y0309156		Ignitor, Broil		Appelez-nous	-
19	Y0063757		Bracket, Igniter Mounting		Appelez-nous	-
NI	Y0309144		Ignitor, Bake/broil		Appelez-nous	-
