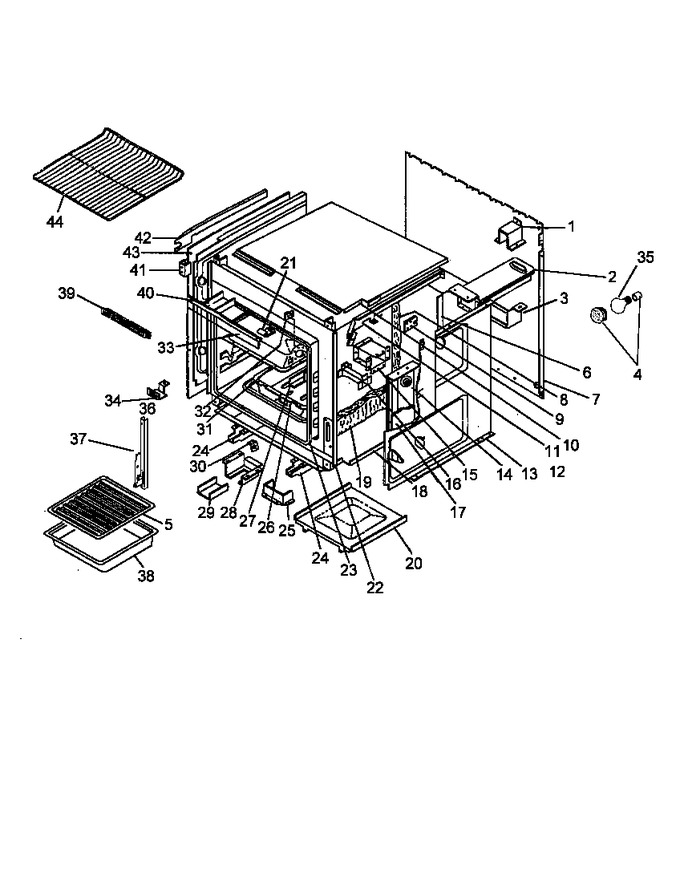

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0305717		Support, Rear Oven		Appelez-nous	-
2	0060811		Horizontal Flue		Appelez-nous	-
3	0060784		Retainer, Insul. Flue		Appelez-nous	-
4	WP74011278		Assy, Oven Light   (Replaces: 74011278)				$ 101.56
5	4396923		Grid, Broiler (cg)   (Replaces: 304451CG)			Immediately	$ 52.04
6	0305420		Retainer, Insulation-rear		Appelez-nous	-
7	Y0059743		Back Cabinet		Appelez-nous	-
8	Y0041113		Sub 41966, Insulation		Appelez-nous	-
9	Y0041017		Bracket, Oven Mounting-pyro		Appelez-nous	-
10	Y0060837		Oven Top, Lower Oven		Appelez-nous	-
11	0060835		Air Channel, Rt		Appelez-nous	-
12	Y00000000		See Note Not Used		Appelez-nous	-
13	Y0316868		Retainer, Insulation-side		Appelez-nous	-
14	0060819		Vertical, Air Duct		Appelez-nous	-
15	Y0060821		Venturi, Air Duct-top		Appelez-nous	-
16	Y0060787		Wire Protector		Appelez-nous	-
17	Y0054700		Insulation, Vertical Flue		Appelez-nous	-
18	0316866		Oven Bottom-lower		Appelez-nous	-
19	Y0054296		Insulation, 4``x20x80``		Appelez-nous	-
20	315521CG		Oven Bottom (cg)		Appelez-nous	-
21	Y0315022		Cover, Chip		Appelez-nous	-
22	Y00000000		See Note Main Front Frame -- (not Field Replaceable)		Appelez-nous	-
23	314936CG		Oven Shell		Appelez-nous	-
24	Y0060849		Runner, Base		Appelez-nous	-
25	0060823		Retainer, Insulation-orifice		Appelez-nous	-
26	Y0315387		Box, Lower Burner		Appelez-nous	-
27	Y0060752		Shield, Thermostat Bulb		Appelez-nous	-
28	Y0060814		Shield, Bake Orifice		Appelez-nous	-
29	Y0054275		Air Channel, Lower Bake		Appelez-nous	-
30	Y0060846		Bracket, Bake Orifice		Appelez-nous	-
31	Y0059415		Chamber Broil Burner		Appelez-nous	-
32	Y0063351		Capillary Hole Cover		Appelez-nous	-
33	0040405		Chip Cover Pyro Wo		Appelez-nous	-
34	Y0060766		Mtg. Bracket, Oven Burner		Appelez-nous	-
35	Y0042175		Bulb, Light		Appelez-nous	-
36	Y00000000		See Note Not Used		Appelez-nous	-
37	Y0315425		Assy, Oven Hinge Rt		Appelez-nous	-
37	Y0315426		Assy, Oven Hinge Lt				$ 50.99
38	4396923		Pan, Broiler (cg)   (Replaces: 314175CG)			Immediately	$ 52.04
39	0307826		Guide, Latch Handle		Appelez-nous	-
39	Y0042015		Latch Handle Guide Pyro		Appelez-nous	-
40	0054274		Air Channel, Upper Bake		Appelez-nous	-
41	Y0060838		Support, Oven Front		Appelez-nous	-
42	Y0060834		Air Channel, Lt		Appelez-nous	-
43	Y0315144		Panel, Side (double)		Appelez-nous	-
44	314762J		Rack, Oven 19 3/16`` X 16 1/2``		Appelez-nous	-
NI	0054930		Collar, Air Duct		Appelez-nous	-
NI	Y0097871		Nut, Pal 3/4-16 X 1.062		Appelez-nous	-
NI	0059596		Shield		Appelez-nous	-
NI	0054294		Baffle Almond		Appelez-nous	-
NI	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
